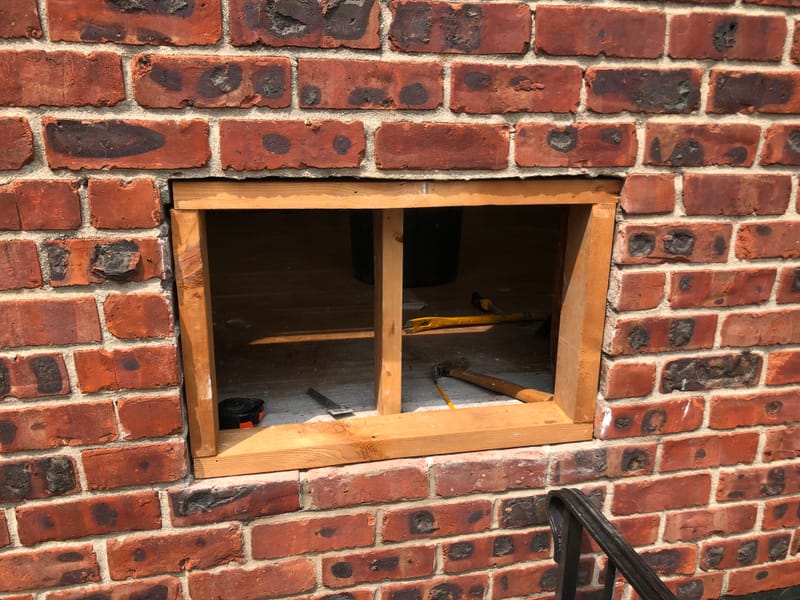

Next we removed the old air conditioning sleeves that were originally below the window. Window units are easier to remove for the winter months and make replacing much easier than the ones installed in sleeves.

Removing Old AC Sleeves

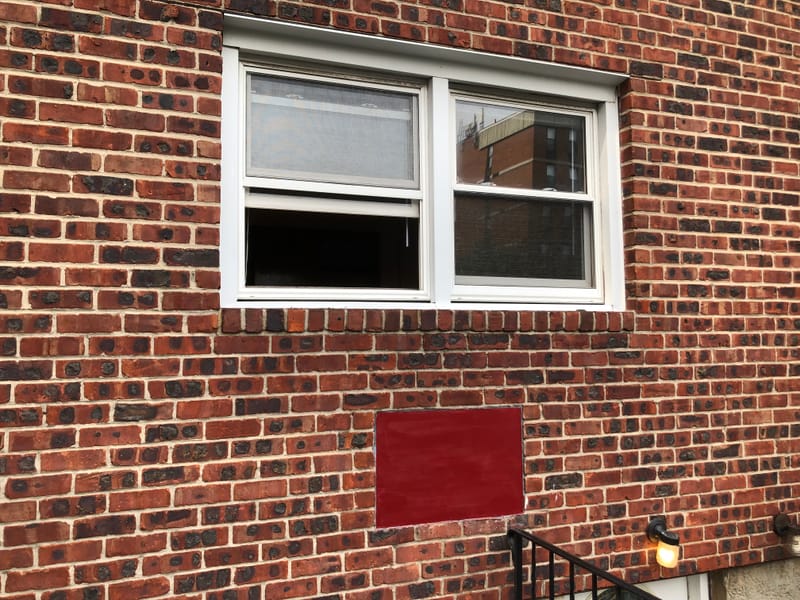

Once the framing was secured with cement screws, we put a painted plywood panel over it to blend into the brick exterior.

Plywood Panel Over Framing

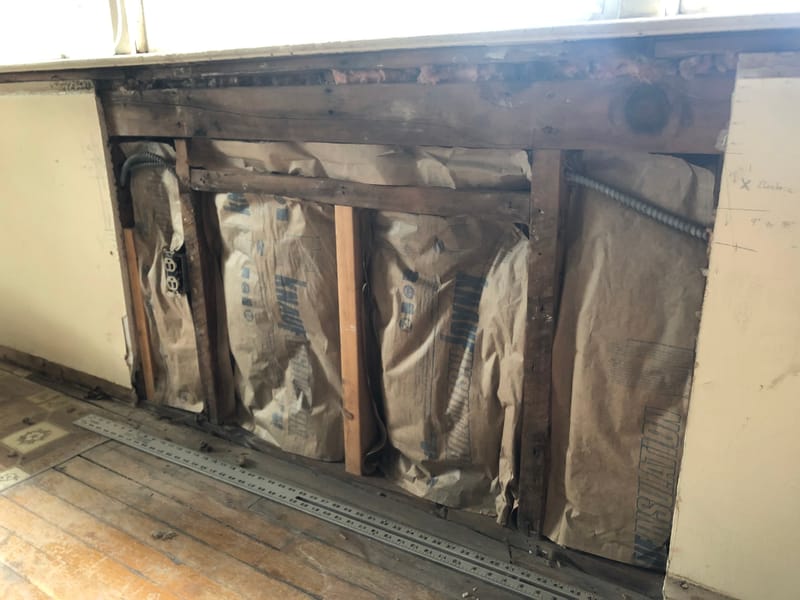

Behind that plywood panel, we filled the cavity with insulation to promote better temperature control.

Insulation Behind the Plywood Panel

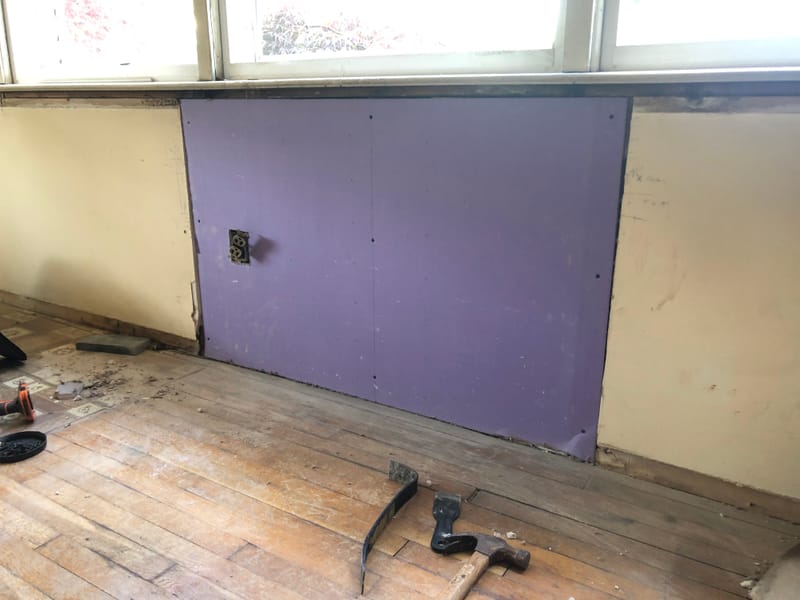

We then cut and installed a piece of drywall to cover the hole where the air conditioning sleeve was.

Drywall Covering the AC Sleeve Opening

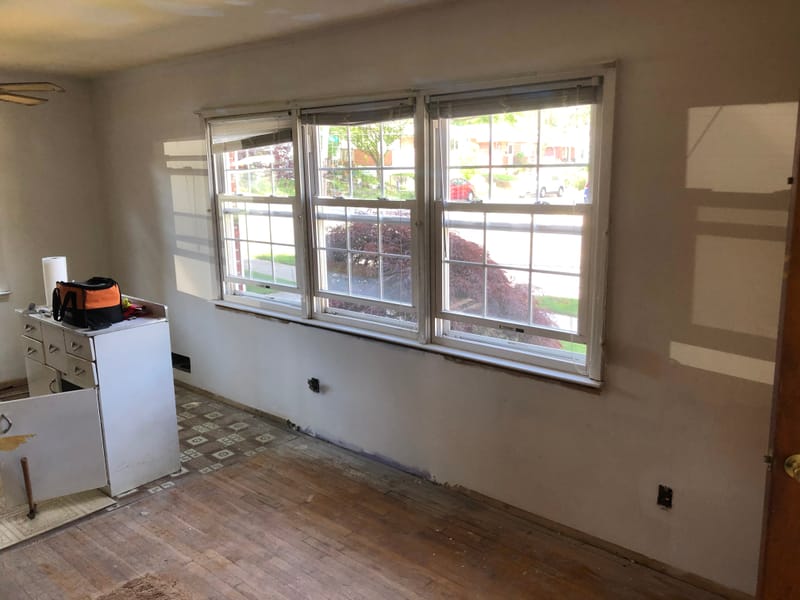

After a coat of primer you can barely tell where the wall repair was. It will look even better after paint.

Wall Repair After Primer

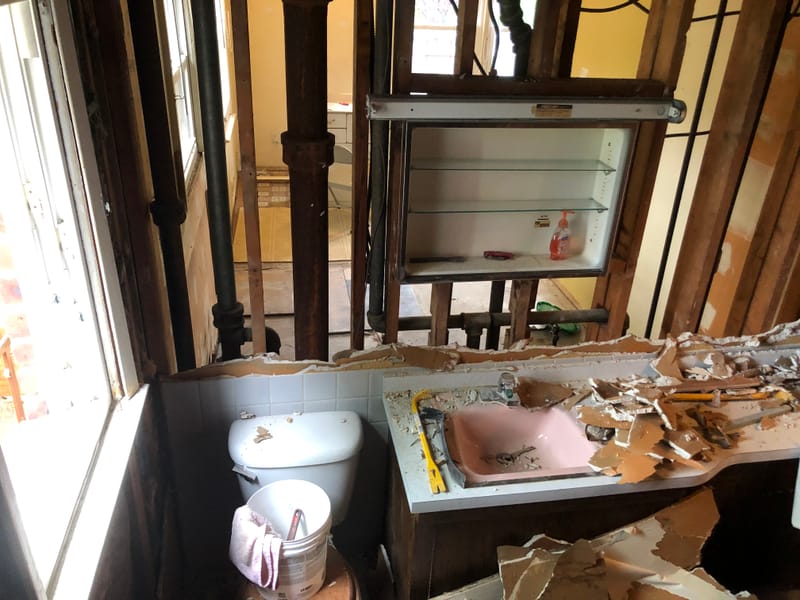

We had to use pry bars to remove the sheetrock and tiles from the studs.

Demolishing the Old Bathroom

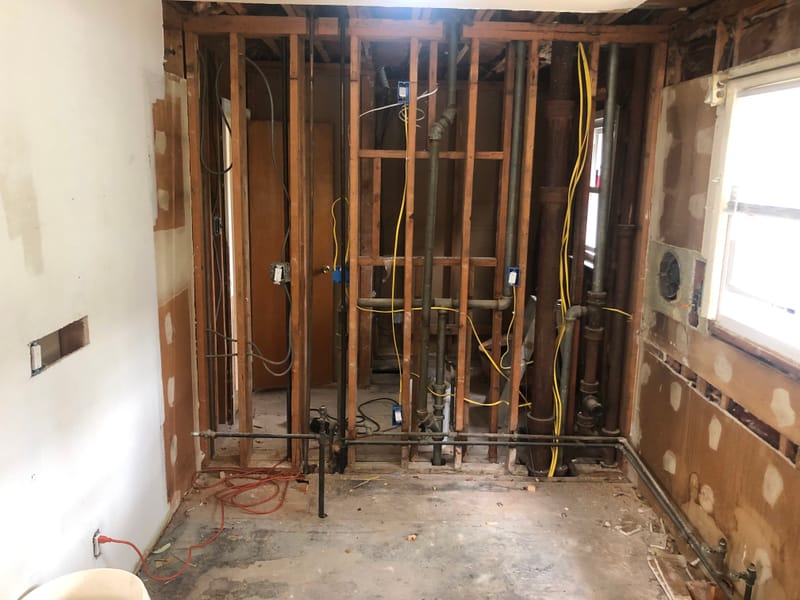

Here you can now see right through the Kitchen/Bathroom common wall. Here is the majority of the plumbing and electric we'll be addressing.

Kitchen/Bathroom Common Wall Exposed

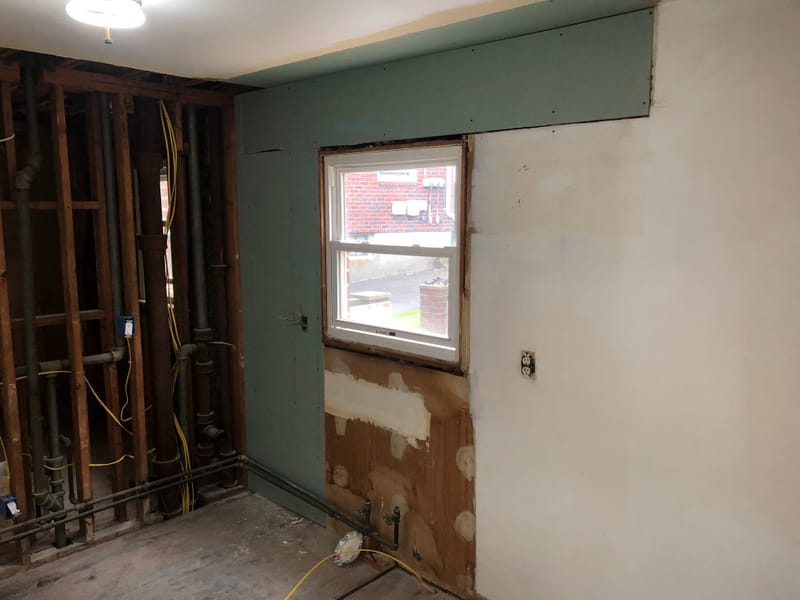

Here we replaced the sheetrock that was behind the old cabinets and the ceiling soffits. Removing the soffit allows us to install taller cabinets which give off a more grand appearance.

Replacing Sheetrock and Removing Soffits

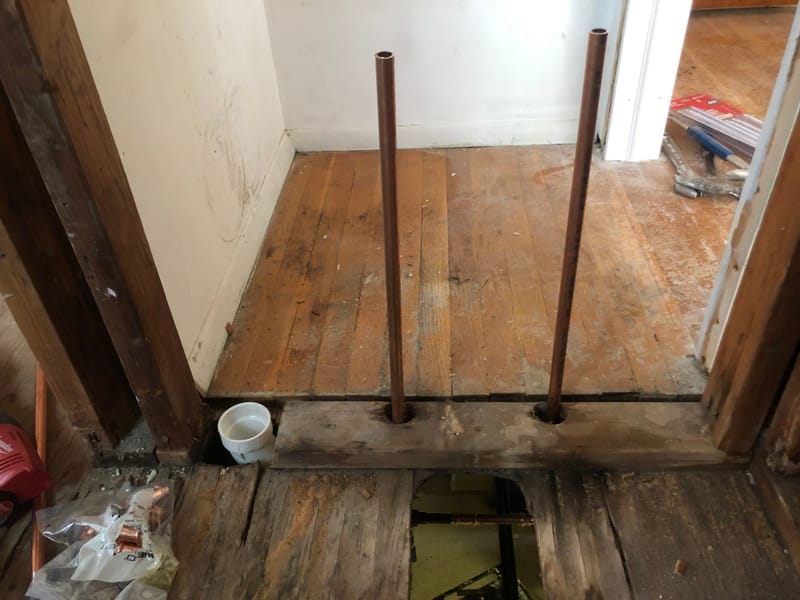

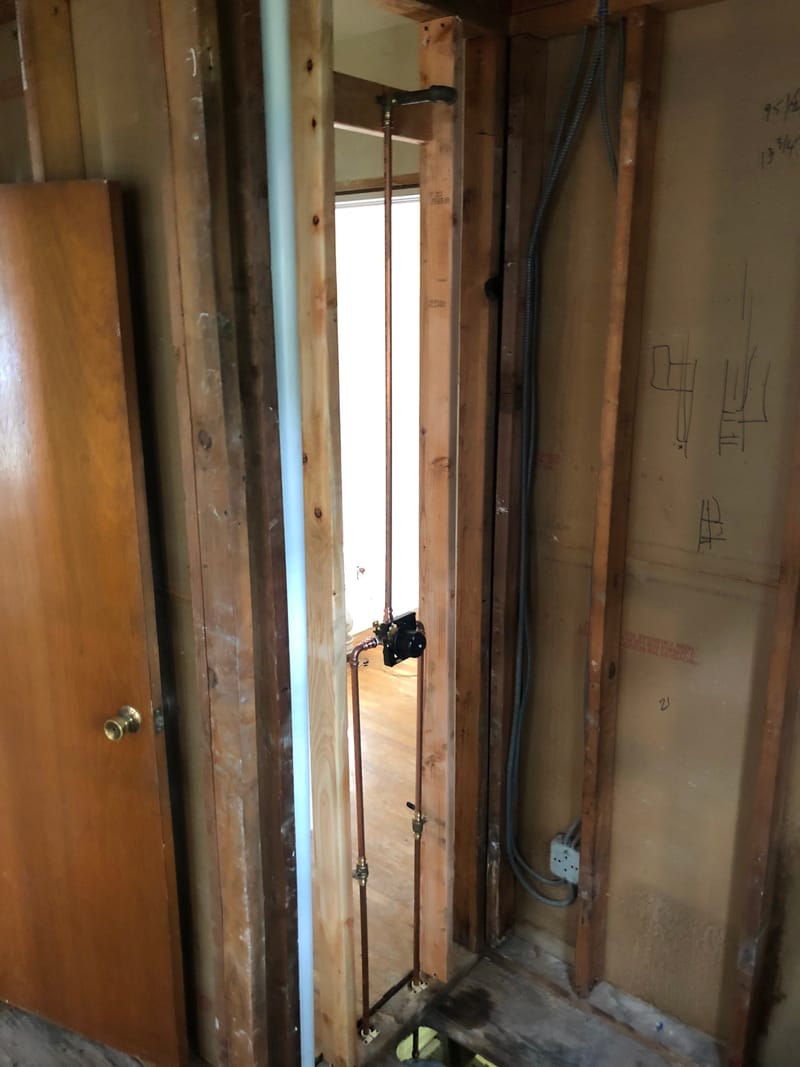

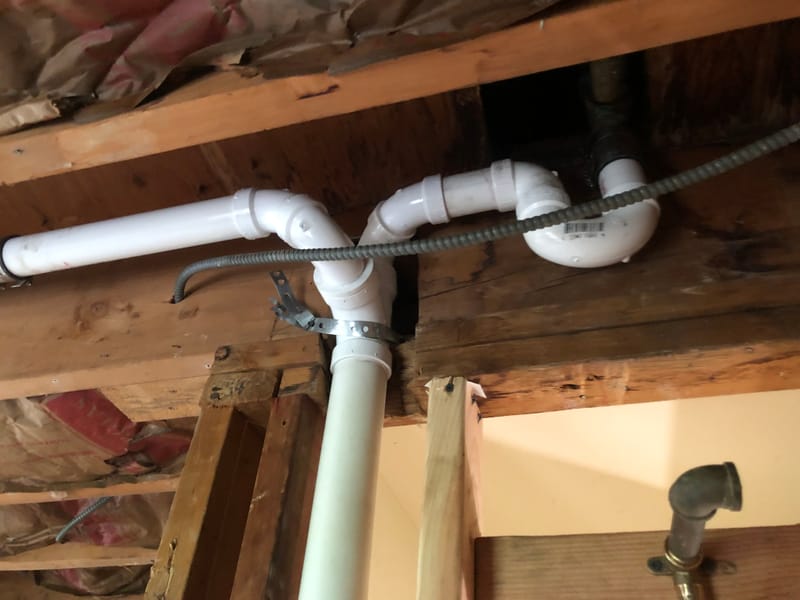

Here we are replacing the bathtub Hot and Cold water copper lines as well as the 2nd floor drain and vent (PVC) on the left.

Replacing Copper Lines and PVC Drain

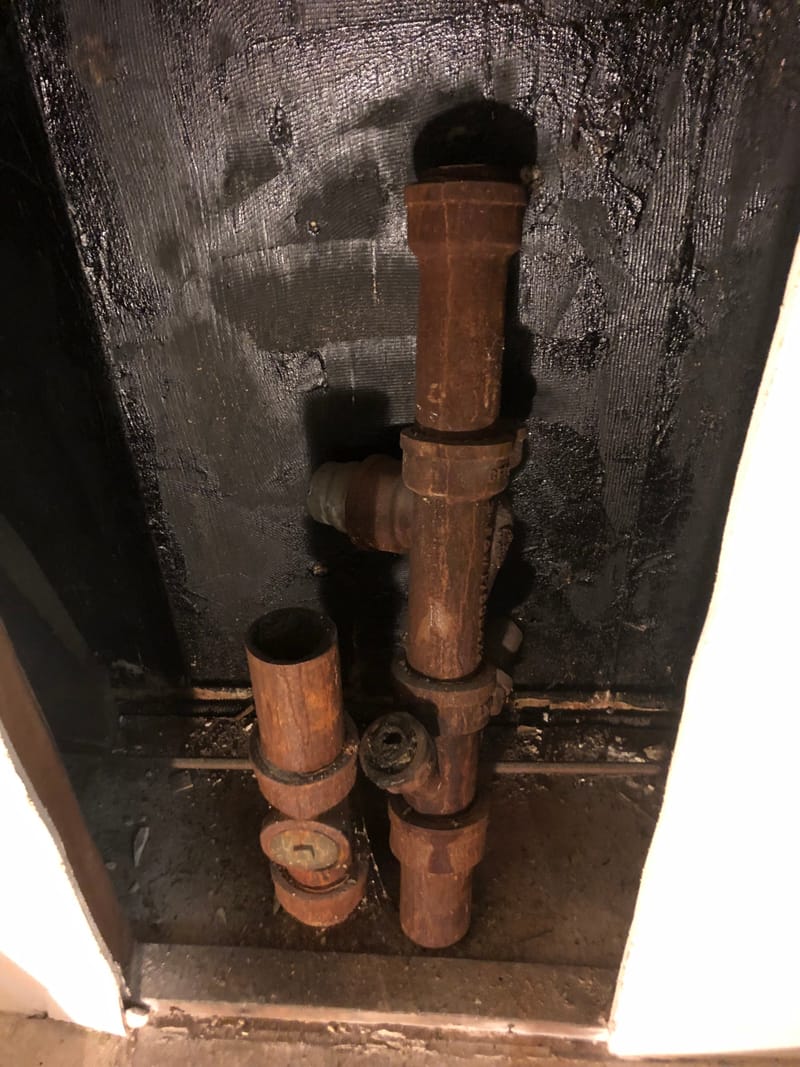

This is the main stack for the two apartments. This is the main waste line that goes to the street. While we were doing this work, we decided to upgrade it to PVC.

Main Stack Upgraded to PVC

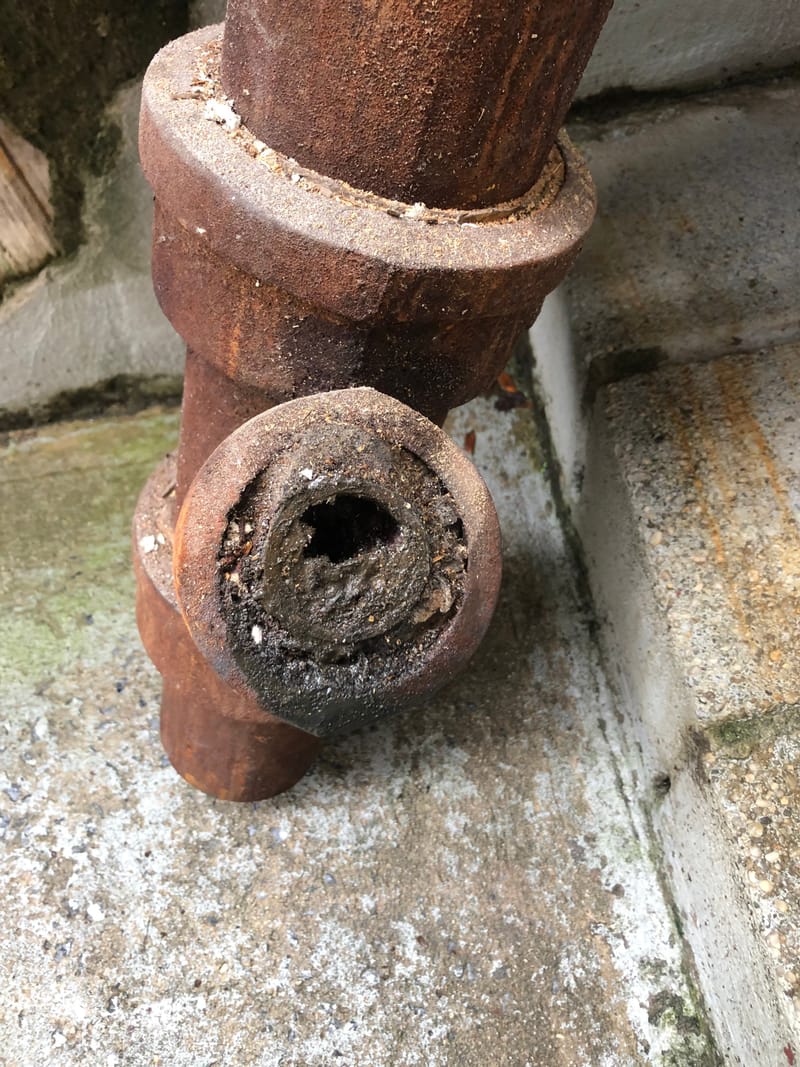

Here is a cross-section of the galvanized pipe. You can see the pipe corroded and rusted over time and it accumulated inside the pipe. This makes the pipe smaller and smaller over time. It causes low water pressure and could cause clogs which could lead to bursts.

Cross-Section of Corroded Galvanized Pipe

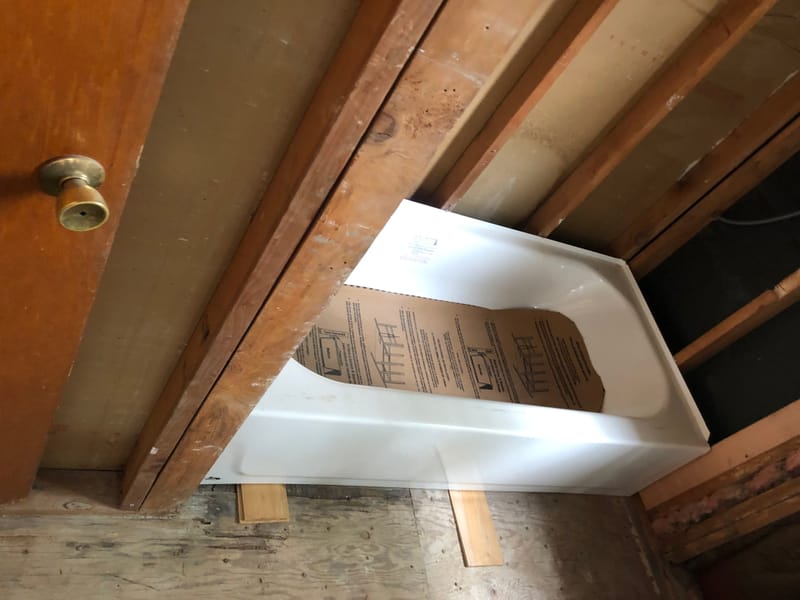

We then installed the bathtub. First you use a level backerboard to make the back edge plumb, and then use shims to level the tub from front to back. The tub is then set in a mortar bed which provides the sturdy feel without any flex. Before the mortar bed sets, you drill pilot screws, and secure the tub to the studs.

Bathtub Installation with Mortar Bed

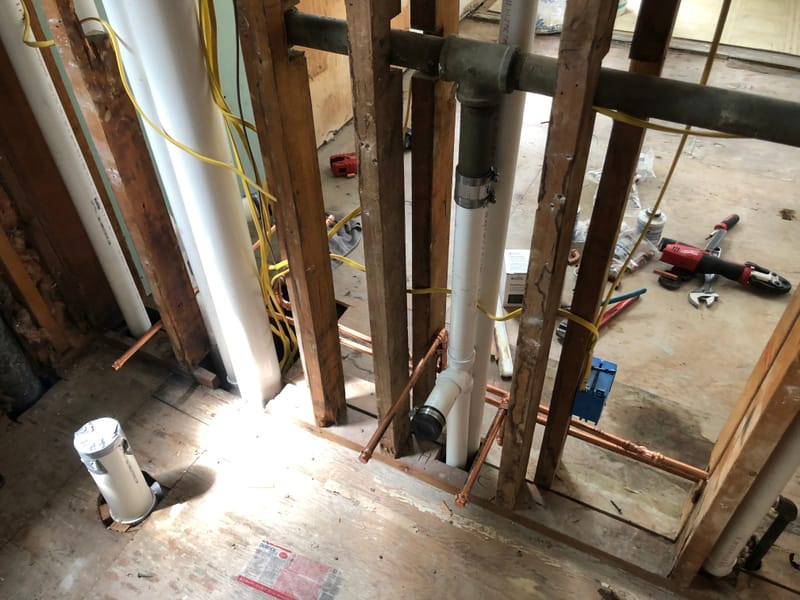

We then installed new Hot and Cold water copper lines to the bathroom vanity, toilet, and kitchen sink.

New Hot and Cold Copper Lines Installed

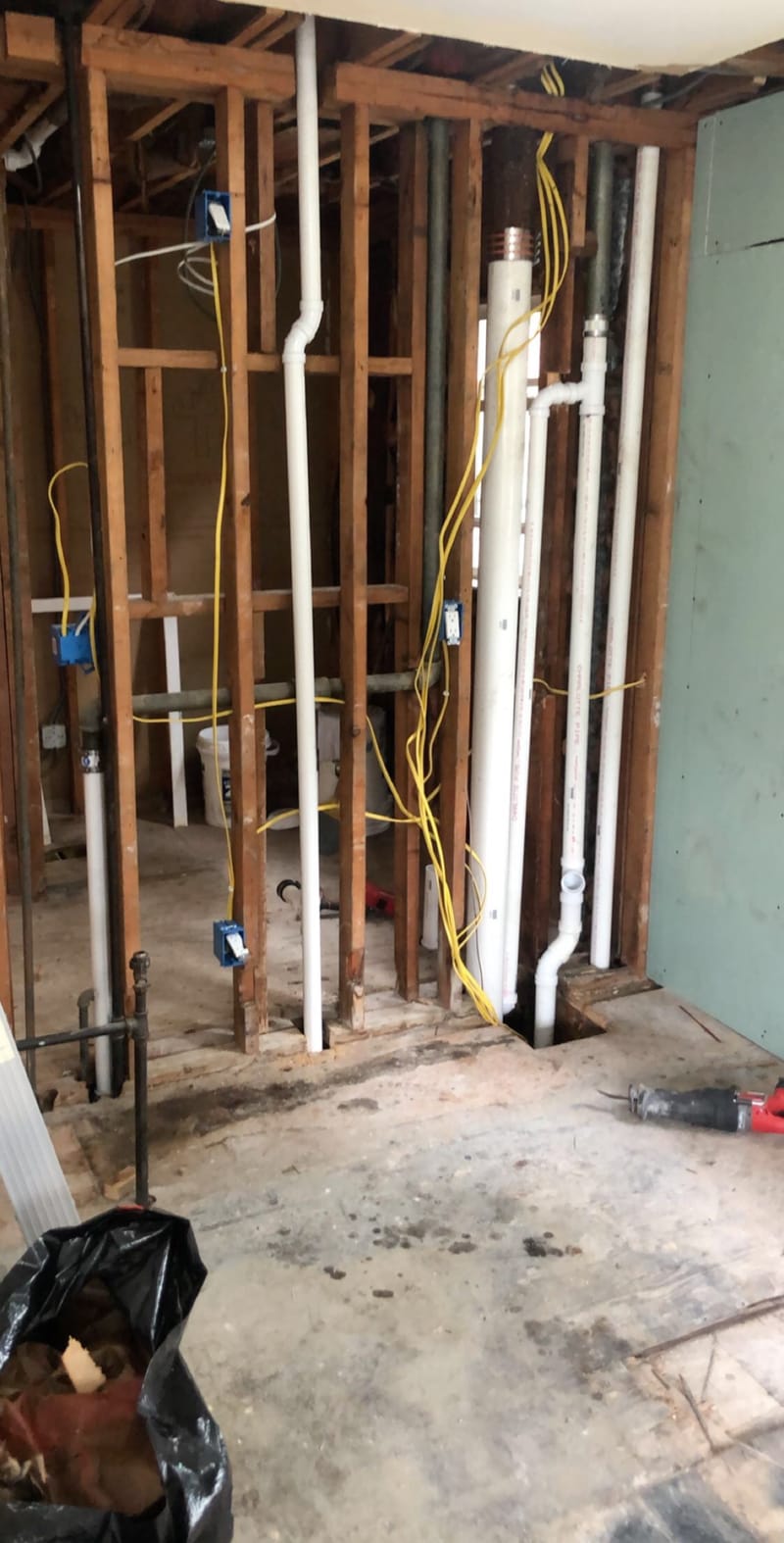

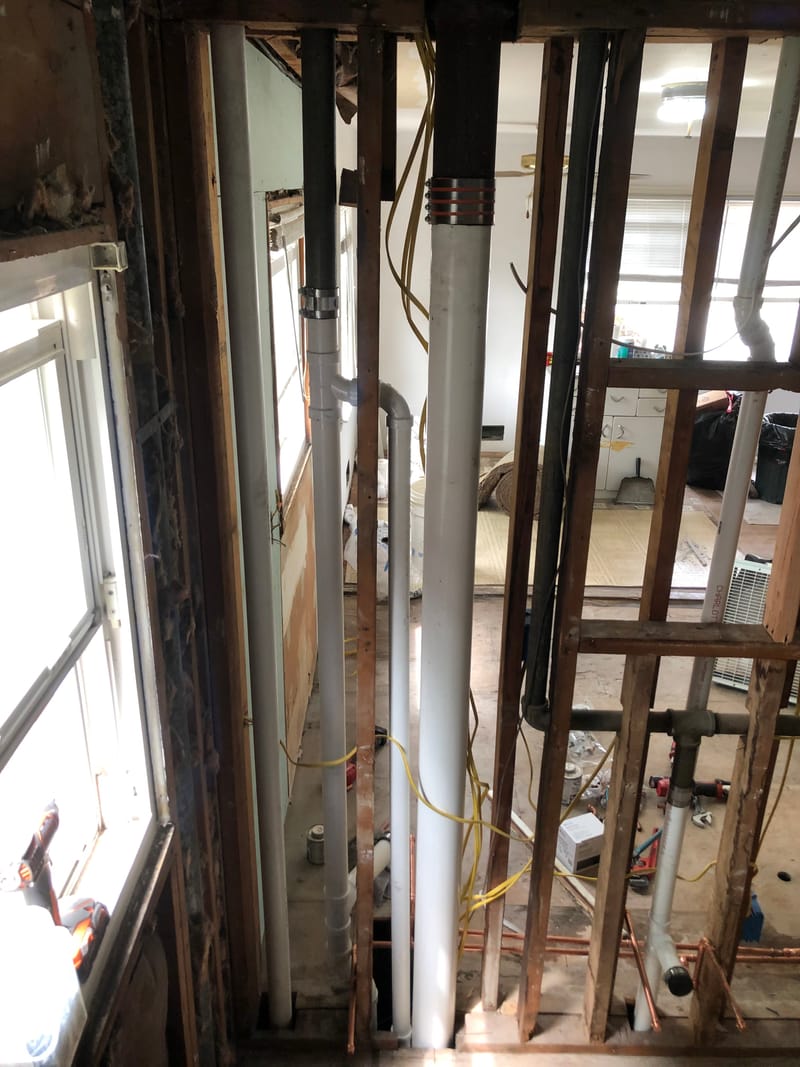

Heres an alternate view of the new PVC plumbing installed. We used no-hub connections to attach to the existing plumbing. We'll replace the remaining galvanized pipe when we renovate the upstairs apartment.

Alternate View of New PVC Plumbing

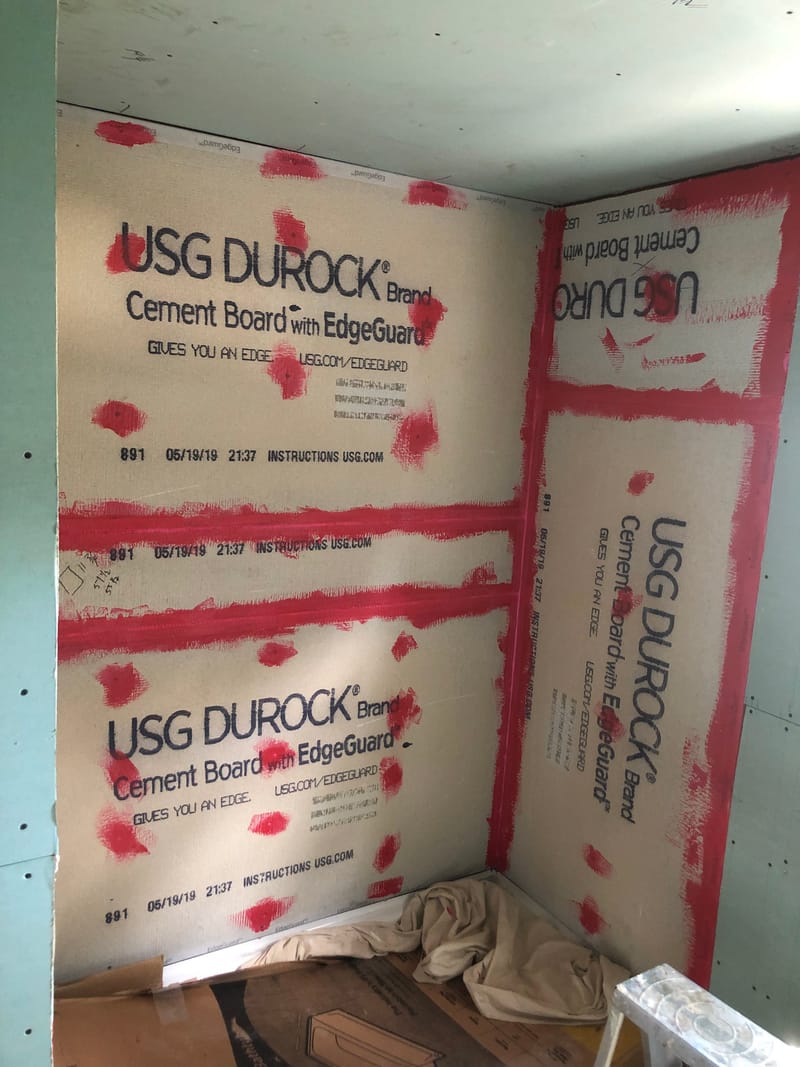

In the shower enclosure, you have to use Cement Board and minimize the distance between screws. This will hold up better against moisture, and hold up the full wall of tile in the shower enclosure. The red putty is a liquid rubber that solidifies and provides a water tight seal at the seams and screw points.

Cement Board in the Shower Enclosure

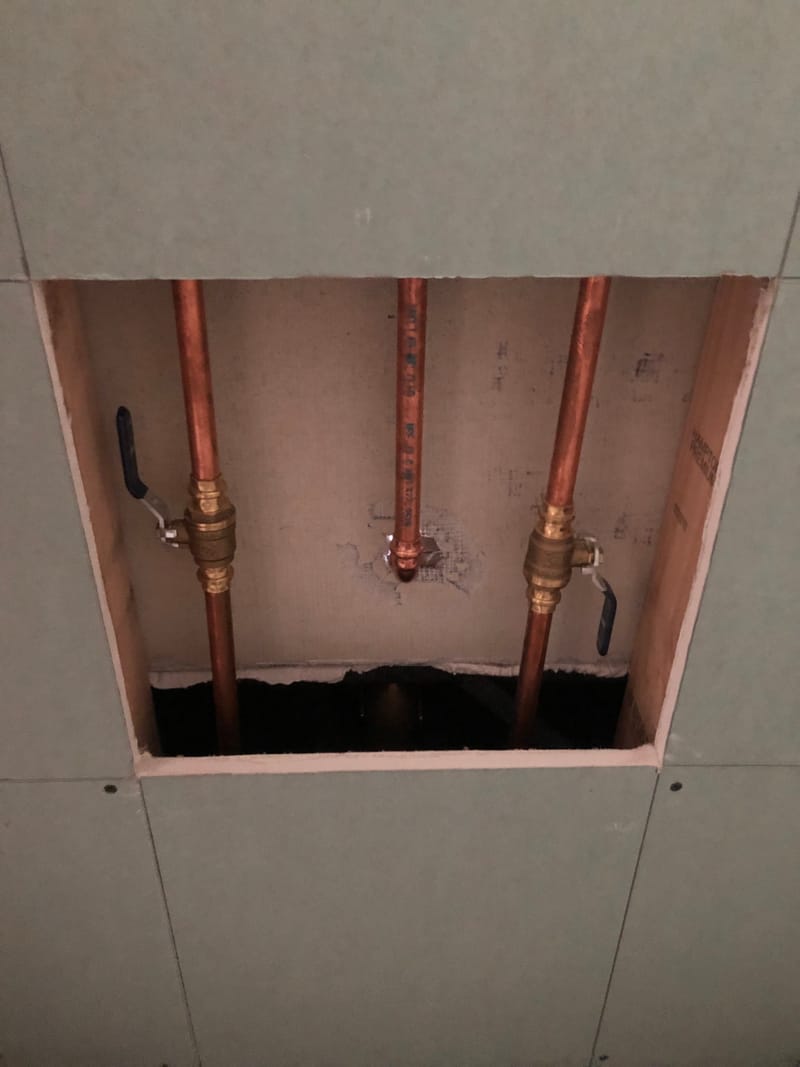

Emergency shut off valves are installed on the hot and cold water lines just in case there is a leak. It can be quickly accessed from the small bedroom closet behind a spring loaded access panel.

Emergency Shut-Off Valves Installed

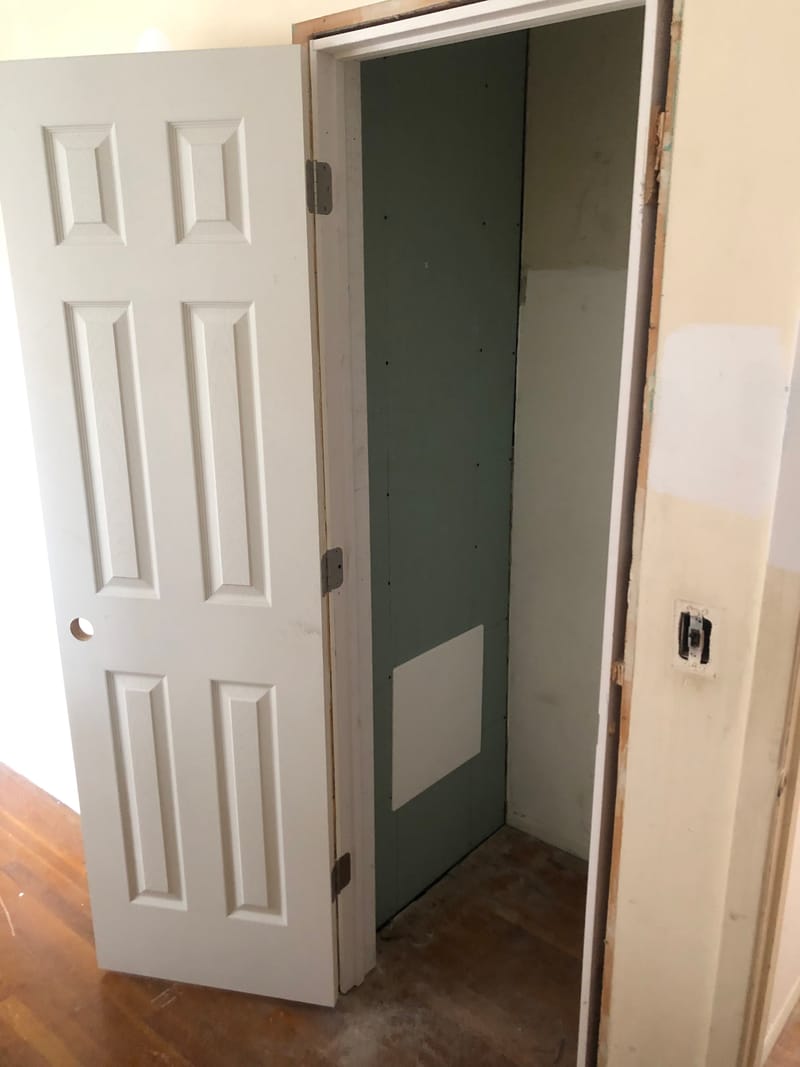

Here you can see the spring loaded access panel in place. It will be unnoticeable once the wall is painted.

Spring-Loaded Access Panel in Place

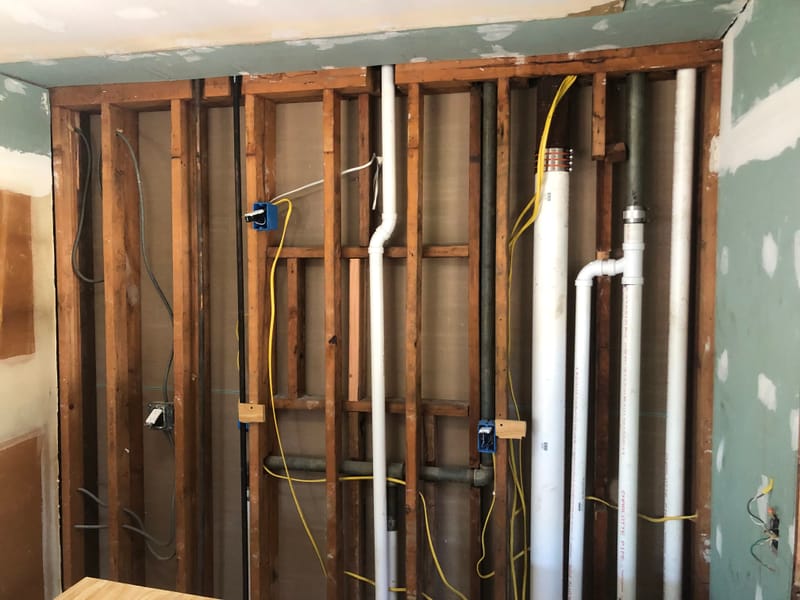

This is the view from the Kitchen side of the Kitchen/Bathroom common wall. To make cabinet installation easier, we're attaching plywood sheets on the studs. When we install cabinets we won't have to worry about finding a stud or worrying about strength.

Plywood Backing for Cabinet Installation

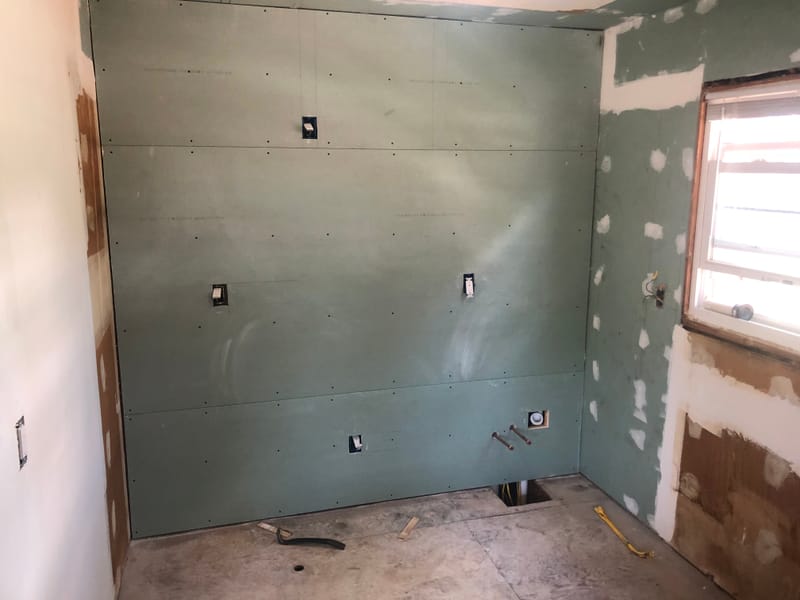

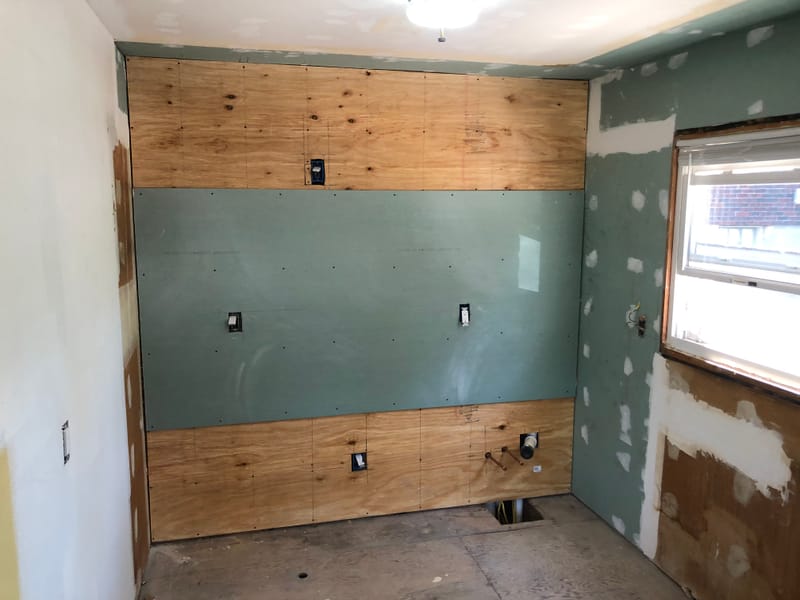

Plywood is installed, and now 5/8" Fireblock drywall is installed as it is going to be behind a gas oven / stove. We placed a full 4' x 8' sheet in the middle of the wall so we didn't have any seams when doing the tile backsplash.

Fireblock Drywall Behind Gas Stove

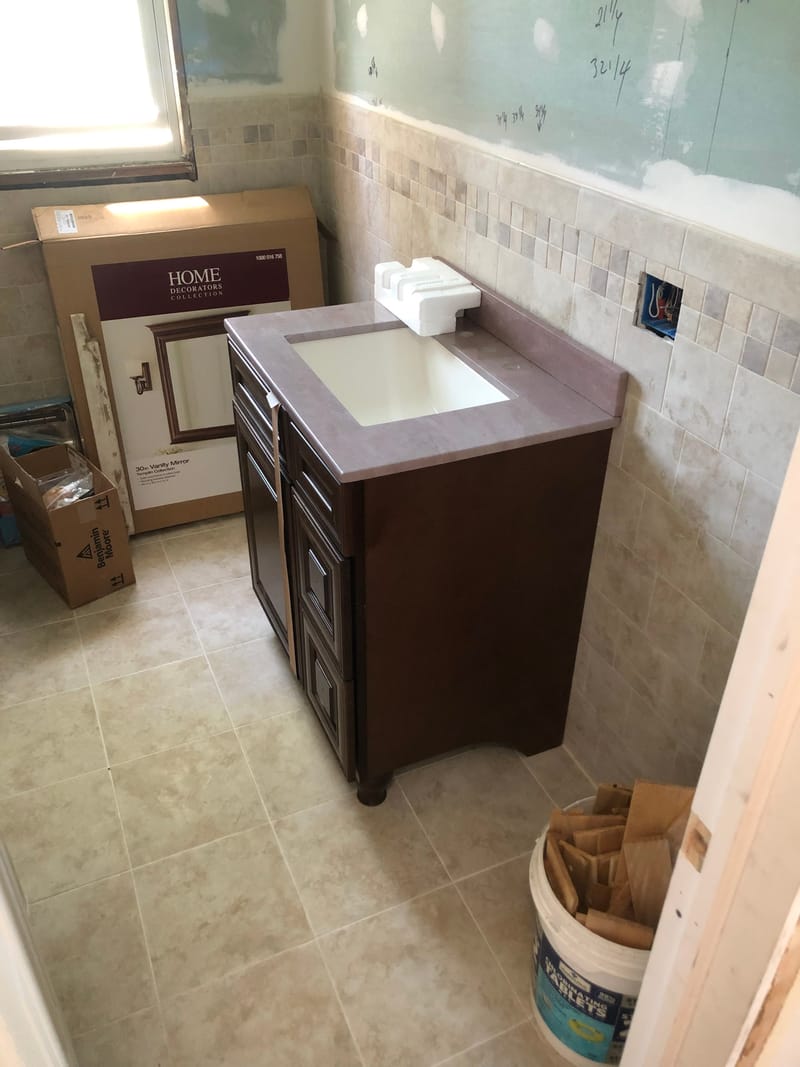

We brought in the vanity and secured it to the tile. This is to ensure it doesn't move when we install the plumbing. We then test-fit the vanity top.

Vanity Secured and Top Test-Fitted

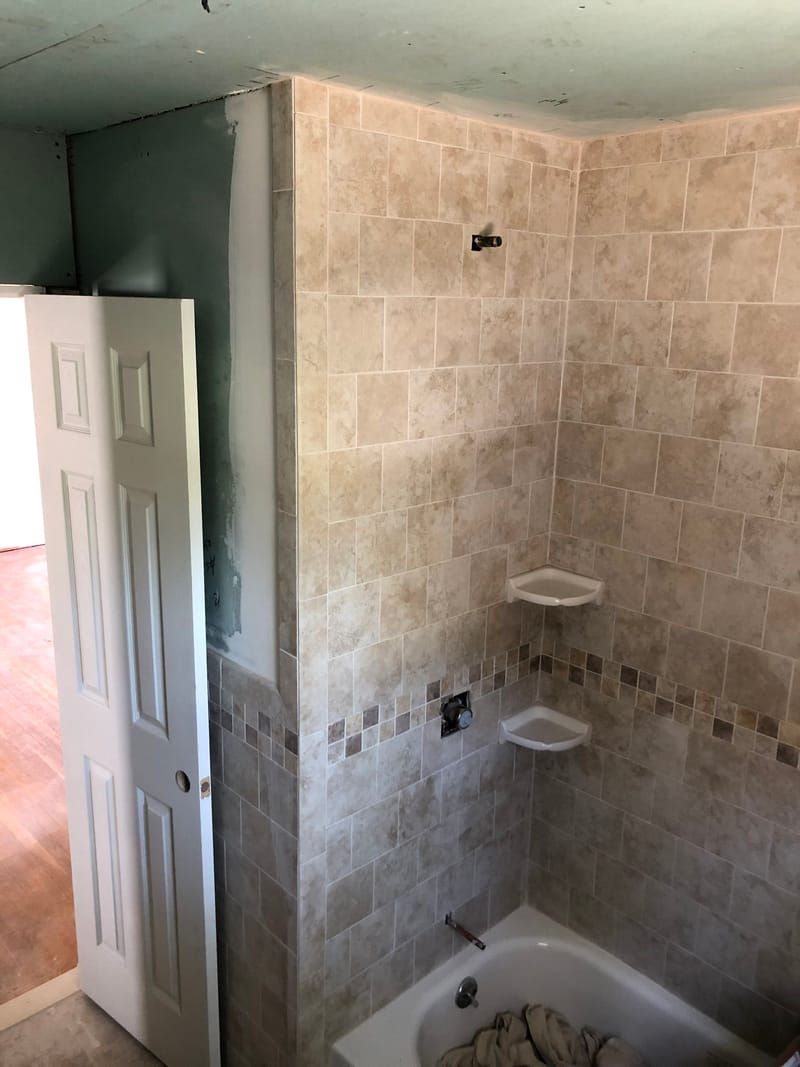

Here you can see we tiled the shower enclosure to the ceiling and then did a half wall around the rest of the bathroom. We used smaller decorative tiles below the half wall.

Shower Tile and Bathroom Half Wall

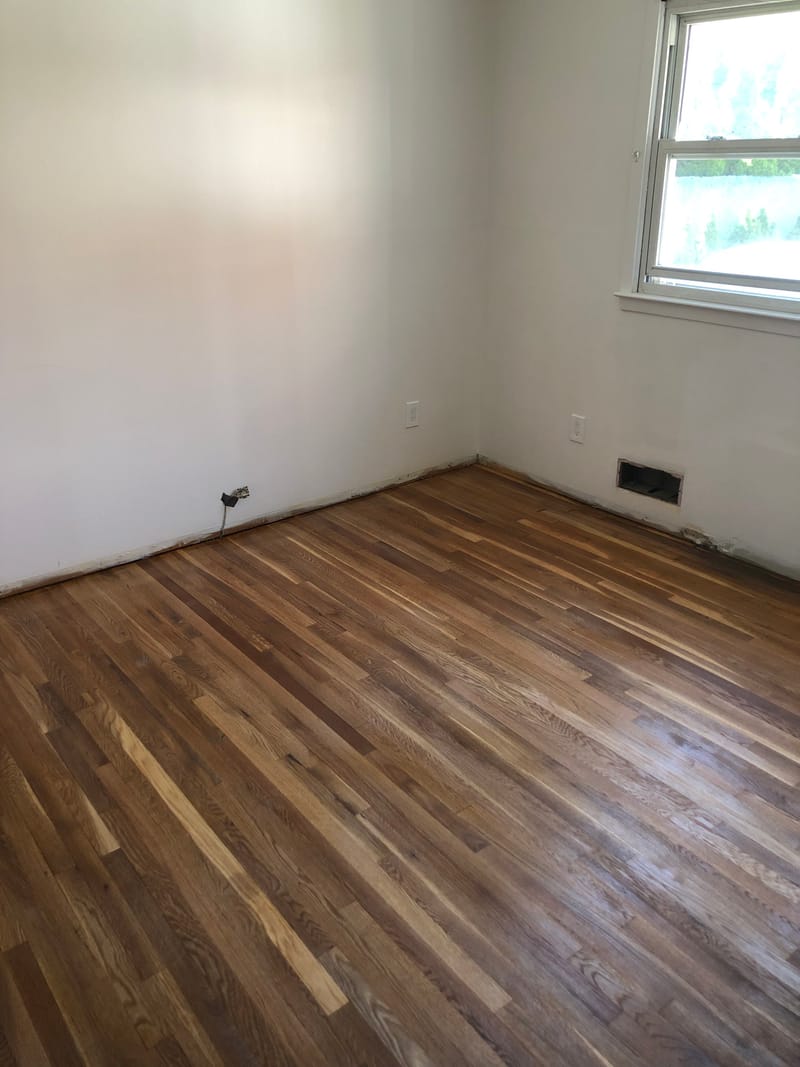

We then sanded the original hardwood floors from the 1960s. Once you smooth out the top layer and remove years of grime you get a beautiful finish.

Sanding the Original 1960s Hardwood Floors

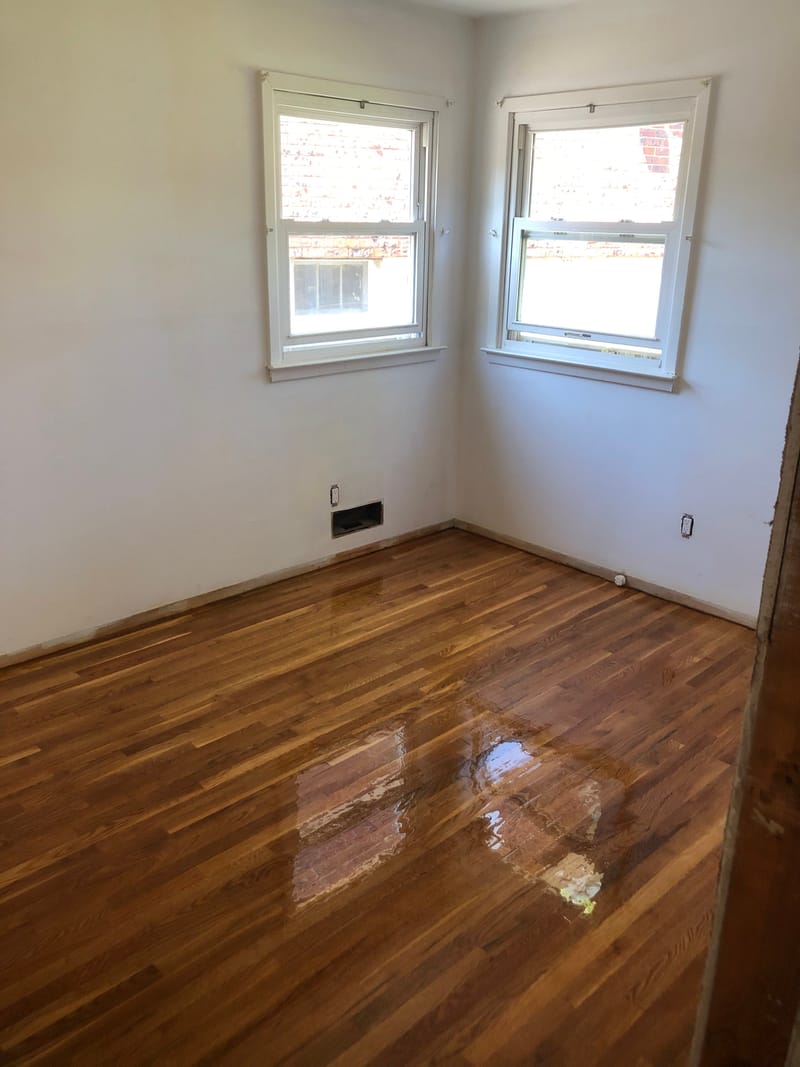

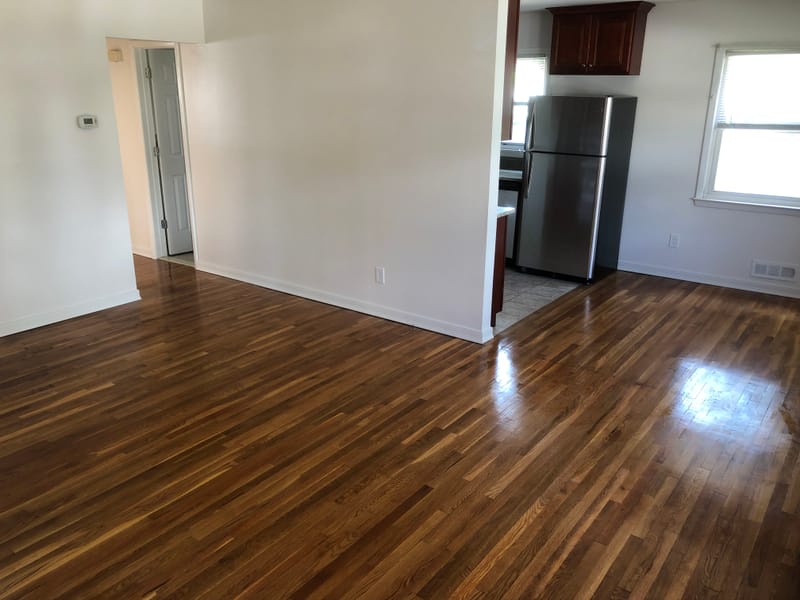

A polyurethane sealant is then used to protect the floors and provide the desirable glossy finish.

Polyurethane Sealant on Hardwood Floors

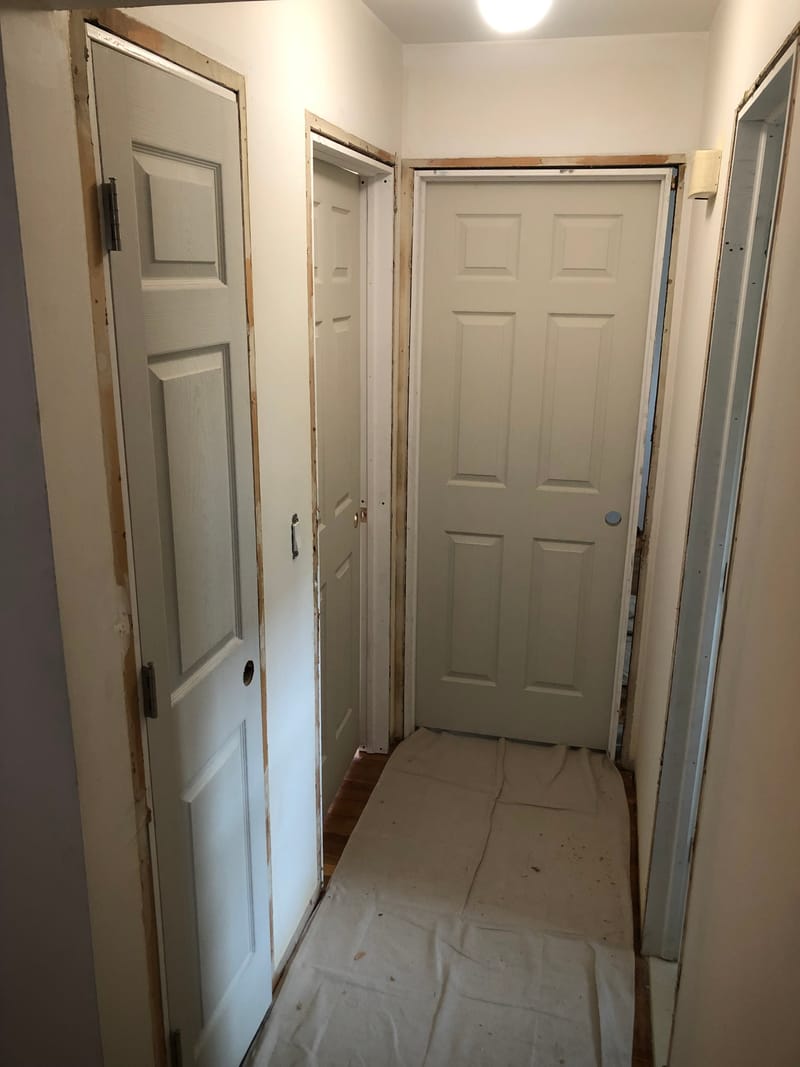

We then installed the pre-hung doors. We didn't want the doors / jambs to get in the way of the machine when sanding the floors.

Installing Pre-Hung Doors

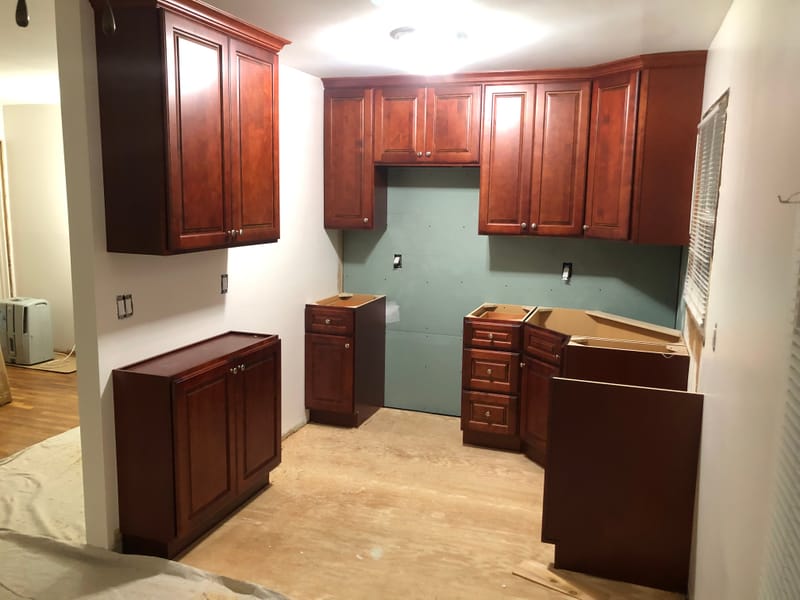

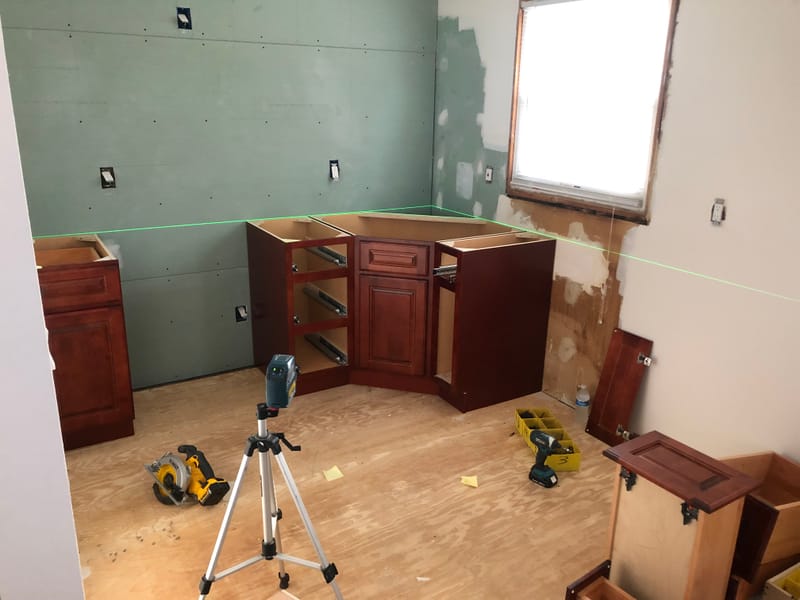

Here we're installing the lower cabinets using a laser level. This level is on a tripod and sits in water which makes it self leveling. Using the tripod height adjustment we can ensure the cabinets are flush with the countertop. We shim the cabinets to stay in place and secure the cabinets to the wall.

Installing Lower Cabinets with Laser Level

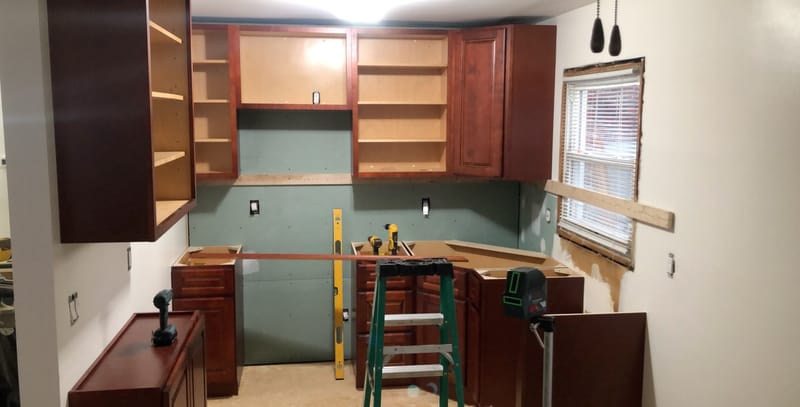

Using the laser level we installed a ledger board which ensures our upper cabinets are parallel to the lower cabinets and counter tops. You can hide any house settling with the crown molding near the ceiling.

Ledger Board for Upper Cabinets

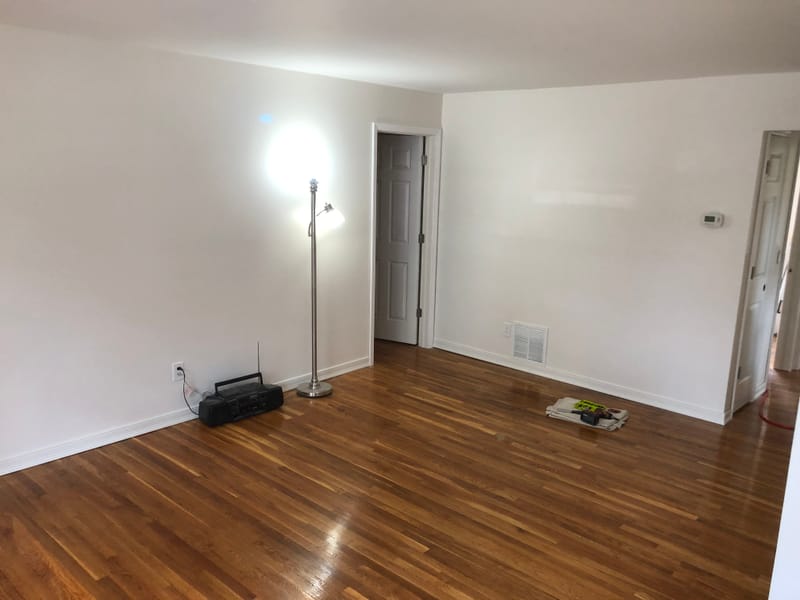

We then cut and installed door casings, window casings, and base molding while we wait for the countertops to be cut.

Door Casings, Window Casings, and Molding

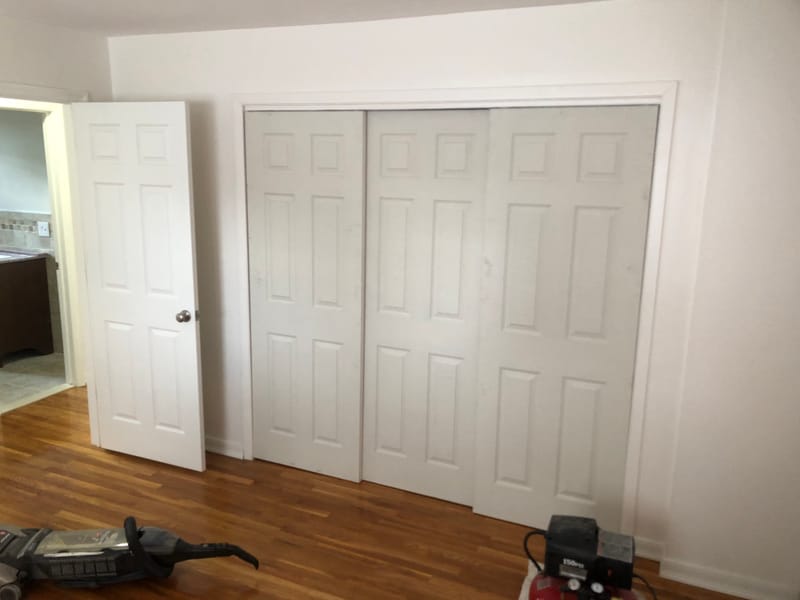

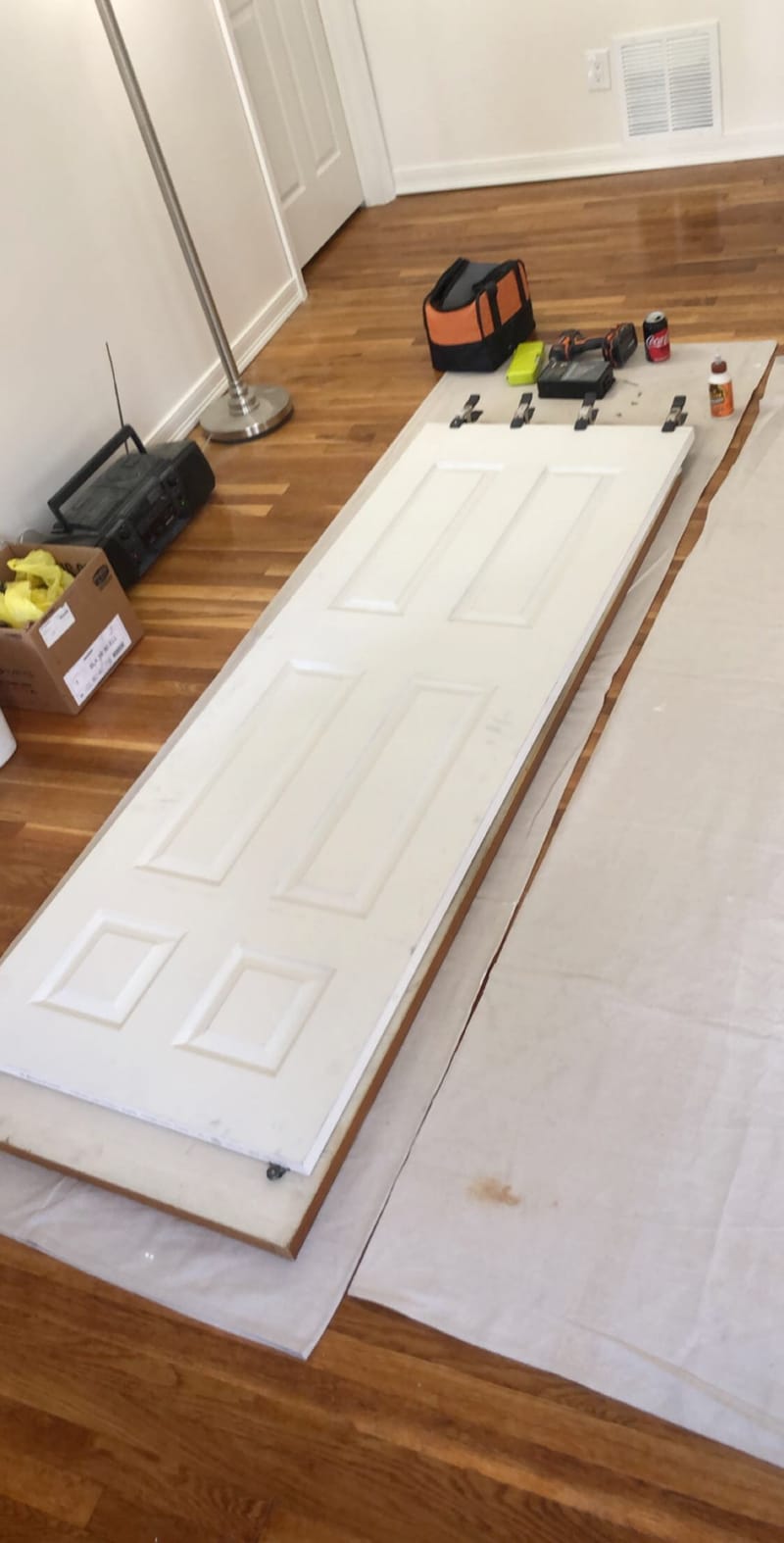

For hanging closet doors you use 80" slabs which need to be cut down, otherwise they would drag against the floor. If you cut more than 1" off the door, you need to reblock and glue the door to support the bottom edge.

Cutting Down Hanging Closet Doors

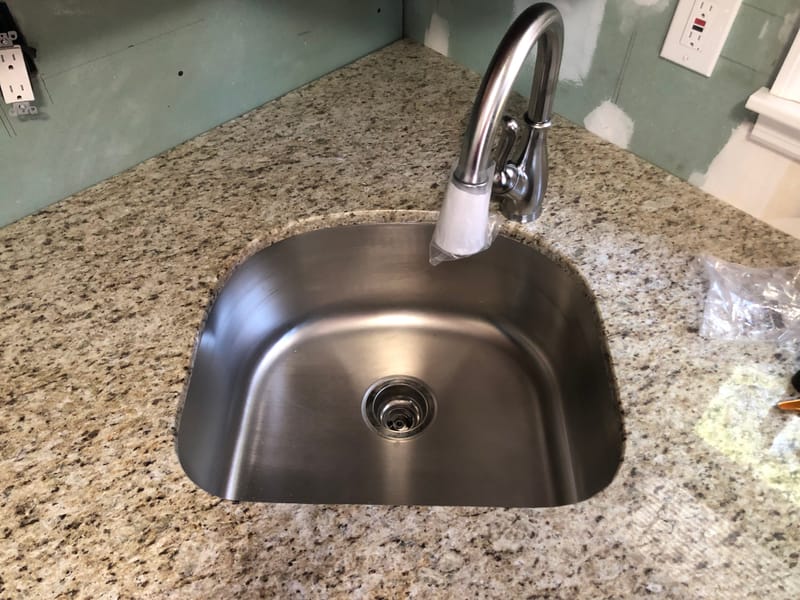

We installed the countertops by applying caulk to the top of the cabinets and dropping the countertop into place. We then used a small length of PVC, calked it to the countertop and filled it with water to cool down the hole saw while cutting the hole for the faucet.

Countertop Installation and Faucet Cutout

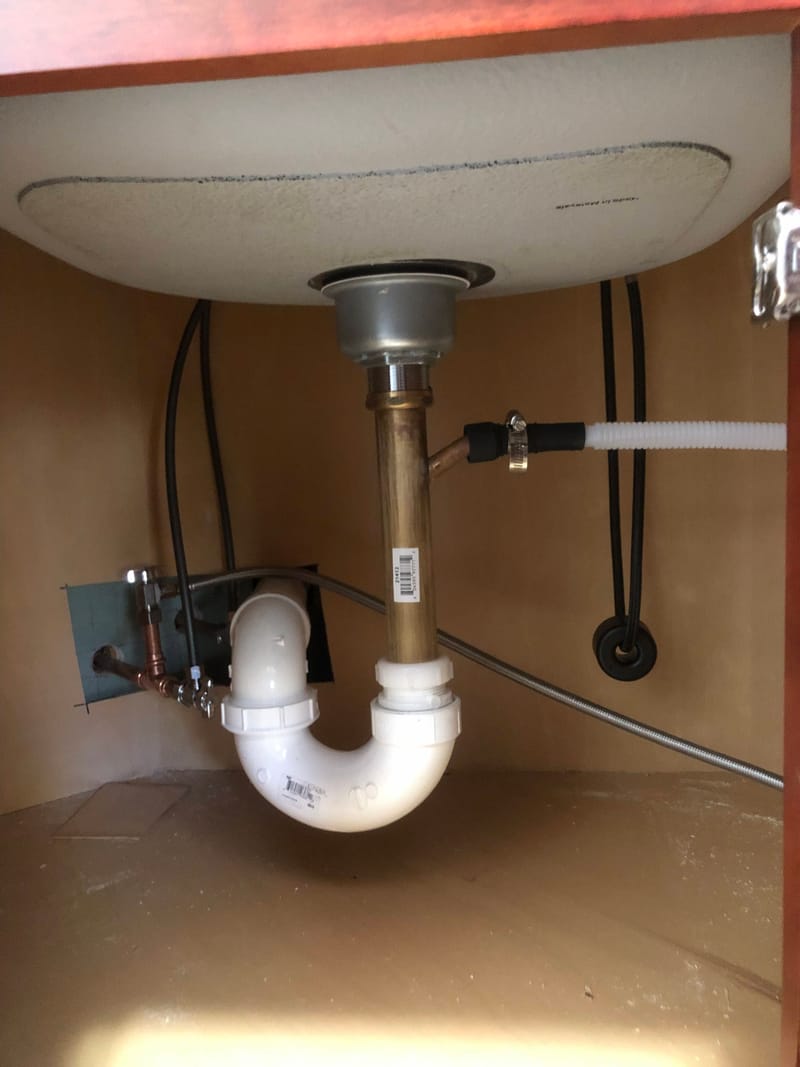

We installed the hot/cold water lines to the sink and the dishwasher. You can also see the PVC drain as well as the flexible hose for the dishwasher drain.

Sink and Dishwasher Water Lines

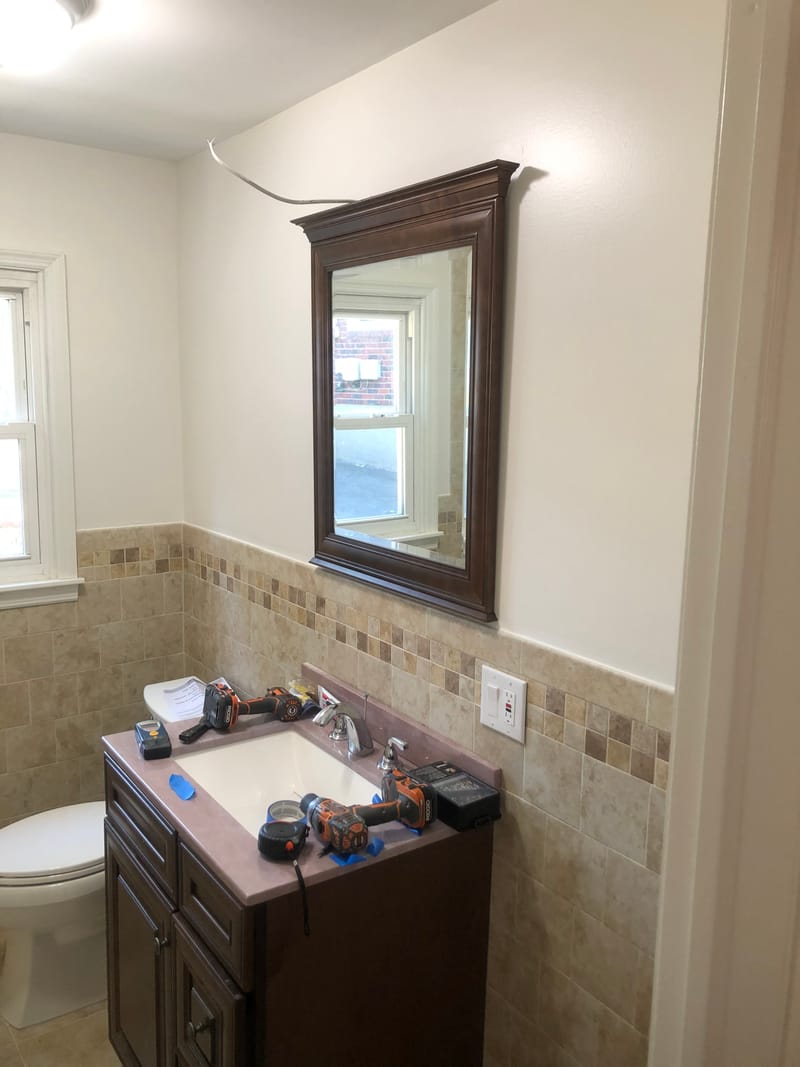

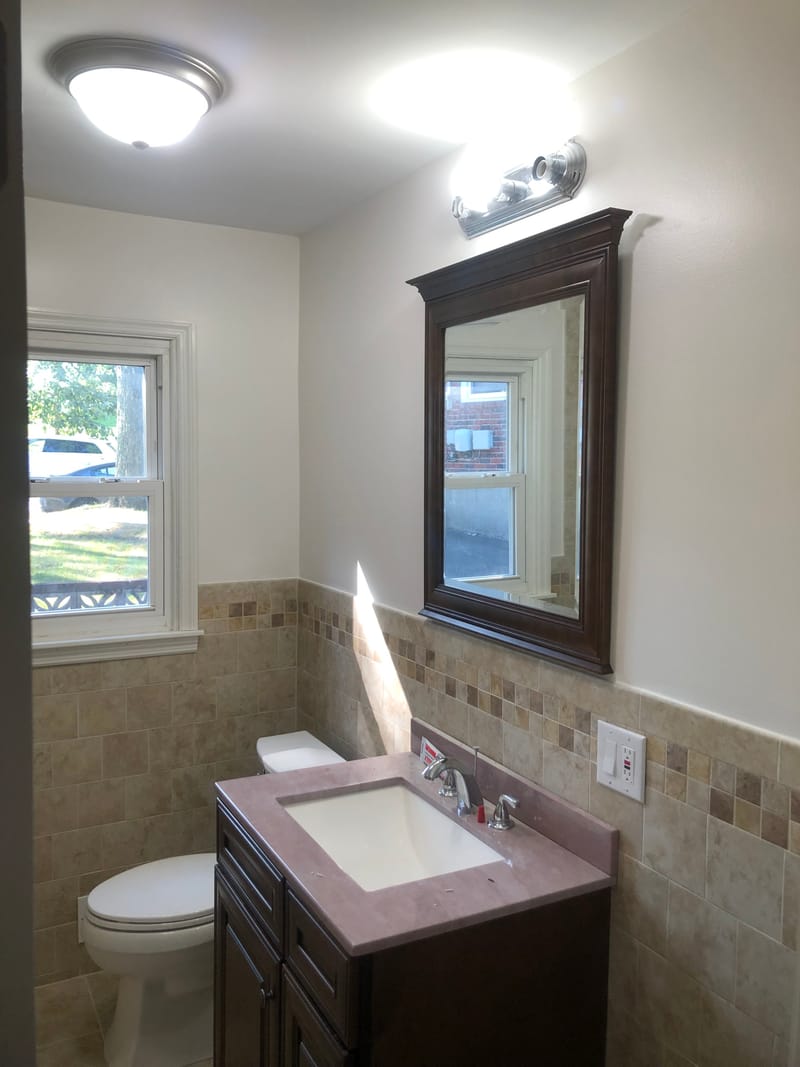

We then installed the vanity mirror right above the halfwall. We were able to secure it to a stud on one side and use a drywall anchor on the otherside.

Vanity Mirror Installed Above Half Wall

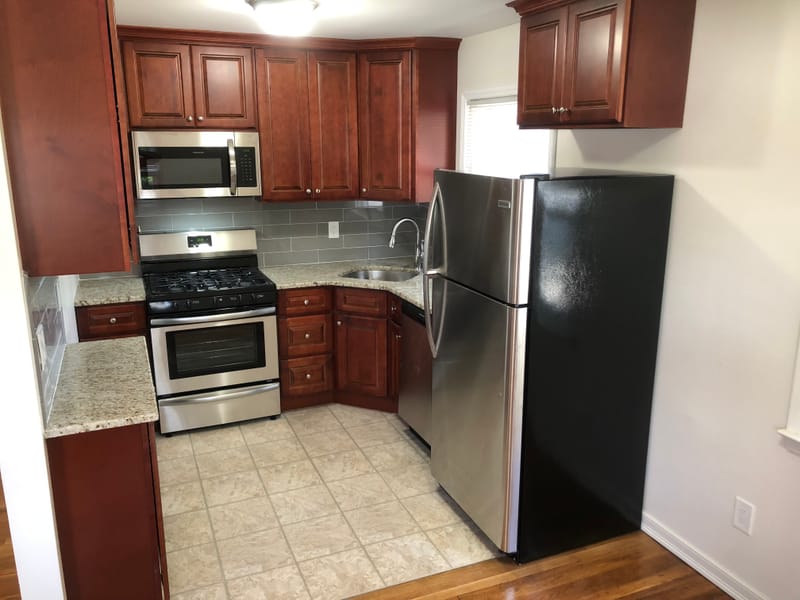

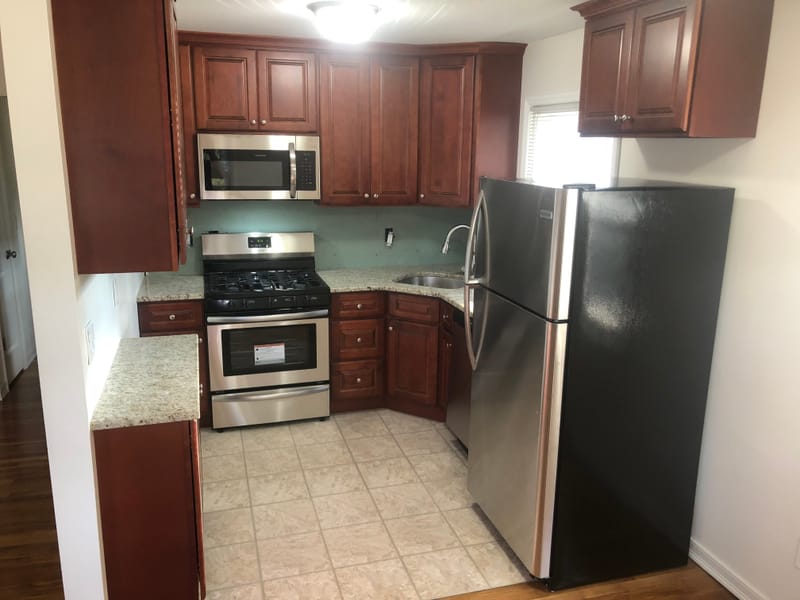

Appliances were then delivered and installed. We installed the microwave to the wall and the upper cabinet. Gas and Electric were connected to the Oven/Stove. Water/Drain/Electric was connected to the dishwasher. Electric was connected to the microwave and the refrigerator.

Appliances Delivered and Installed

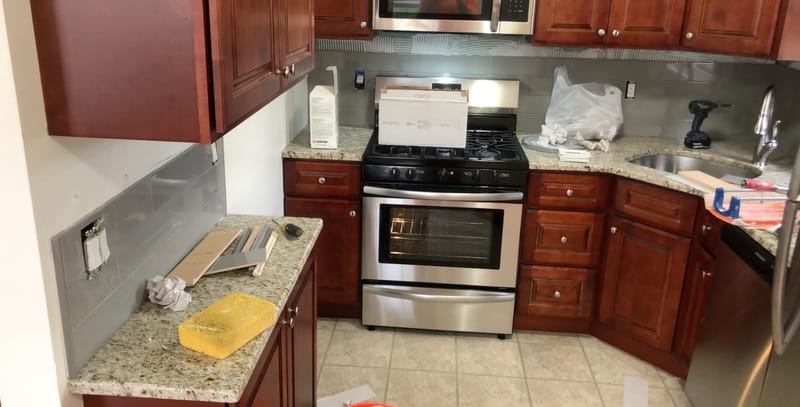

We then installed the tile backsplash. We used a larger subway tile to minimize grout lines to keep a clean appearance. We also used a pencil tile to cover the rough edge of the tile.

Tile Backsplash with Subway Tile
