01 Background

The Mendel90 3D-Printer was built at Worcester Polytechnic Institute in 2014 for MAST (Marine Academy of Science and Technology) high school. This project involved laser cutting an acrylic frame, 3D printing brackets and components using a Prusa i2, assembling stepper motors and hot end, wiring the power supply, and calibrating for first prints. The complete build log is documented below with 46 photos.

02 Photos

Complete build log from start to finish.

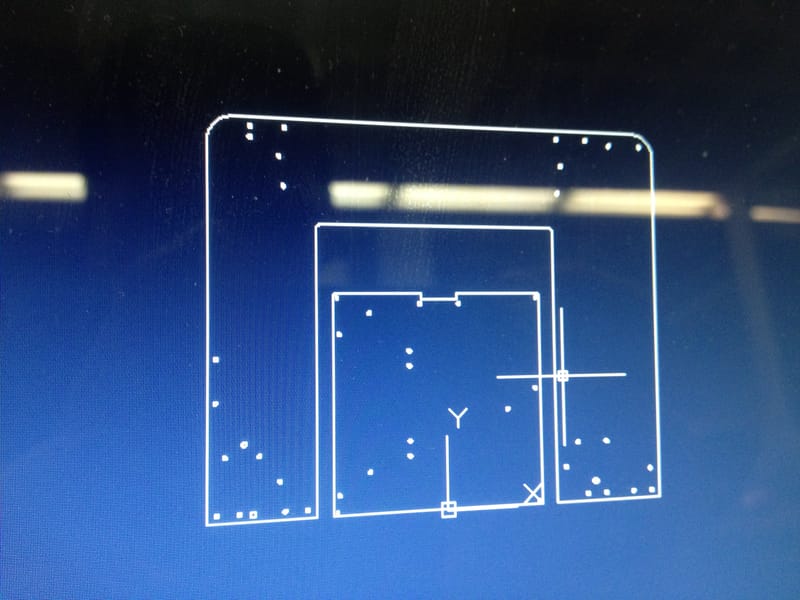

Laser Cutting the Acrylic for High Resolution Frame

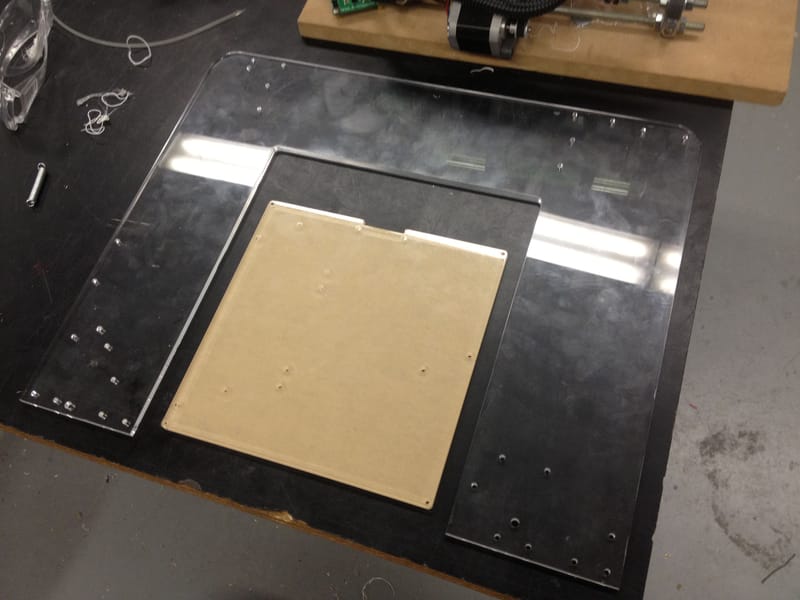

Frame Successfully Cut

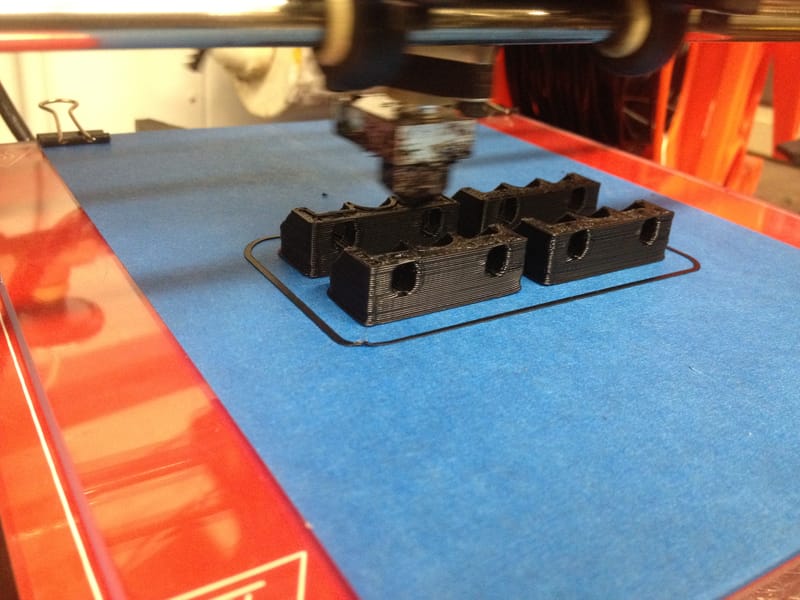

Printing out Right Angle Brackets

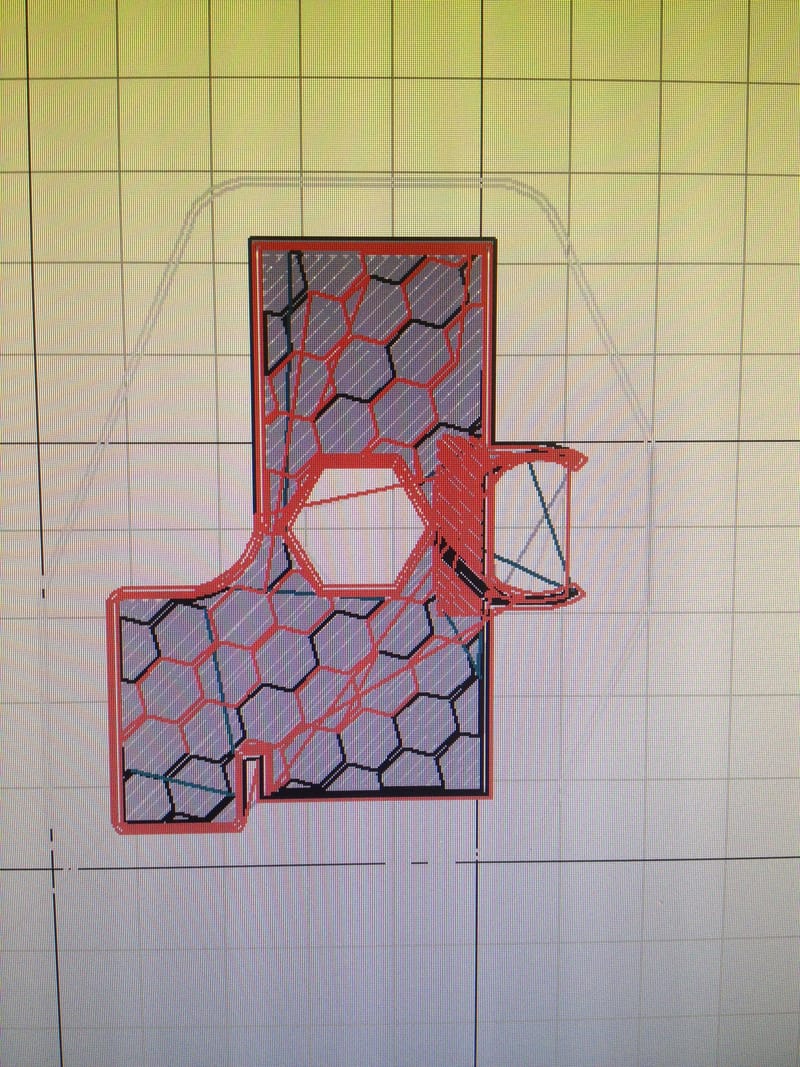

Pronterface Showing Toolpath Instructions for 3D Printer

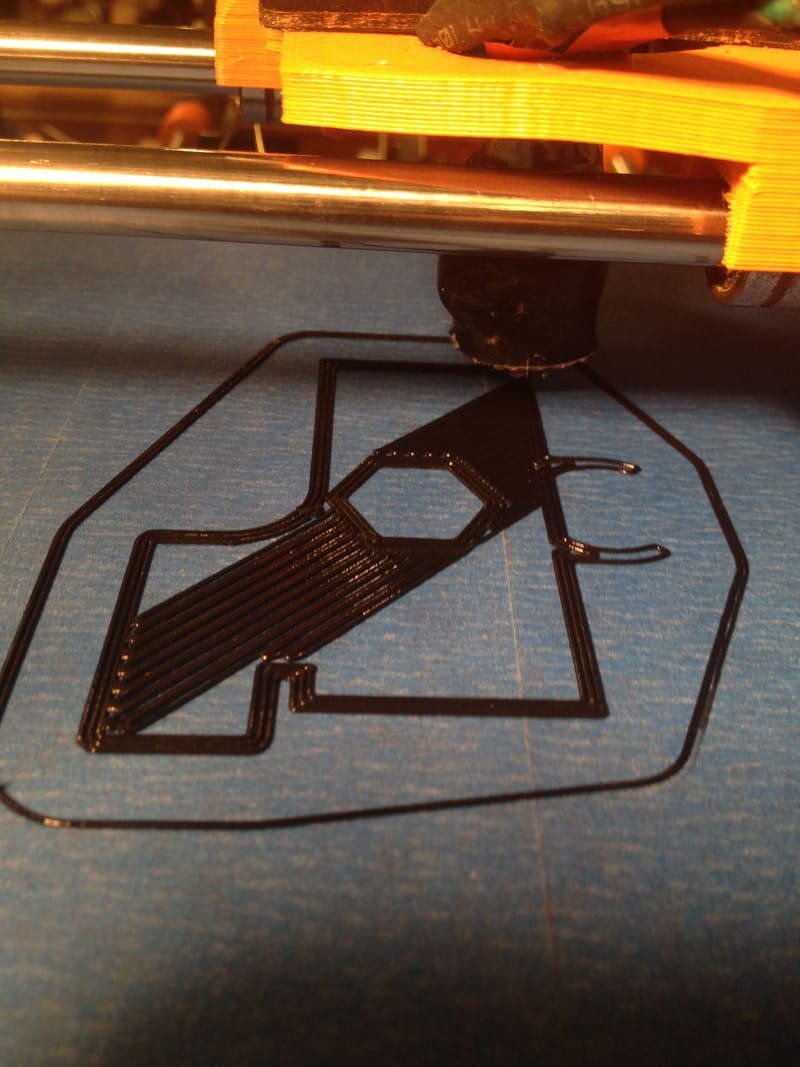

X-Axis Idler — Clean First Layer

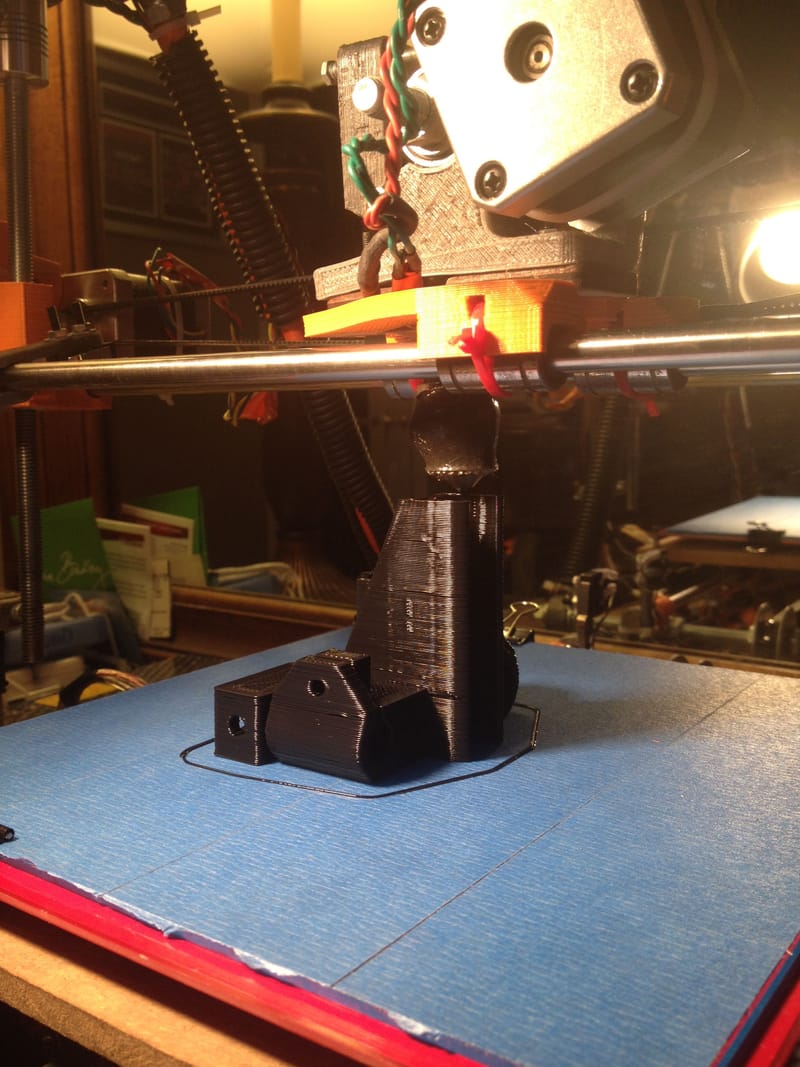

X-Idler Nearly Finished Printing in Beautiful Quality

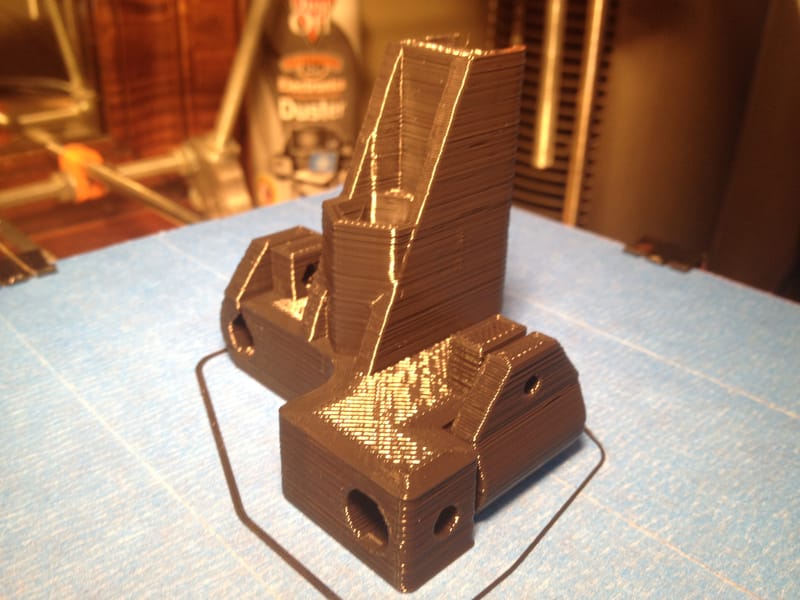

X-Idler Up Close in Proper Lighting

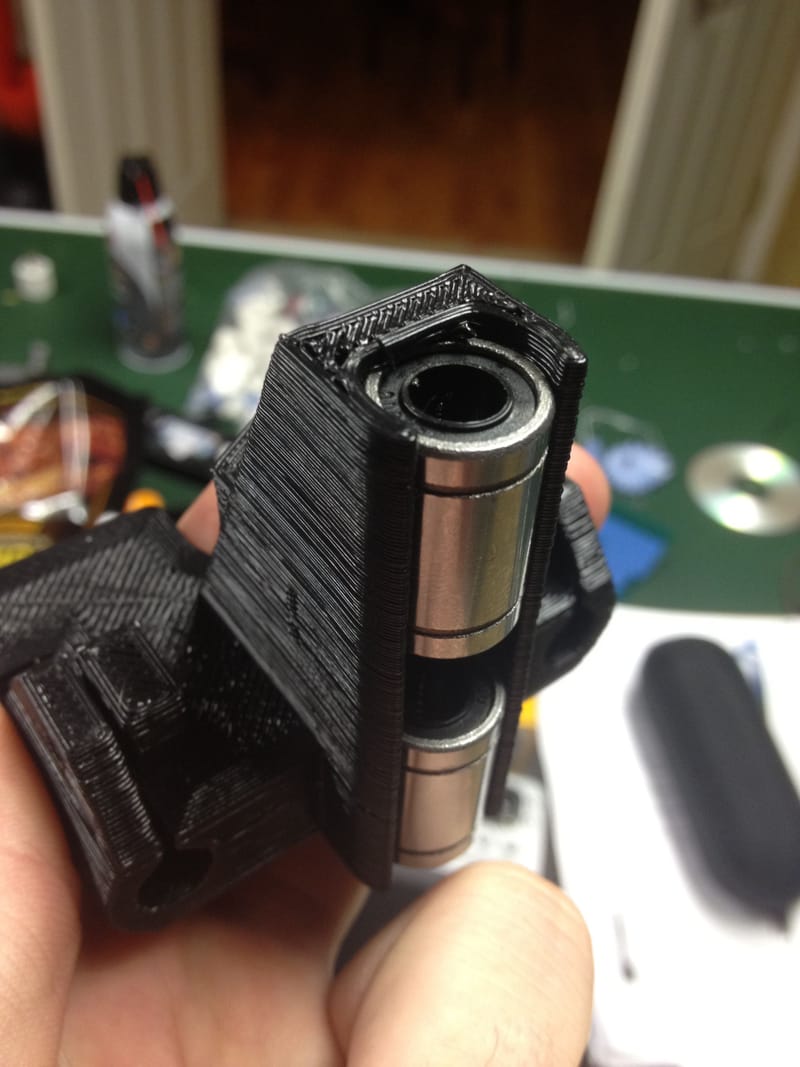

Linear Bearings Pressed into the Plastic

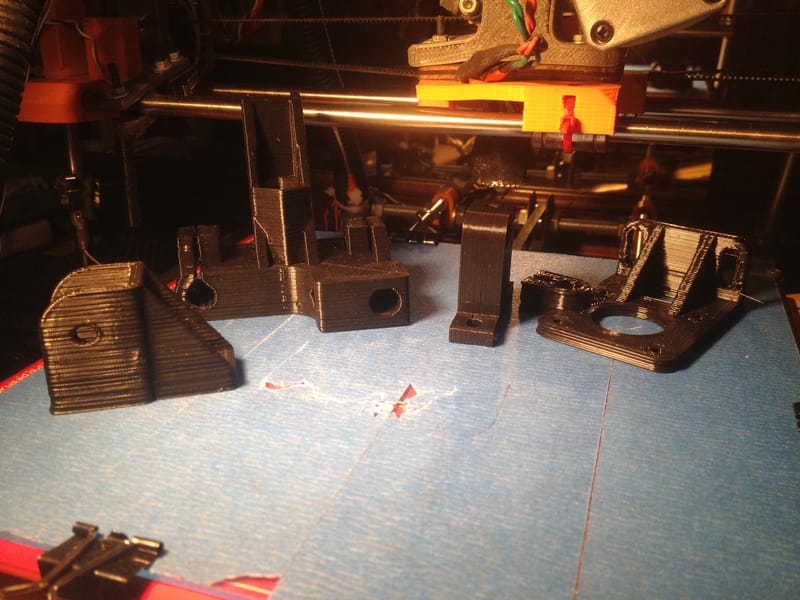

Various Components Printed on the Prusa i2

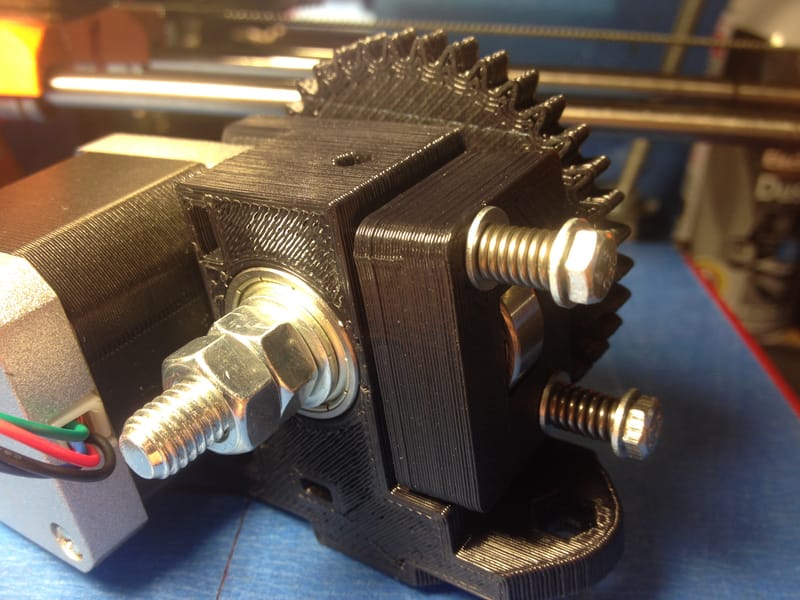

Working on the Wade's Extruder Block

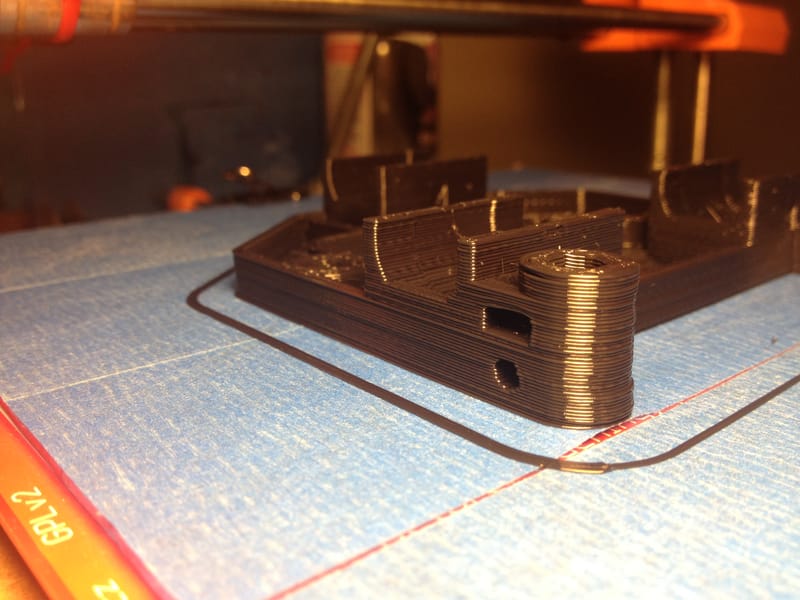

Printing out the X-Carriage Which Will Support the Extruder Block

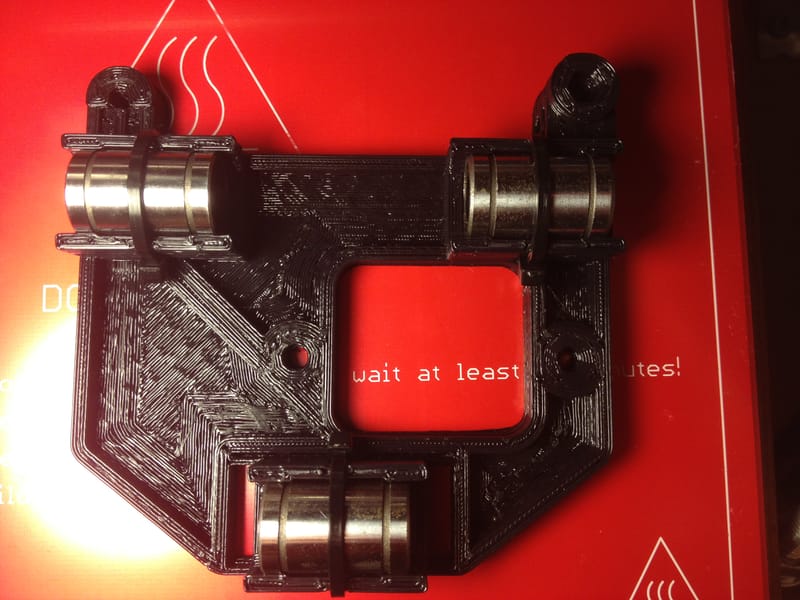

Linear Bearings Secured onto the X-Carriage

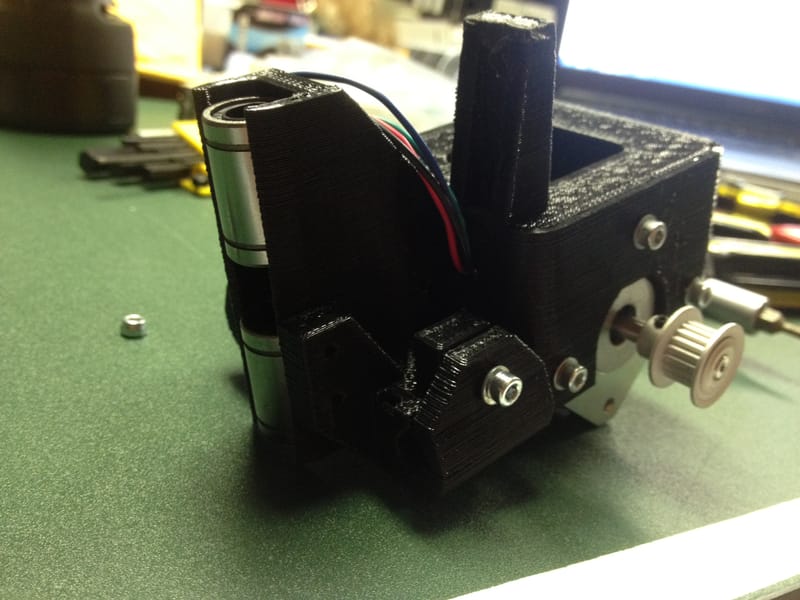

X-Motor Mount Assembled with Linear Bearings and Stepper Motor

Heated Bed (12V 11A) over Aluminum Foil Tape to Reflect Infrared Radiation — Cardboard Insulator Used as Well

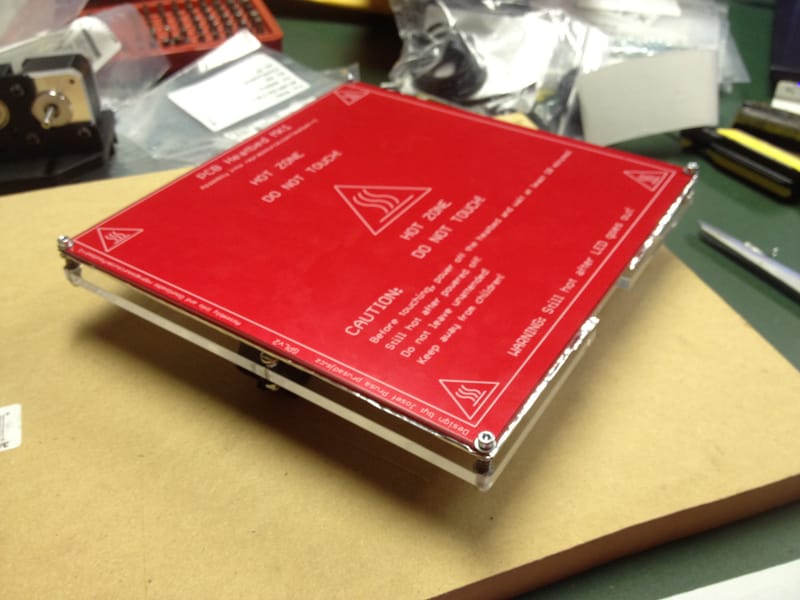

Heated Bed with Aluminum Foil Insulator

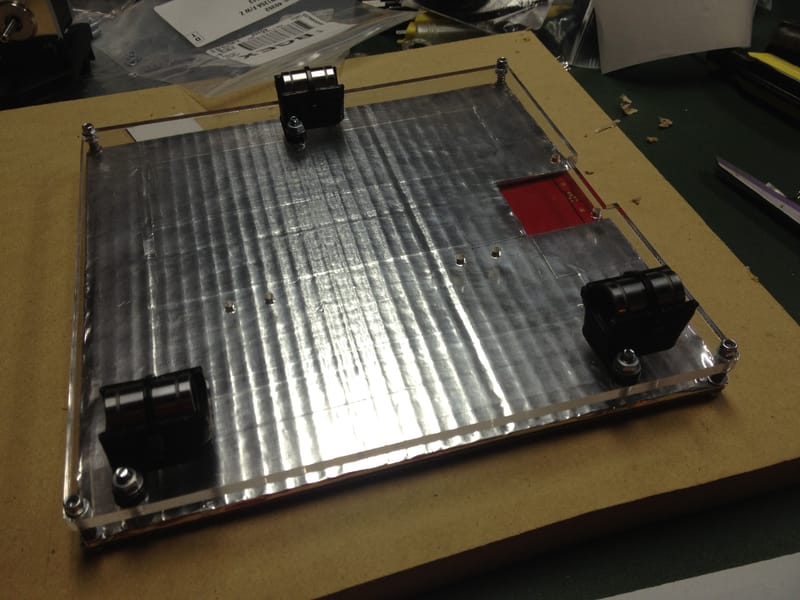

Underside of Print-Bed with Bearings

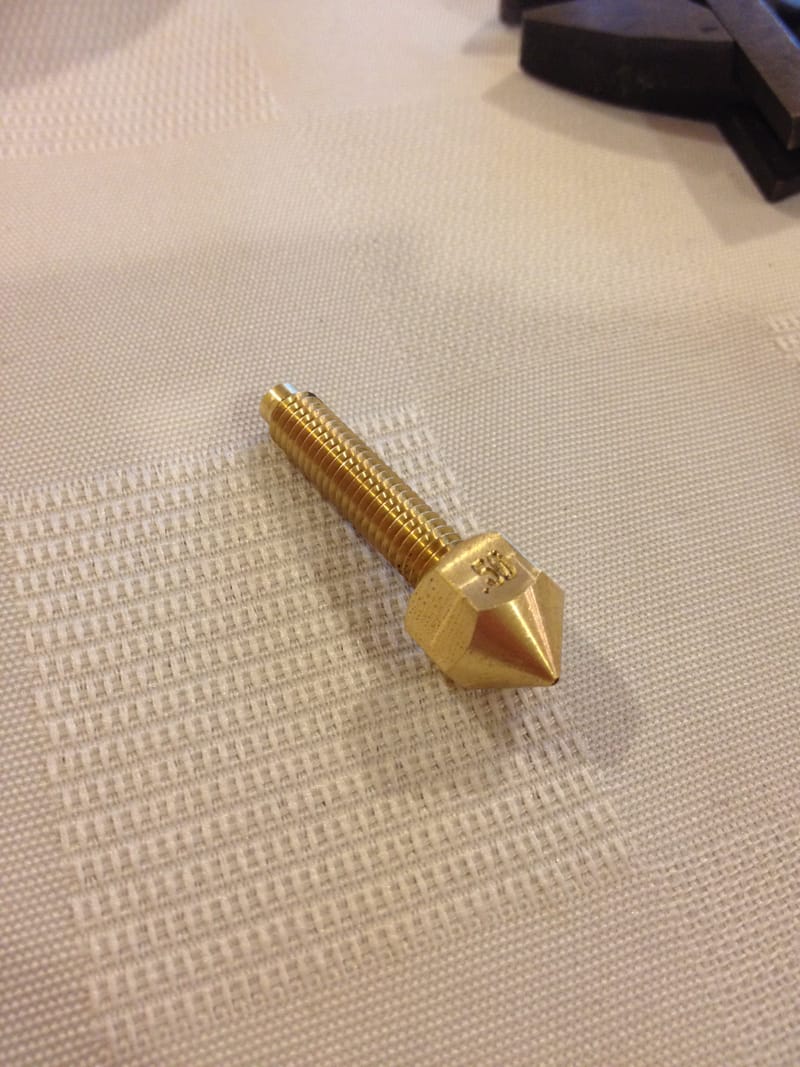

Brass Nozzle and Threaded Pipe Assembly

Creating the Ceramic Heat Core with Crimps and Covering in Layers of Ceramic Paste (To Be Cured in an Oven)

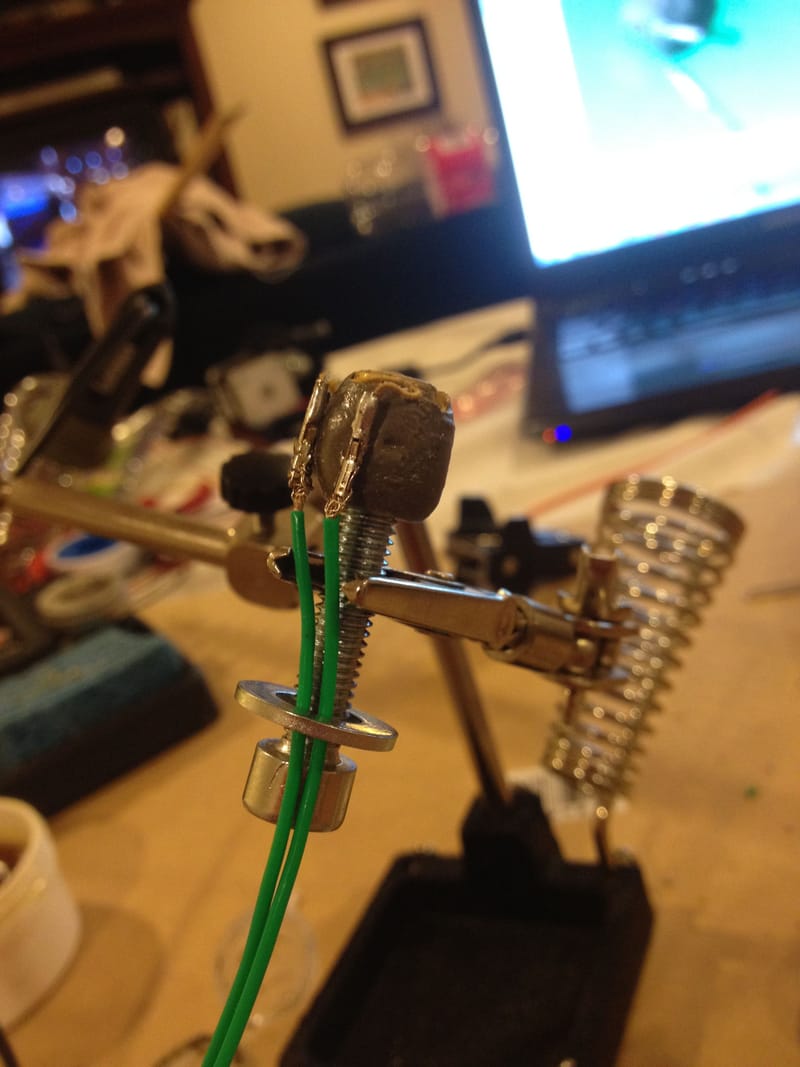

Creating the Ceramic Heat Core

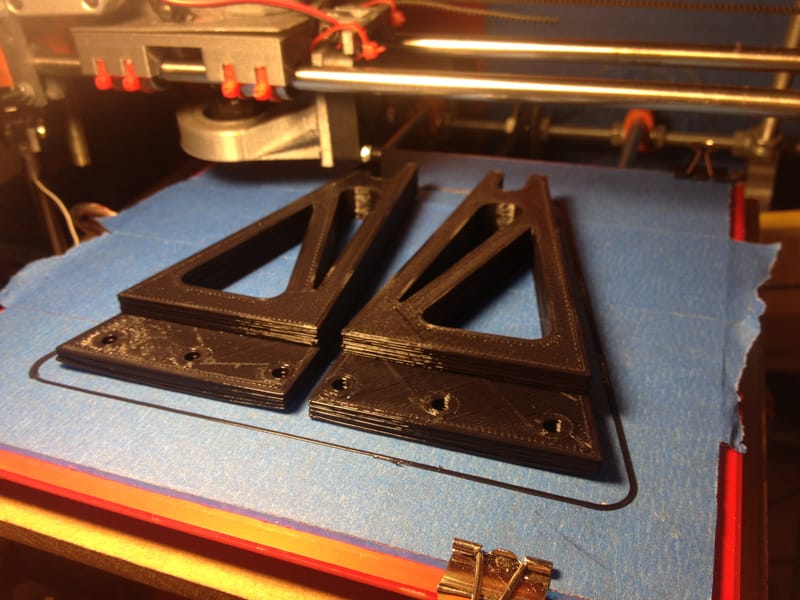

Printing Filament Spool Holders

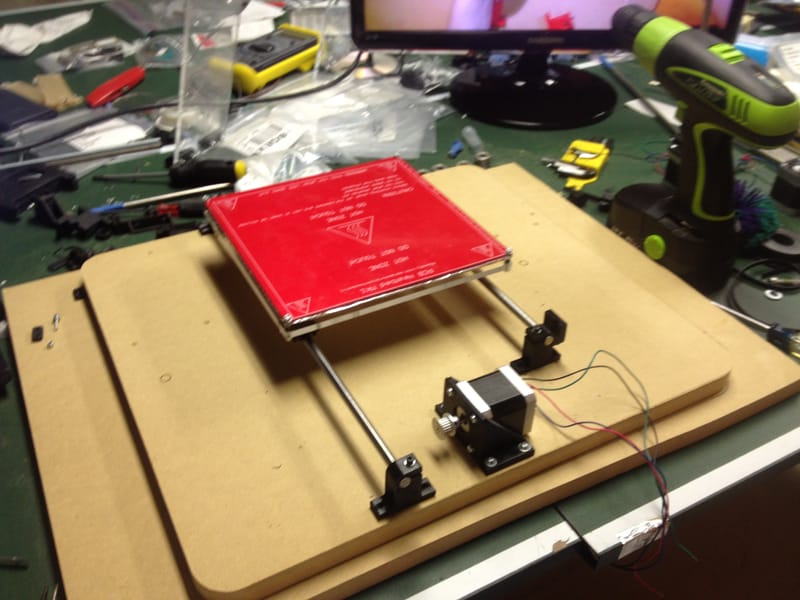

Testing Component Alignment on MDF

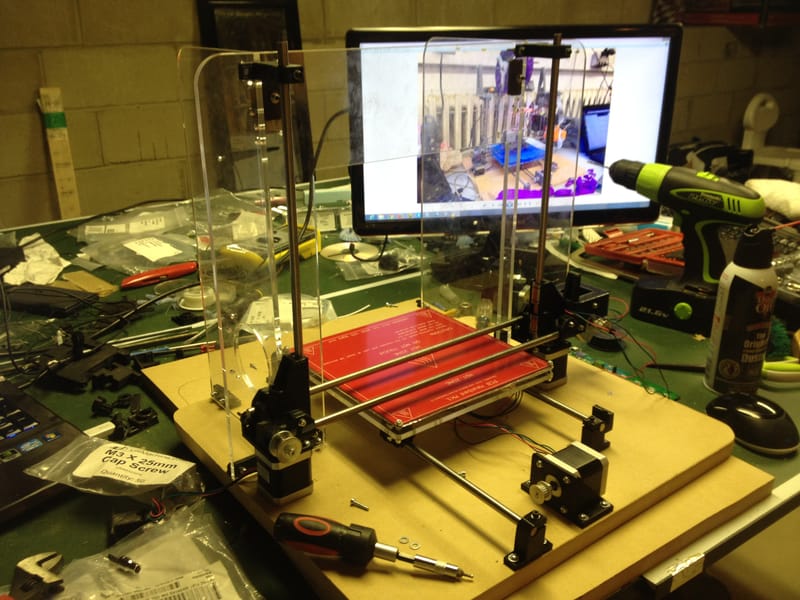

Orthogonal Acrylic Frame Squared Away — Y-Axis Secured and X-Axis Attached by Stainless Steel Round Bar

Frame Squared — Y and X Axes Attached

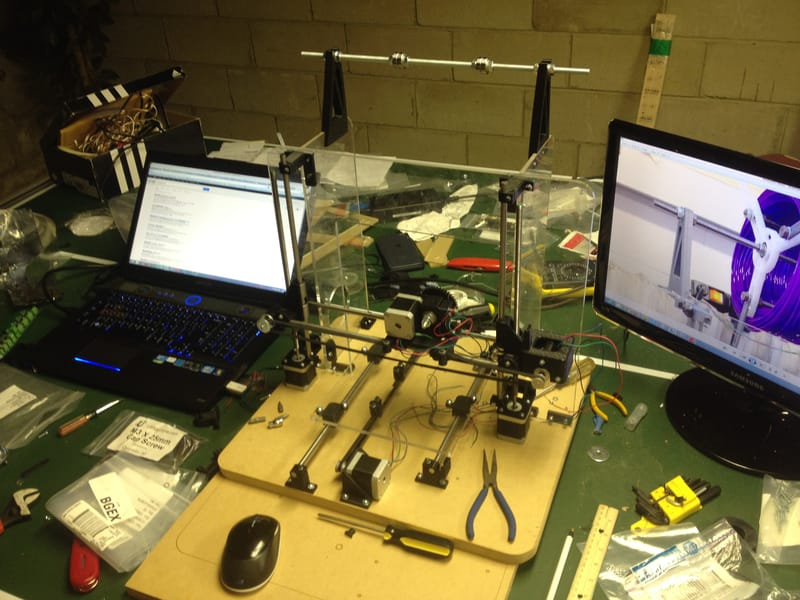

Heated Bed Removed to Tension Y-Axis GT2 Belts

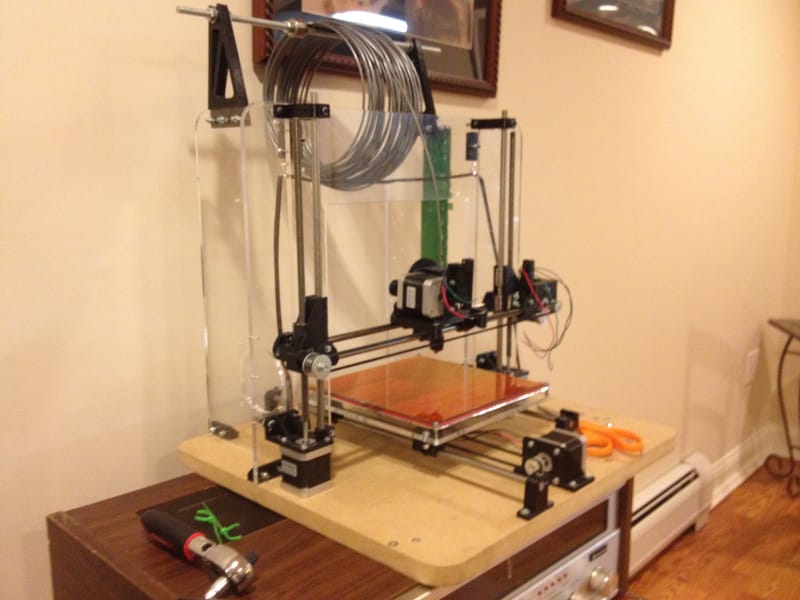

Mendel90 Construction So Far — Power Supply on Order

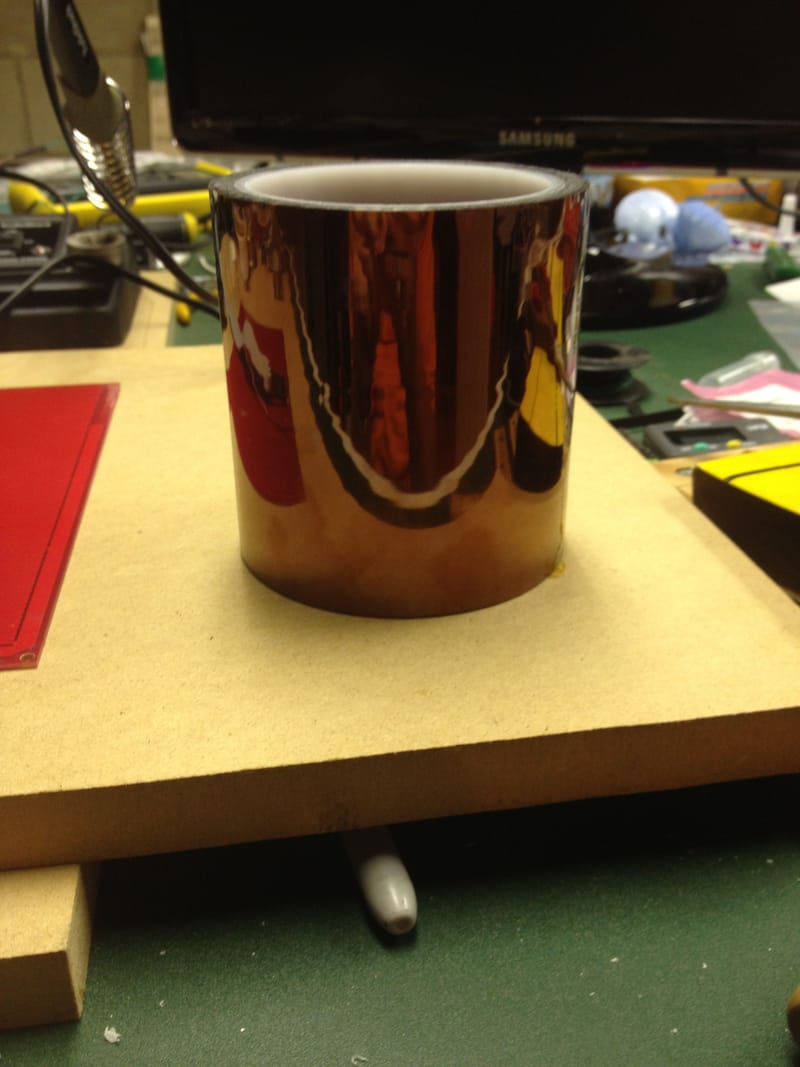

Kapton Polyimide Tape Used to Cover the Glass Panels — When Heated, Adheres Well to Other Polymers (PLA / ABS)

Kapton Tape on Glass Print Bed

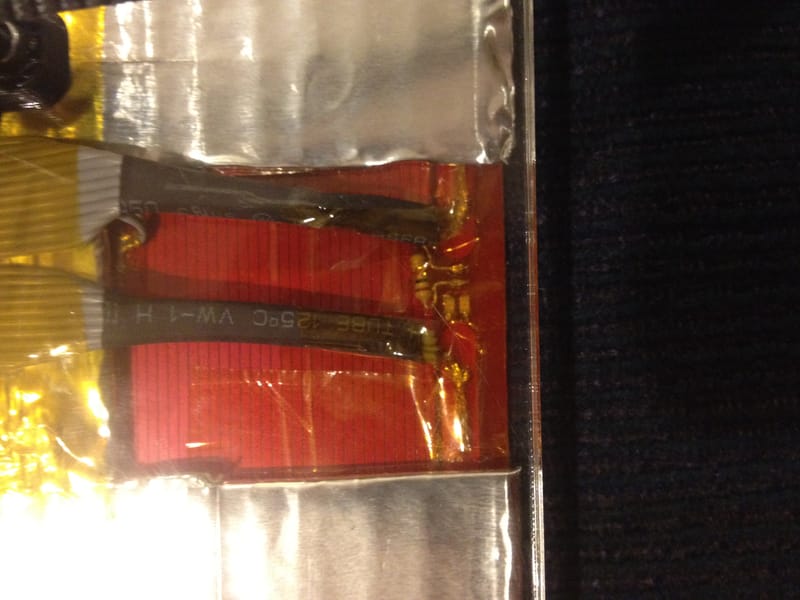

Strands of Ribbon Wire Connected to Support Higher Current (1.1A / Cable) — Ribbon Cable Used for Clean Rolling Action

Ribbon Wire for Higher Current Capacity

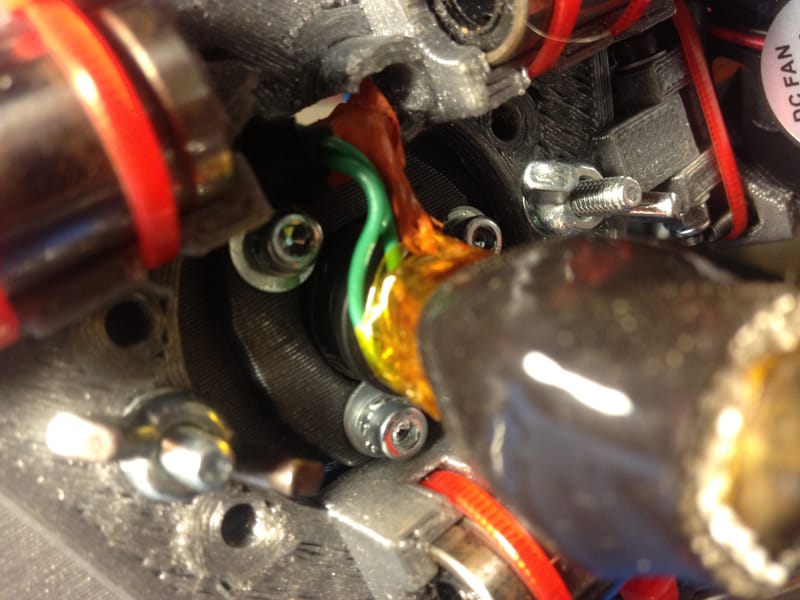

Hot End in PEEK, Secured to Extruder

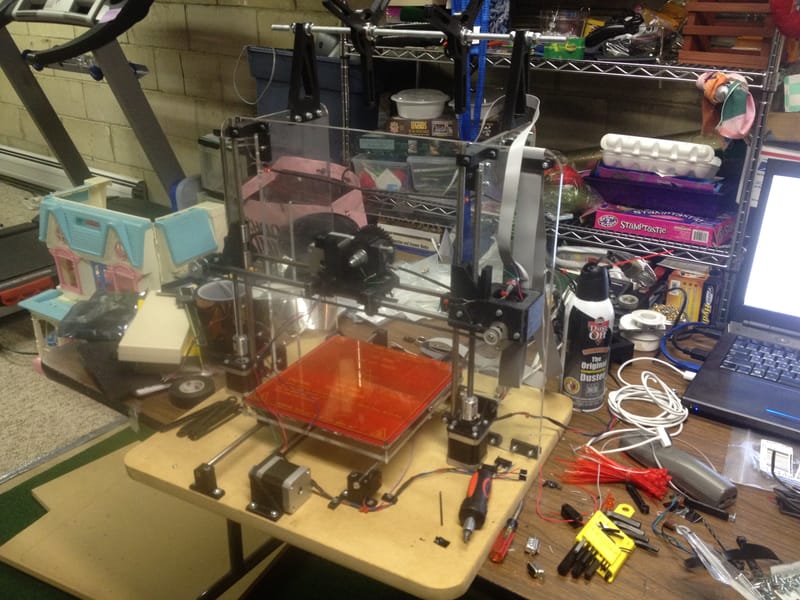

Most of the Ribbon Cable Wiring Completed

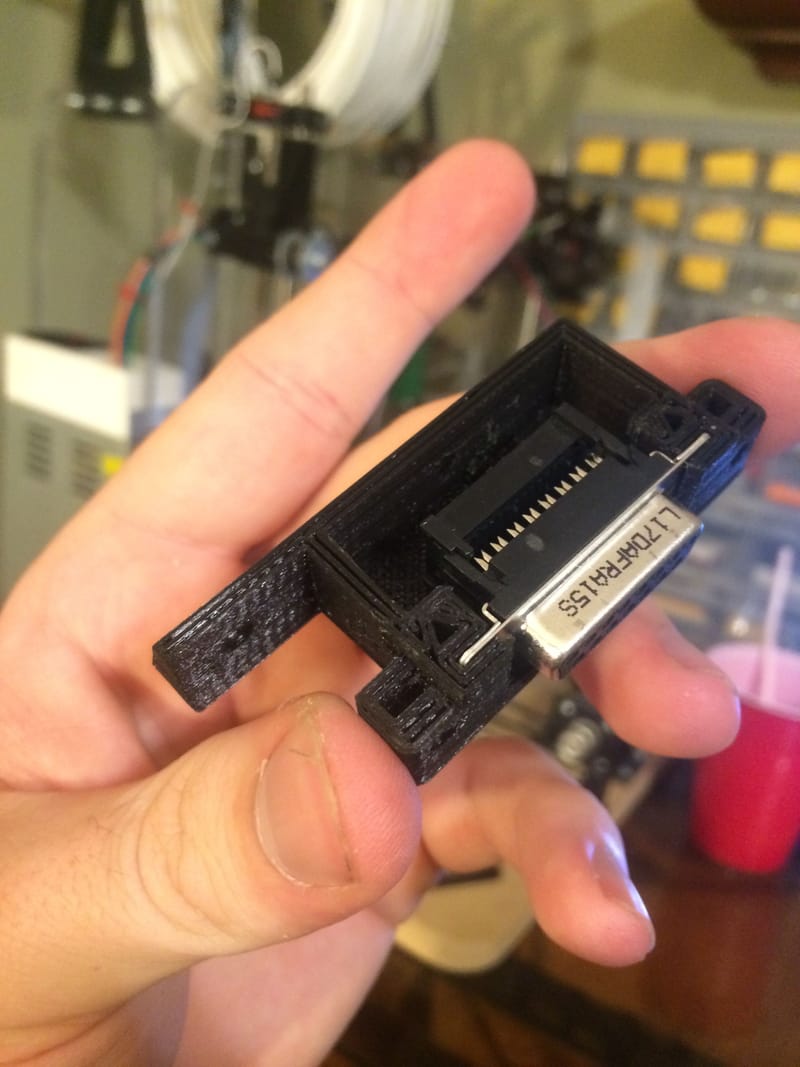

3D Printed Serial Connector for Extruder

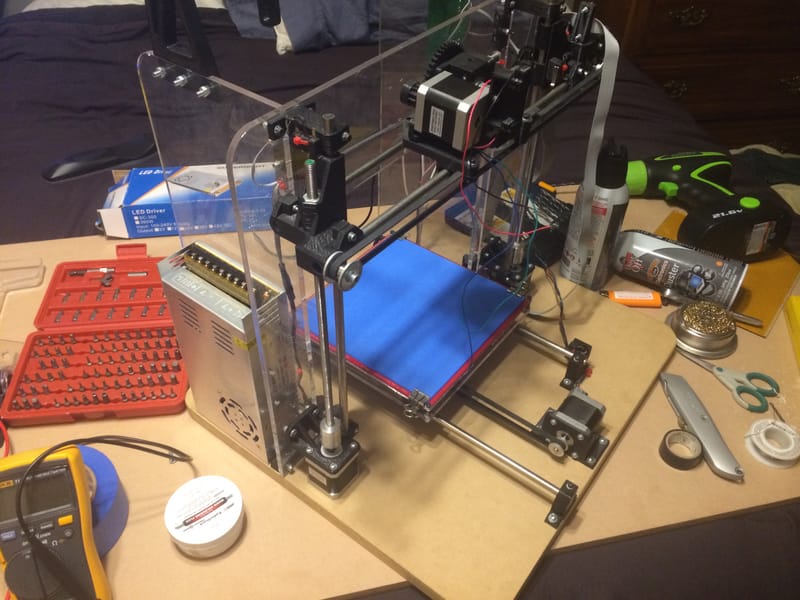

Power Supply Mounted Flush to Acrylic

Universal IEC Connectors so the Printer May Be Unplugged — Socket is Fuse Protected for Safety

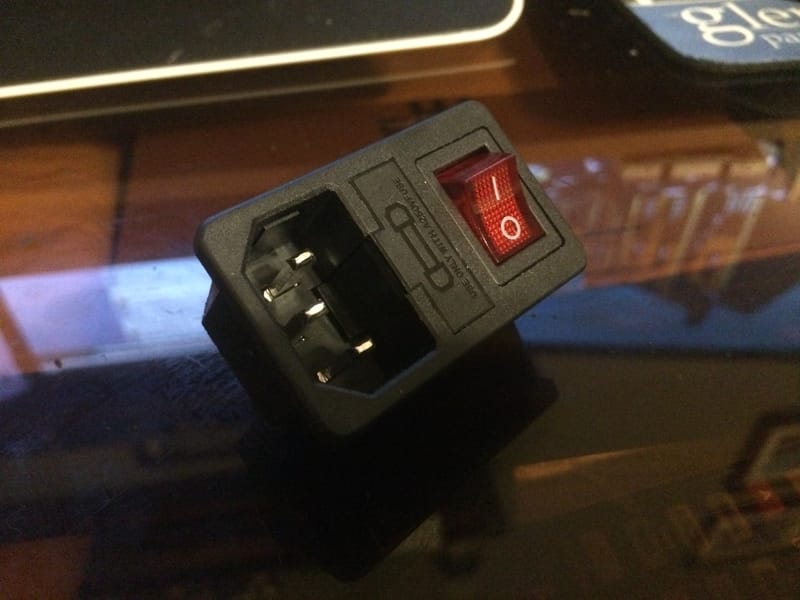

Fuse-Protected IEC Connectors

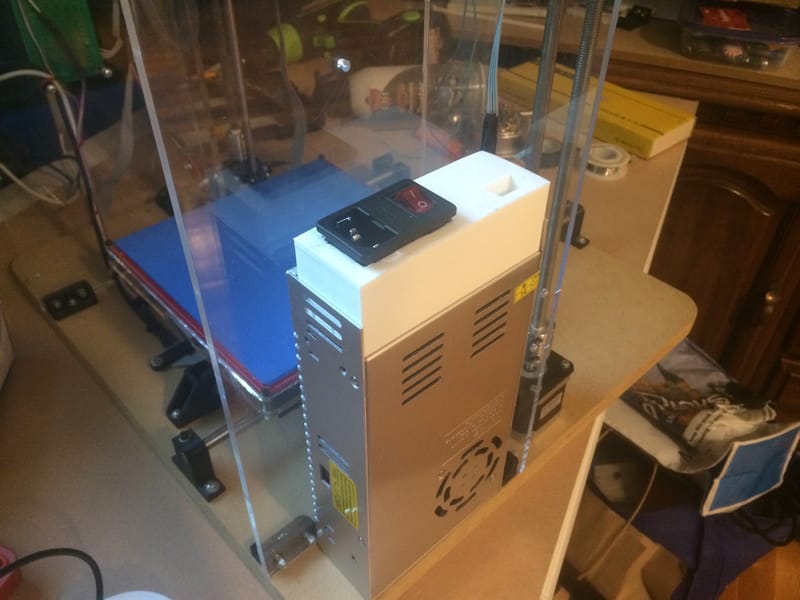

3D Printed IEC Cage Mounted onto the Power Supply

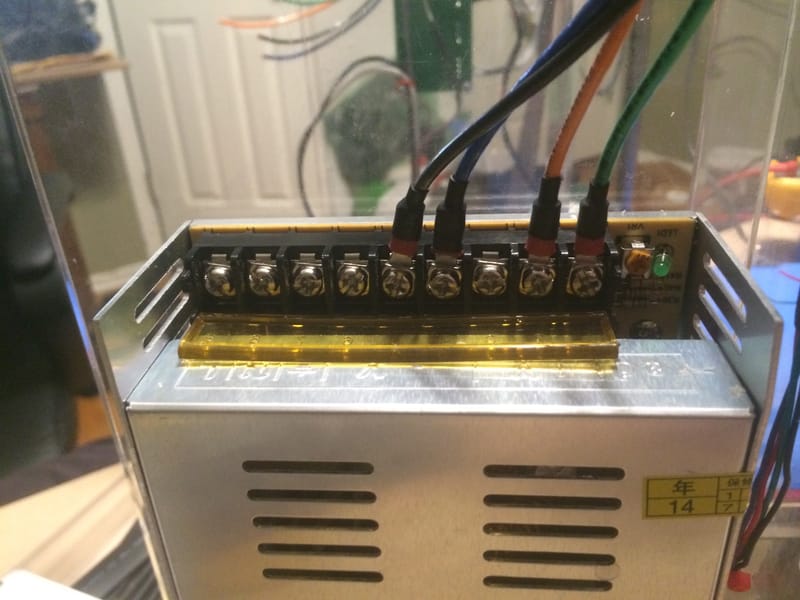

Heat Shrink Ring Terminals

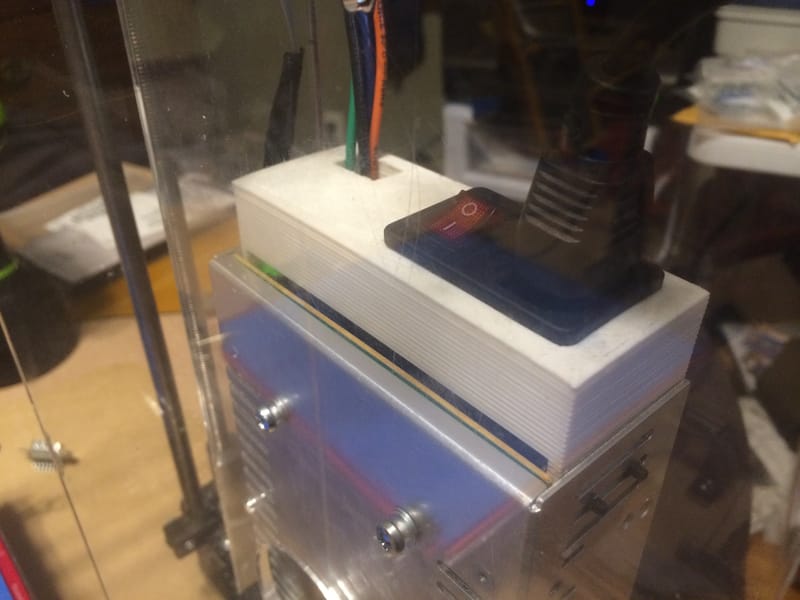

Enclosure All Sealed Up, Testing Fit and Voltage

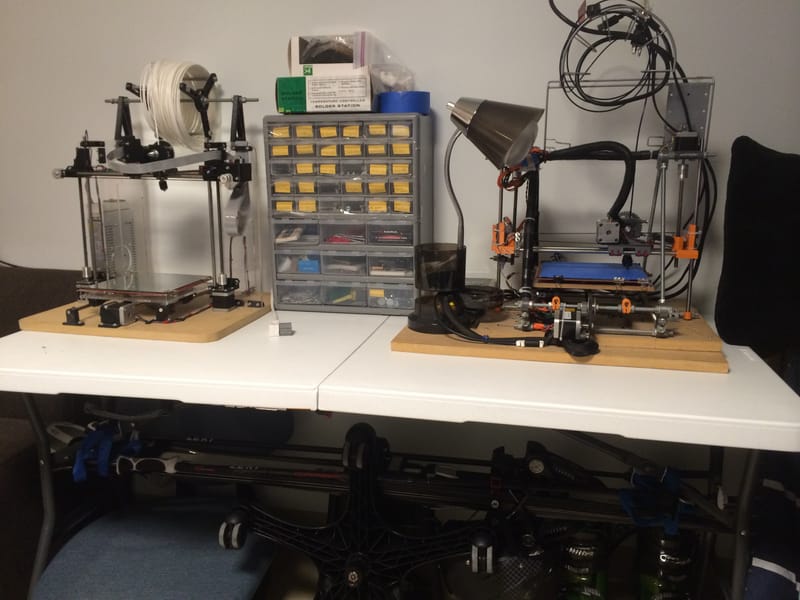

The Mendel90 on the Left, and the Prusa i2 on the Right

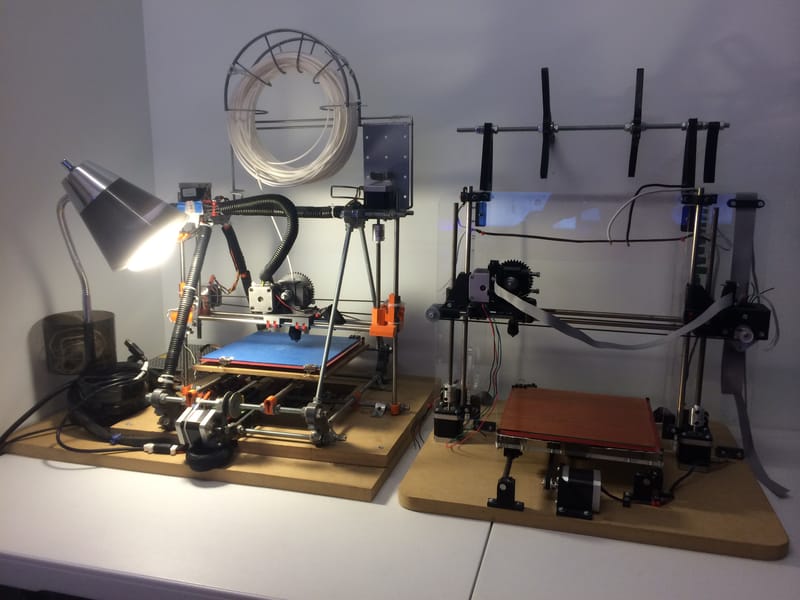

Prusa i2 and Mendel90, Mid Construction

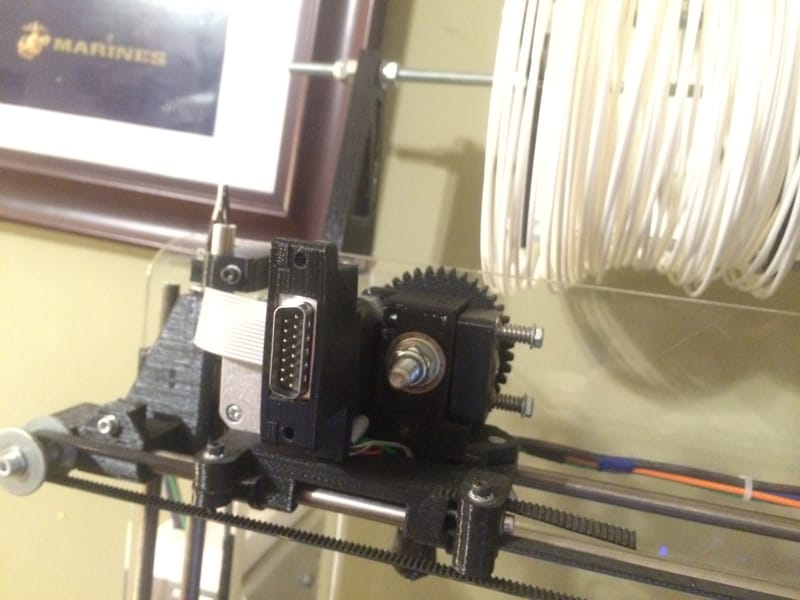

Serial Quick-Connects on Stepper Motor

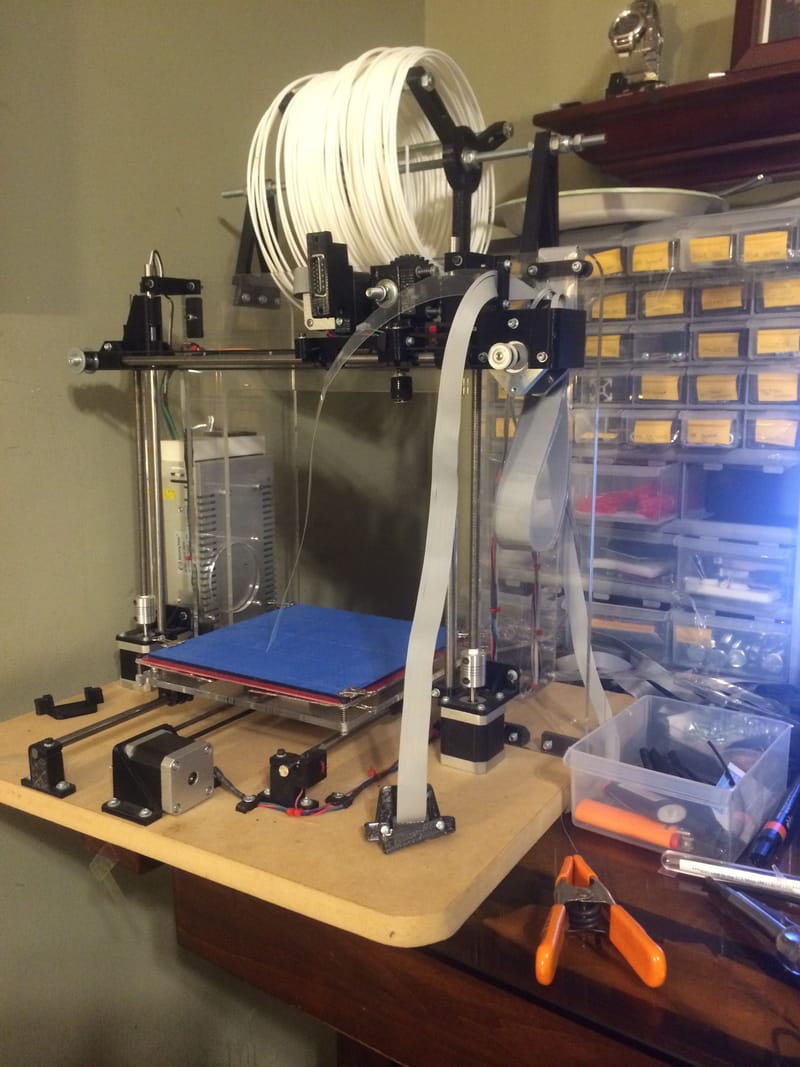

Female Connector, Disconnected

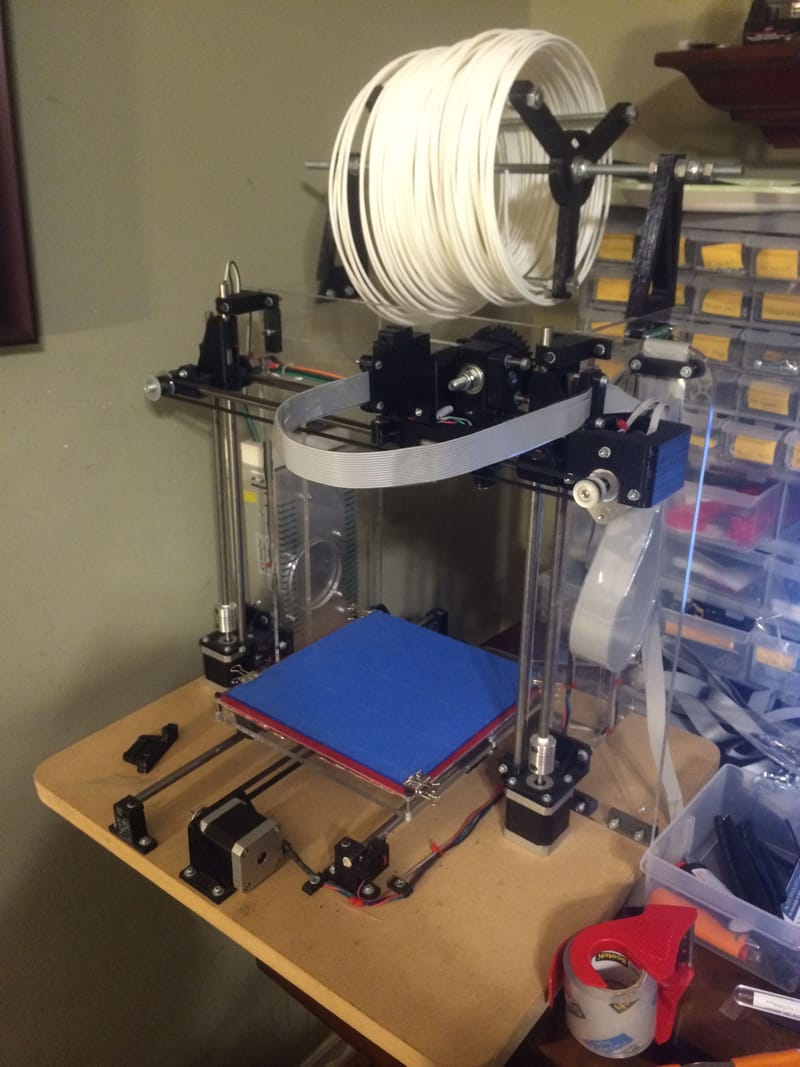

Connectors Combined — Ribbon Cable Rolling

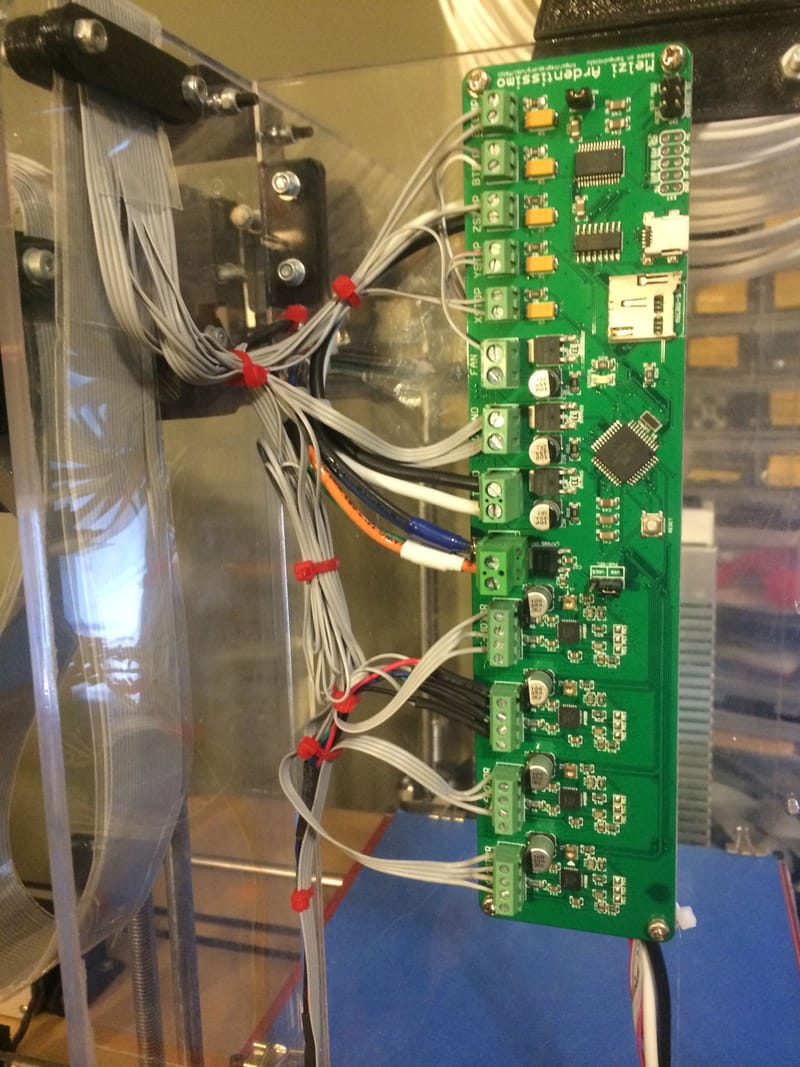

Arduino on Pololu Breakout Board

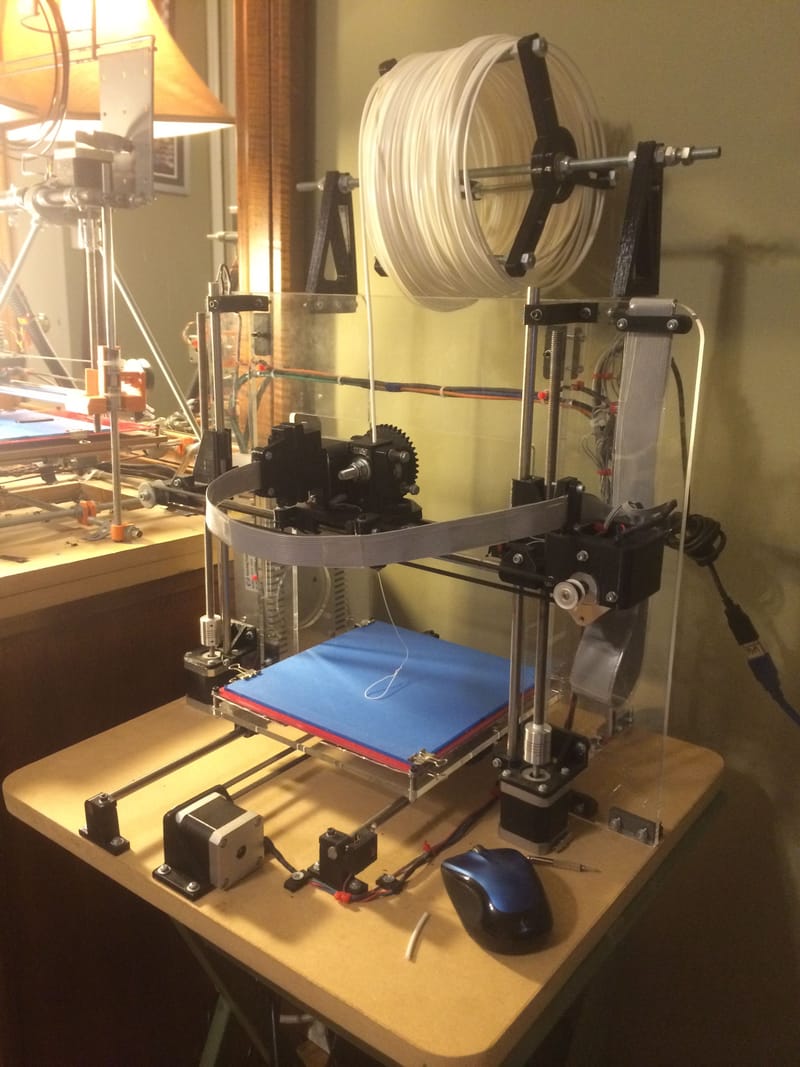

Preparing the Printer for First Calibration Prints

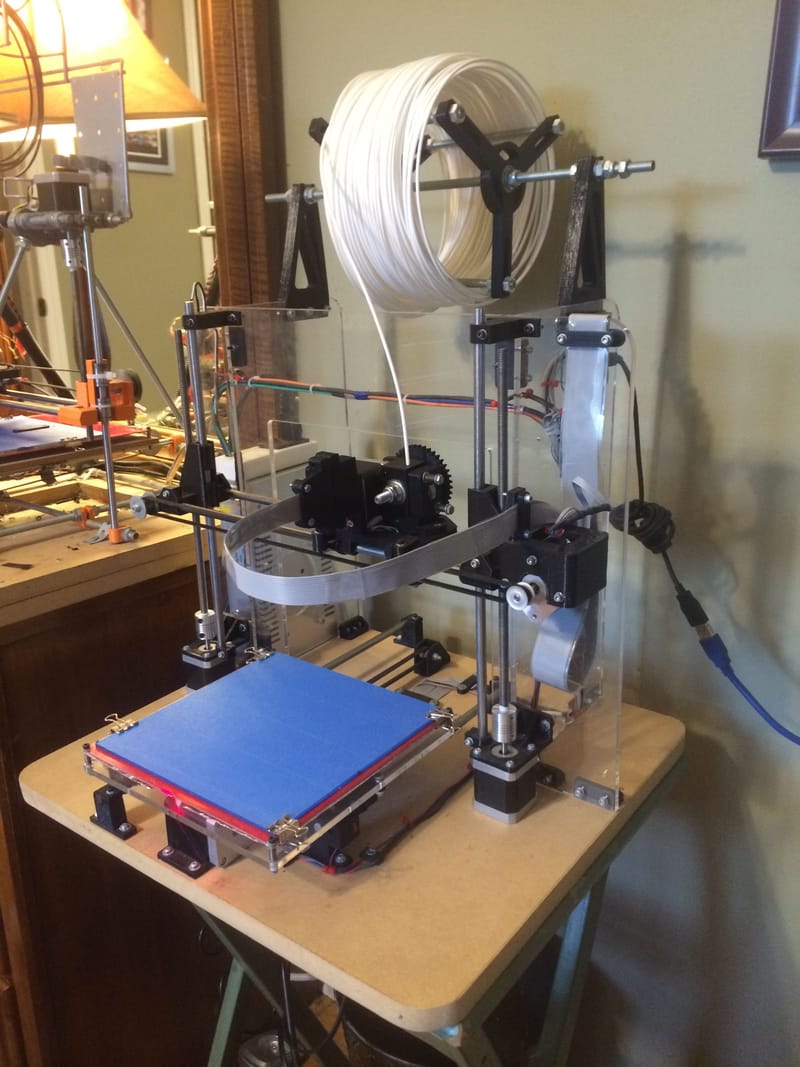

Plastic Running Through the Extruder Heating Up

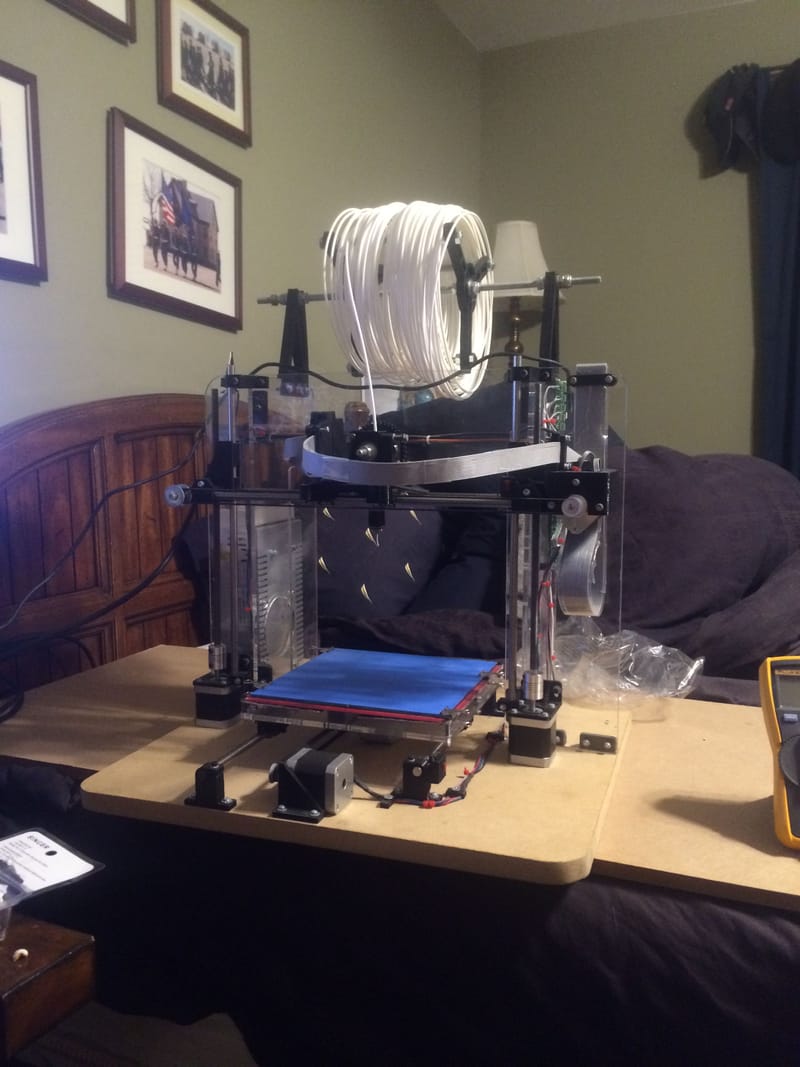

Ready for First Print

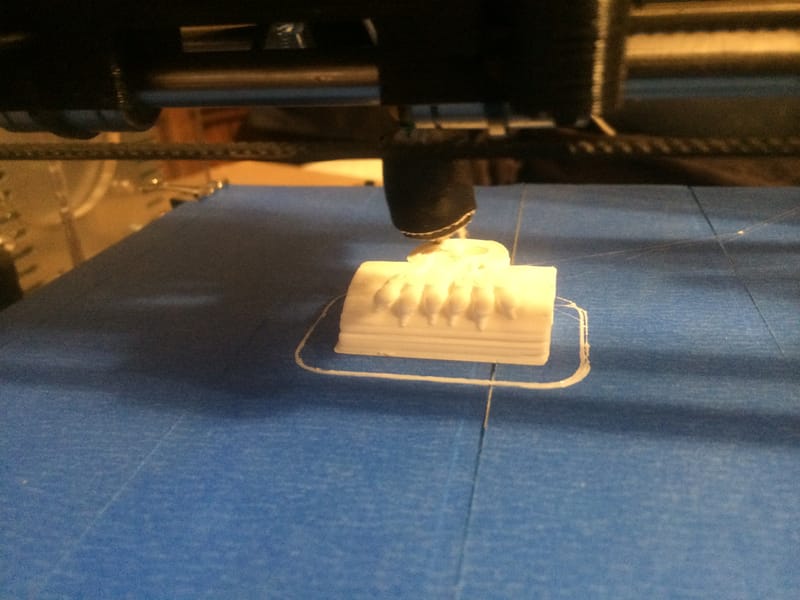

First Print — Left-Facing Owl

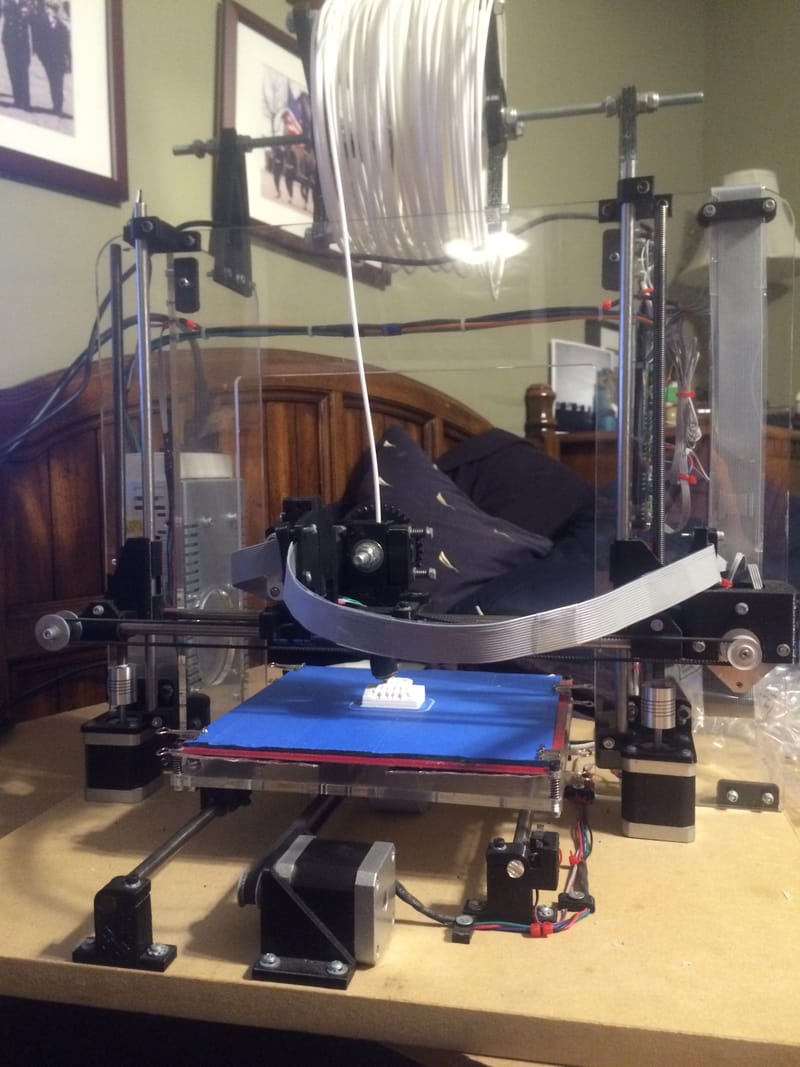

Action Shot! Printer is Printing the Owl

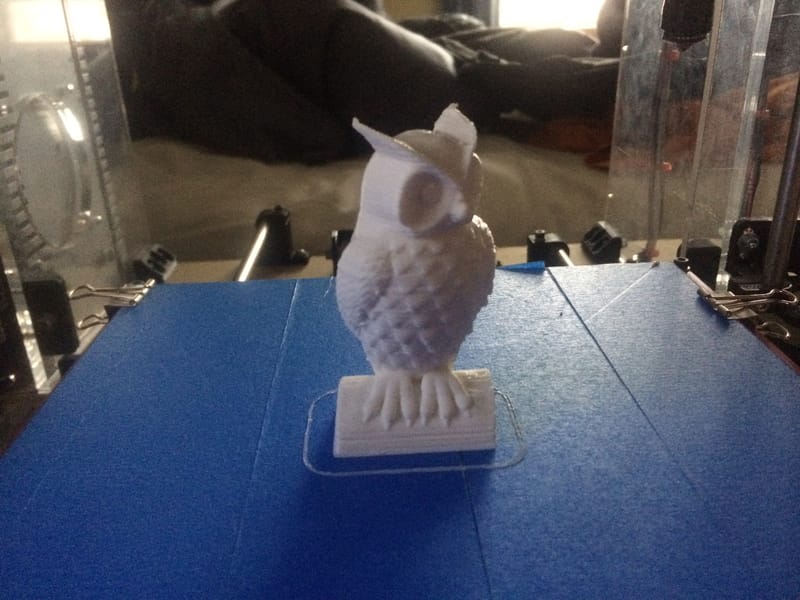

Owl Printed — Great Overhangs, No Fan

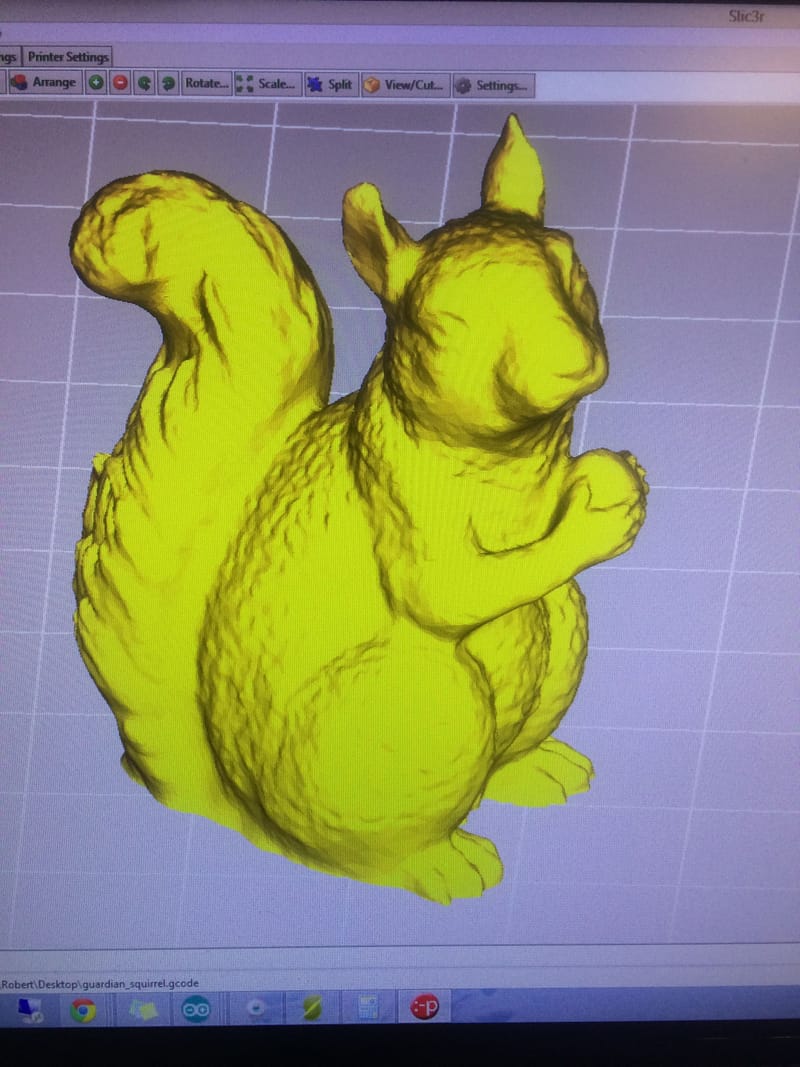

Preparing Print Number 2 — Squirrel!

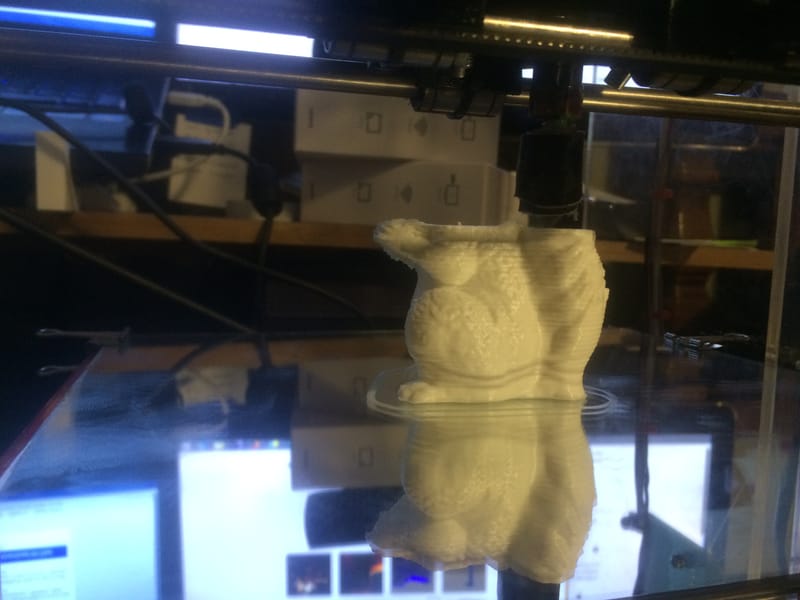

Success!
