01
Background
These are various pieces I have printed on my Prusa i2 3D-Printer, or I've personally designed and printed with high resolution great results.
02
Photos

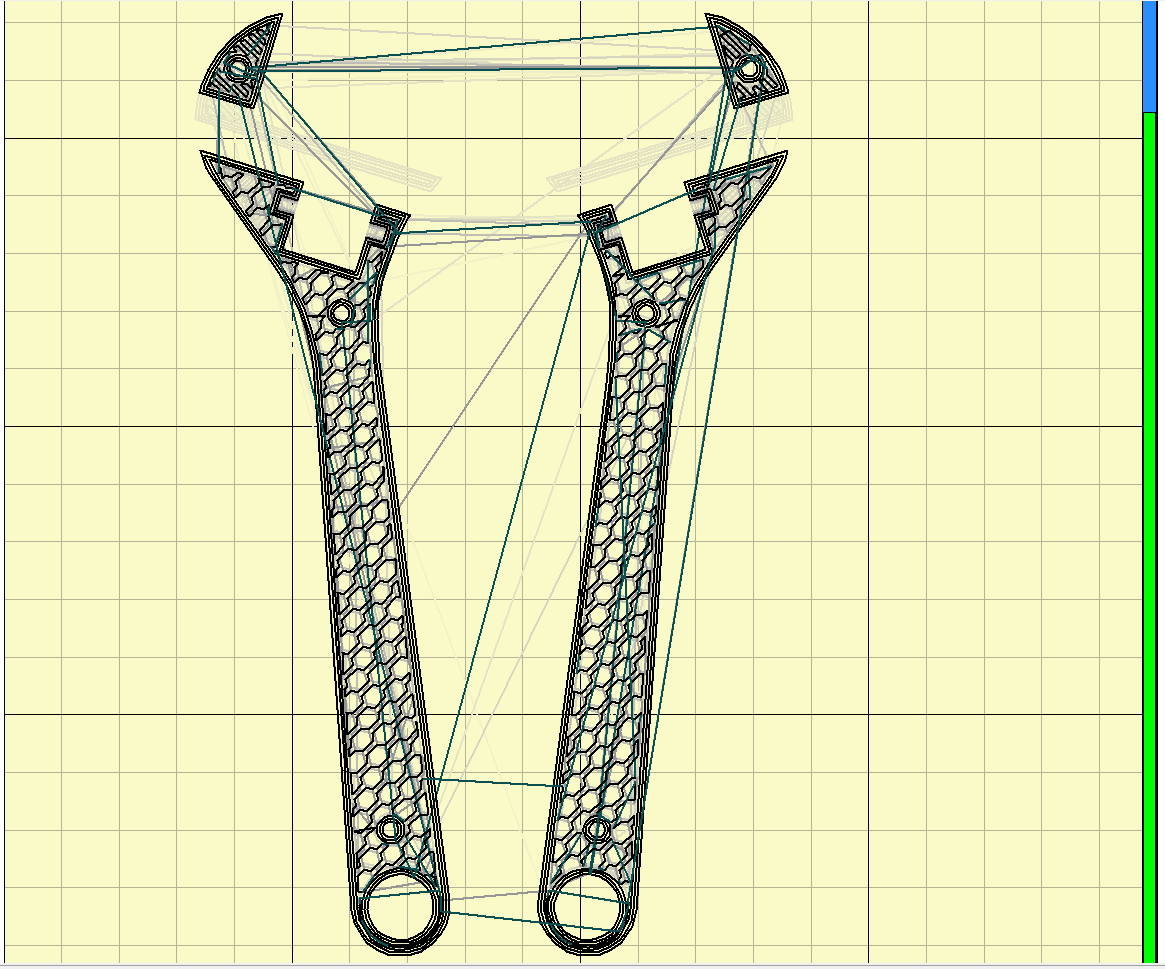

The 3D Printed Wrench in two pieces to eliminate overhangs on Pronterface.
The 3D Printed Wrench in two pieces to eliminate overhangs on Pronterface.

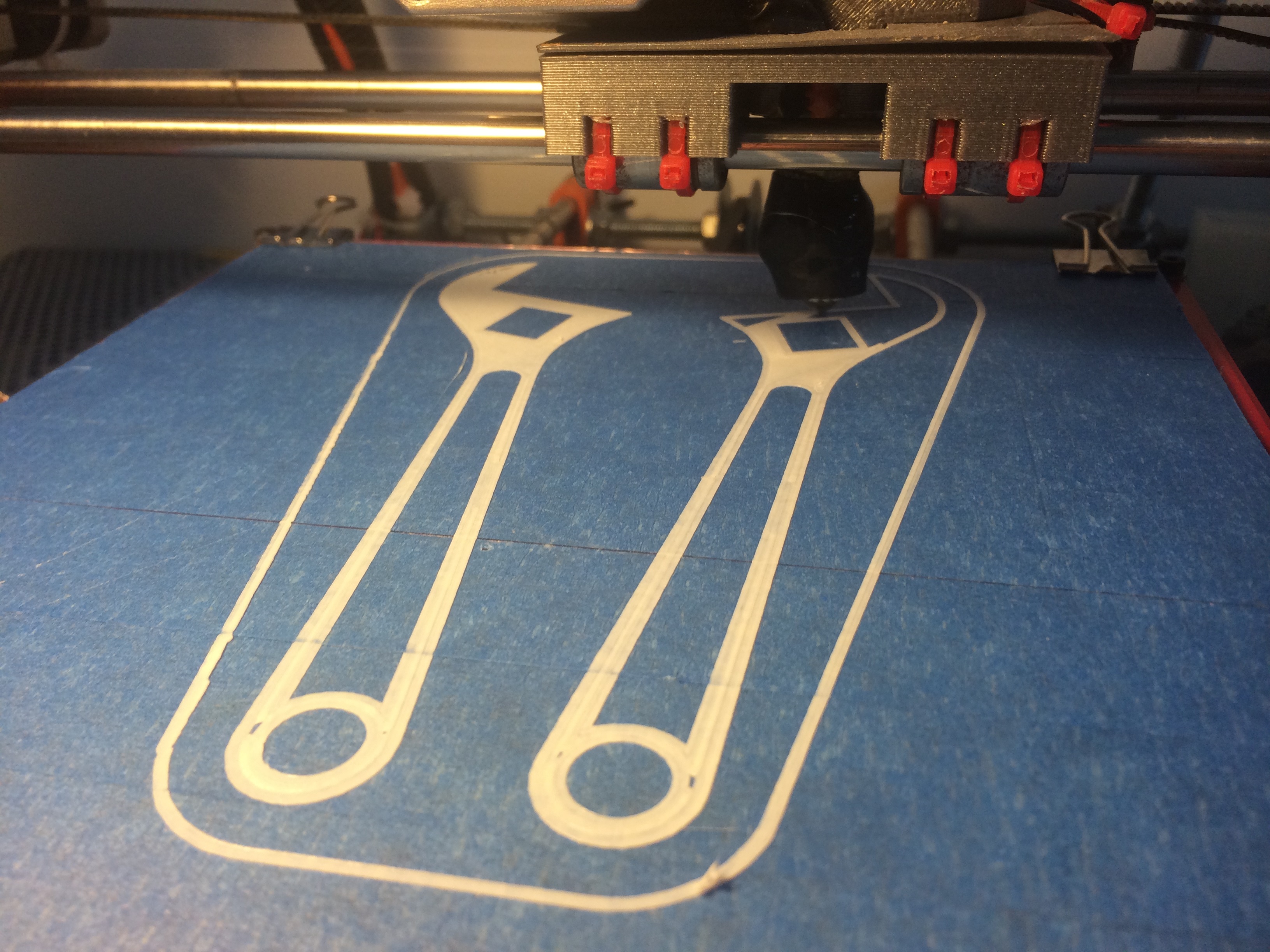

First Layer of the Print, Perimeters followed by Infill.
First Layer of the Print, Perimeters followed by Infill.

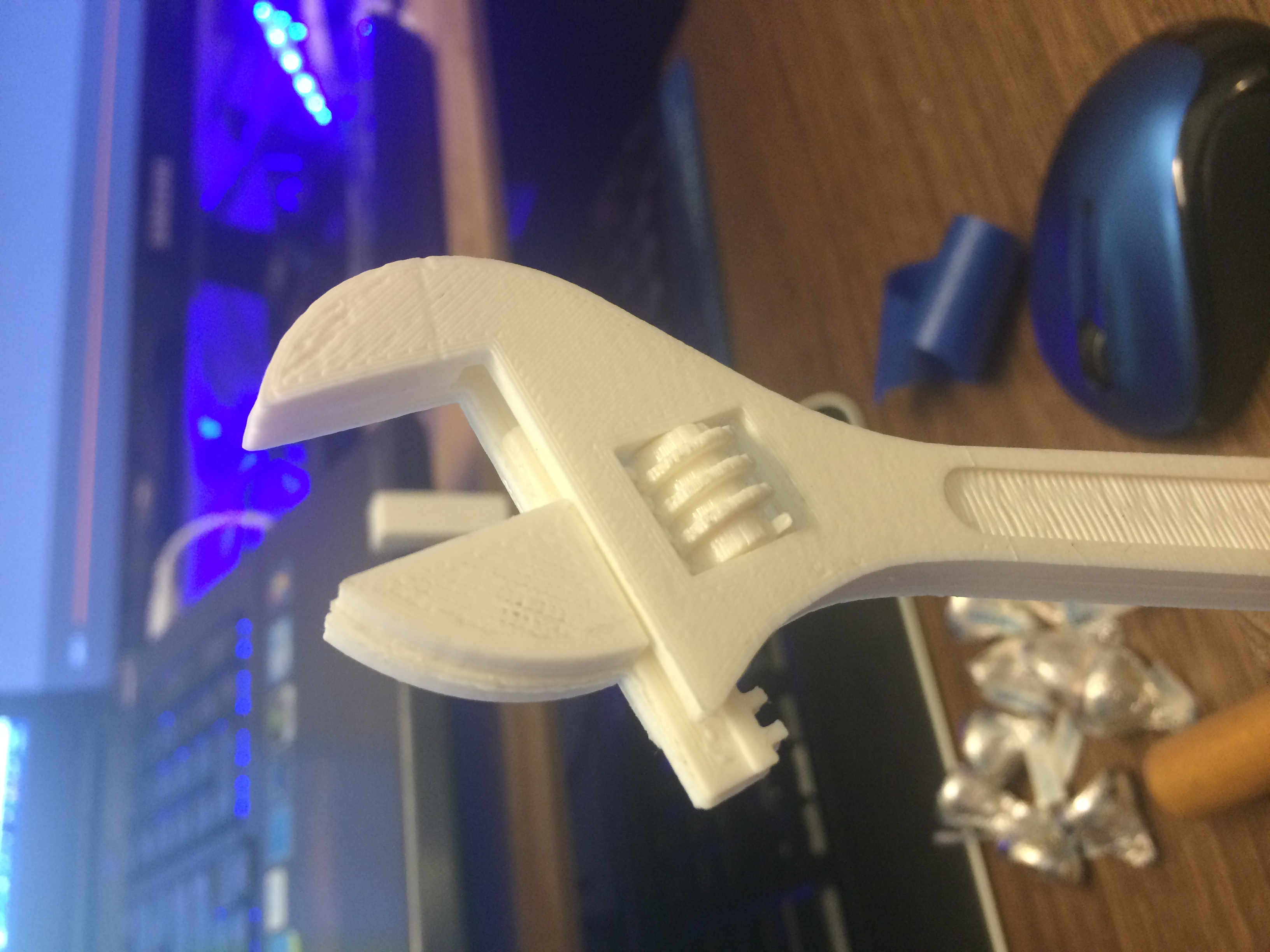

All pieces combined (2 for Base, 2 for Gear, 2 for WormGear) - Clean Results
All pieces combined (2 for Base, 2 for Gear, 2 for WormGear) - Clean Results

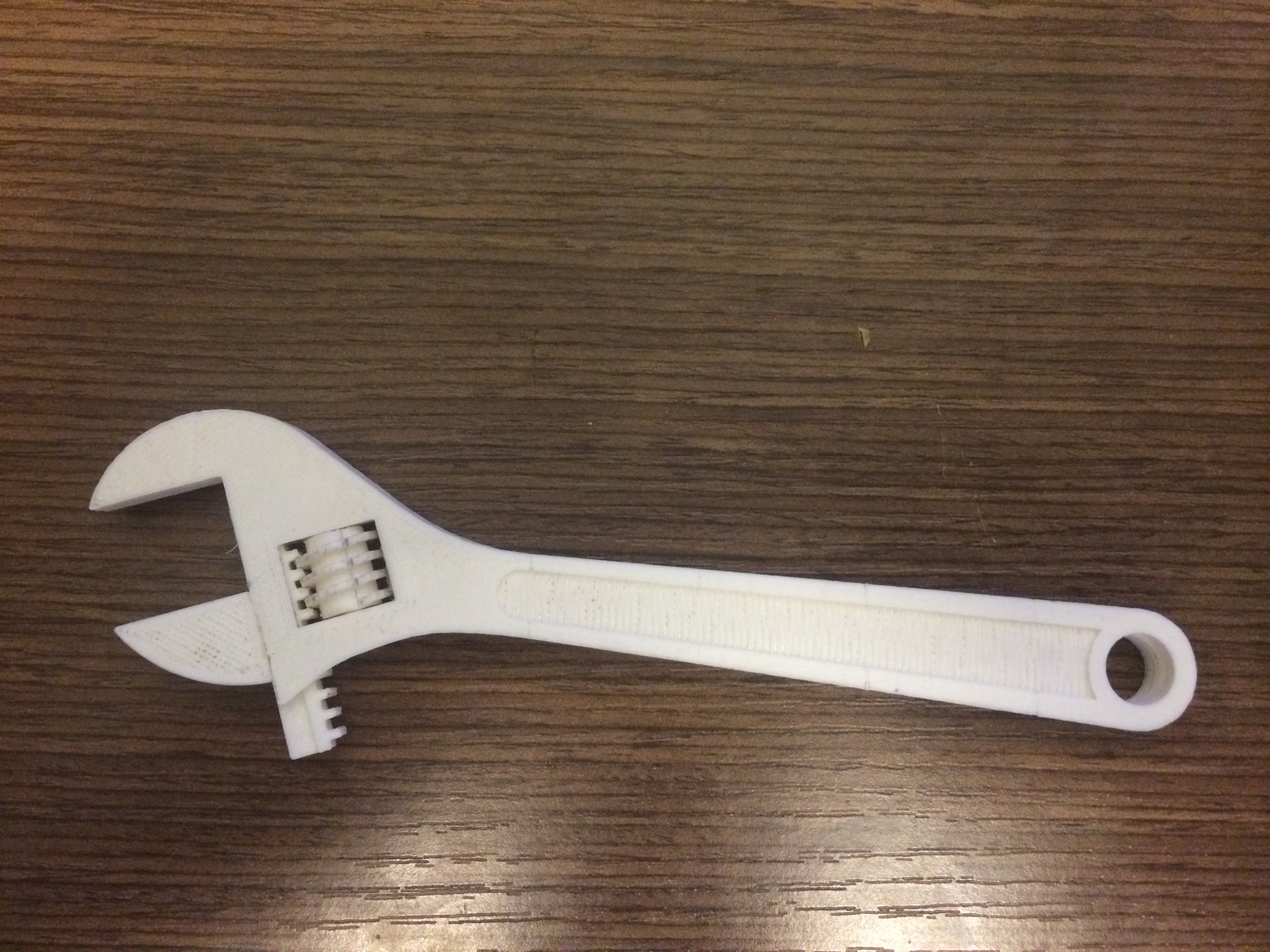

Entire Wrench on table
Entire Wrench on table

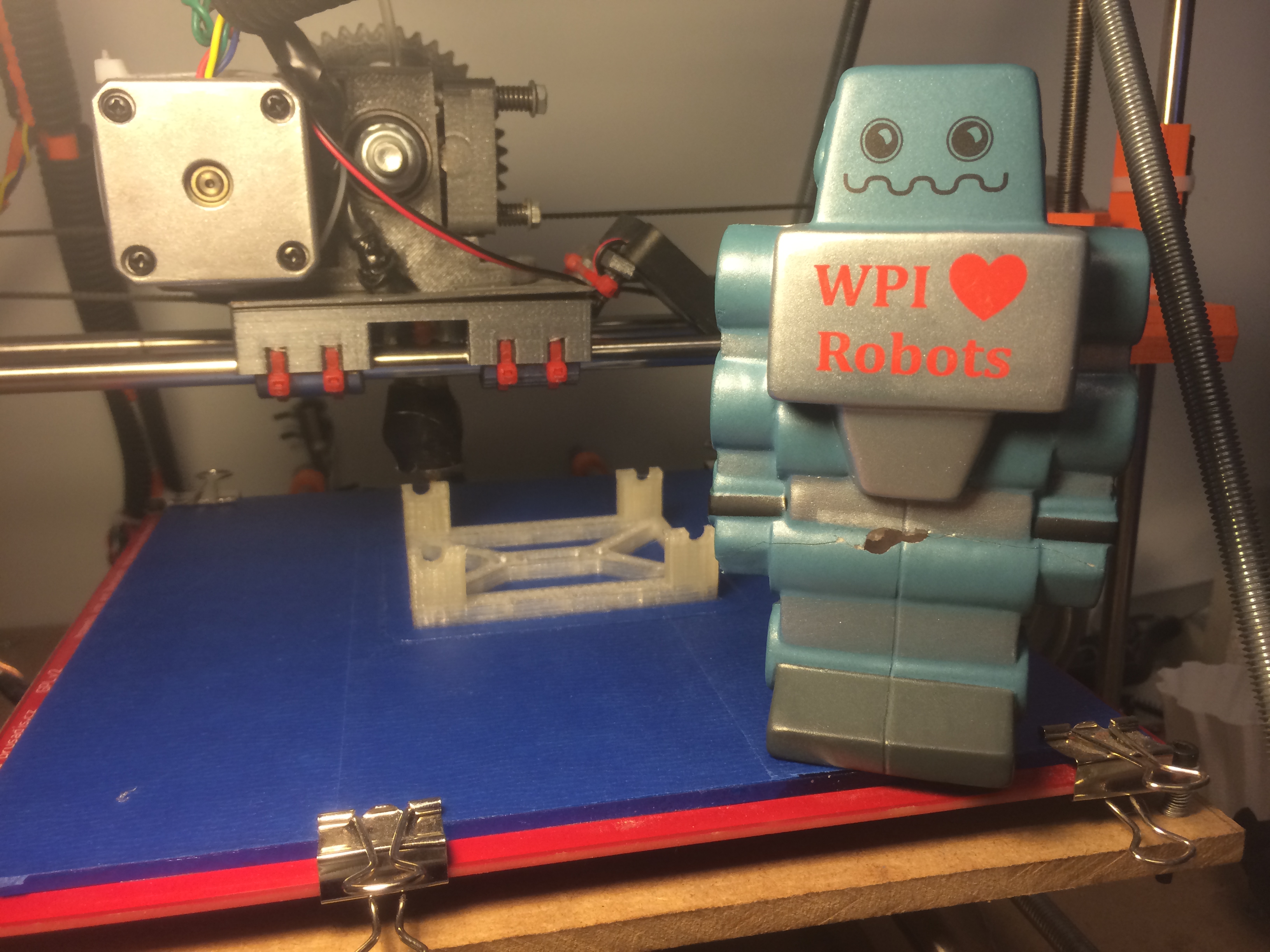

An Eraser Bracket used in the RBE 2002 (Sensing) Robot - along with a WPI Robotics Mascot.
An Eraser Bracket used in the RBE 2002 (Sensing) Robot - along with a WPI Robotics Mascot.

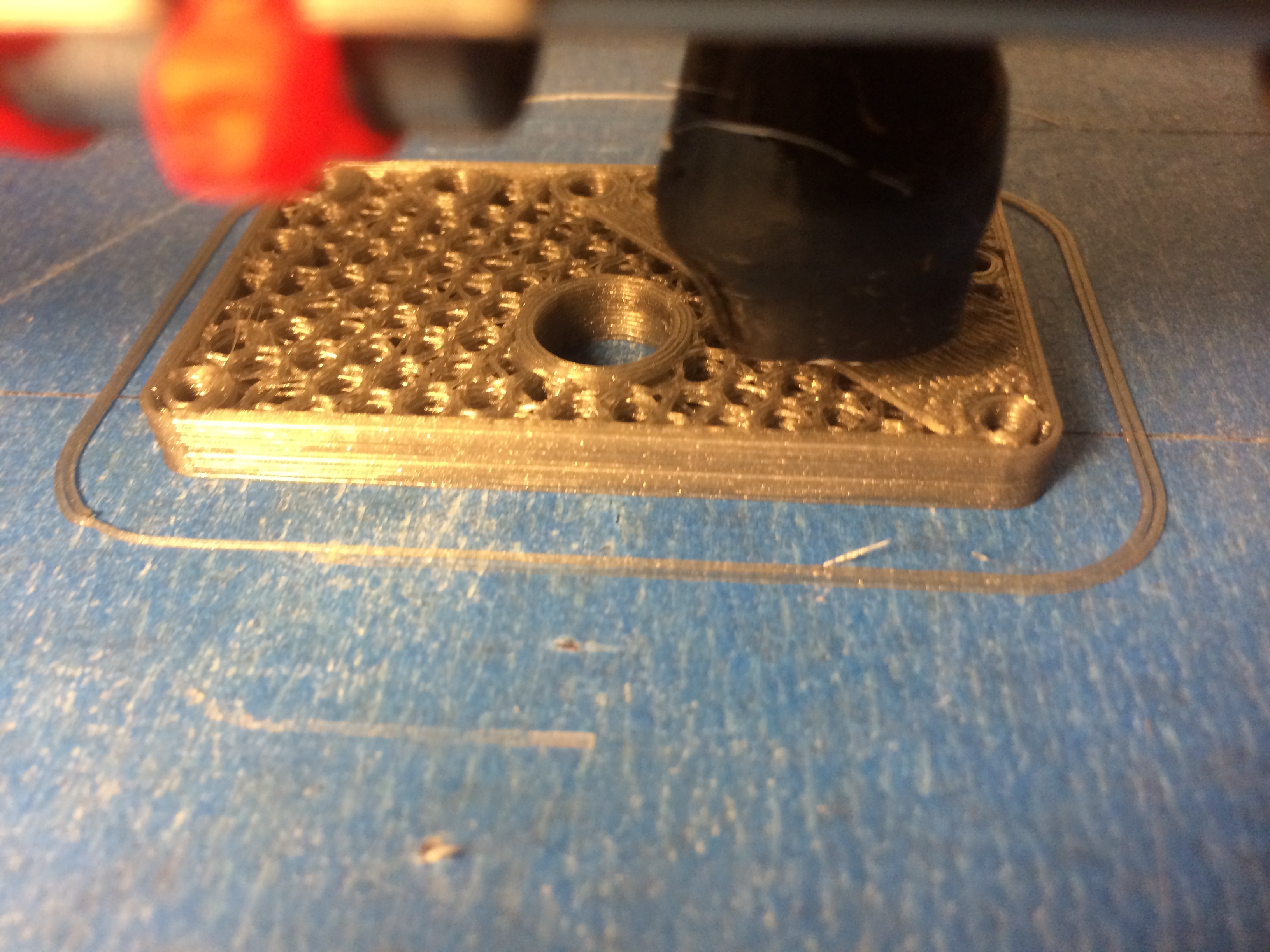

3D Printing a bracket to connect a Gripper Servo to a VEX Robotics Axle for RBE 2001 (Actuation)
3D Printing a bracket to connect a Gripper Servo to a VEX Robotics Axle for RBE 2001 (Actuation)

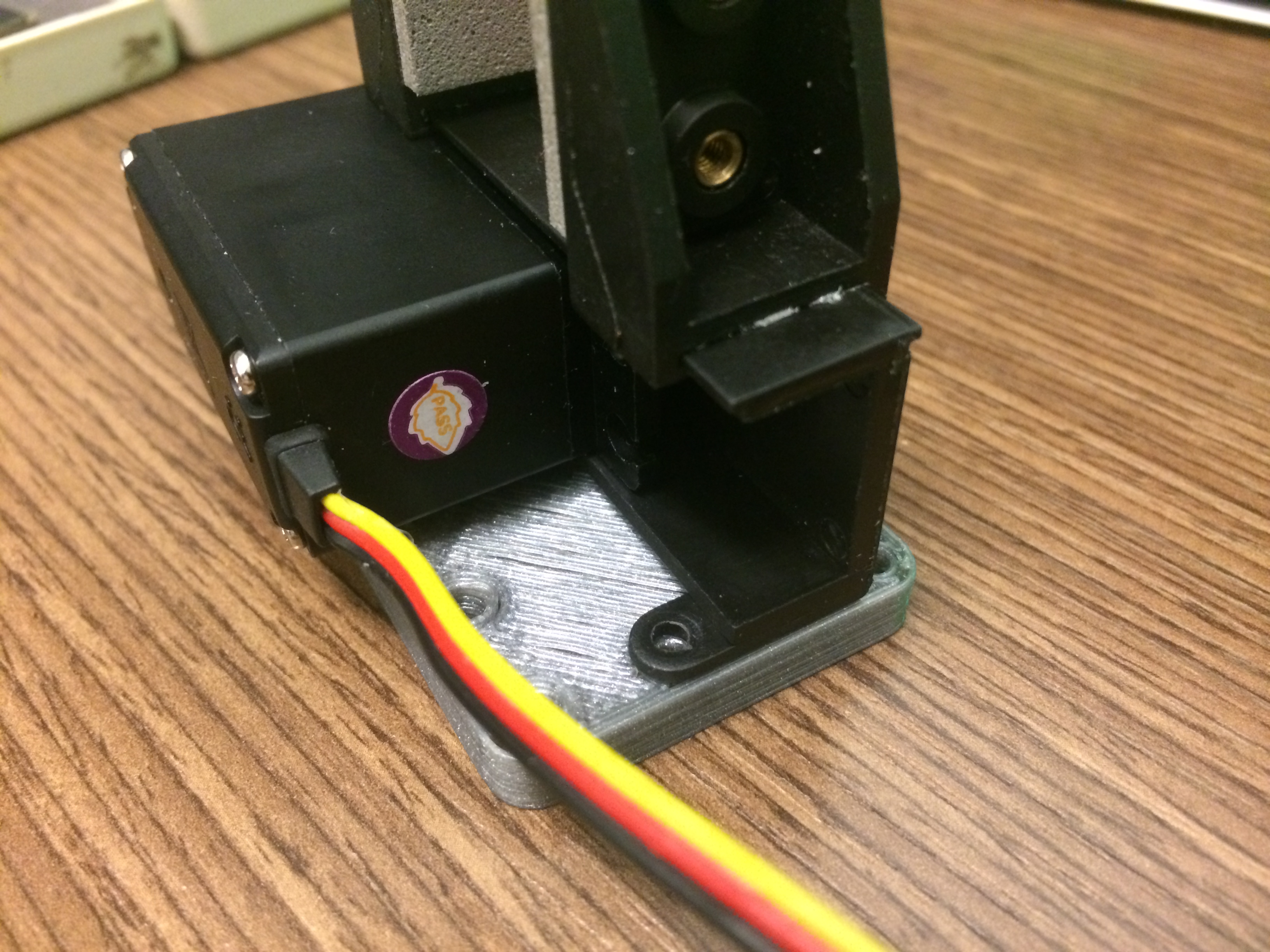

Gripper Servo fitting flush with the designed component.
Gripper Servo fitting flush with the designed component.

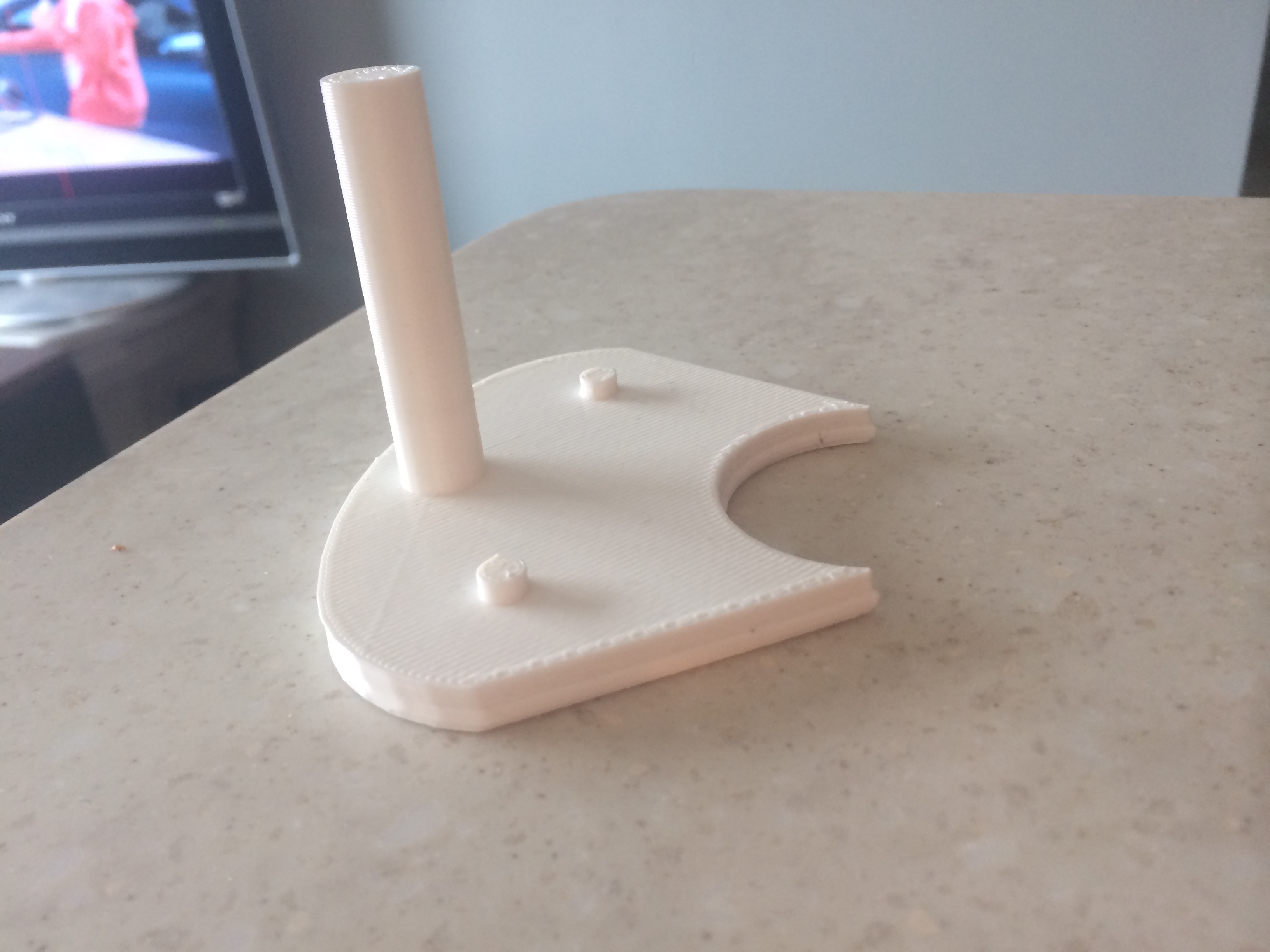

3D Printed component designed to lift IC Wafers out of Chemical Solution for processing.
3D Printed component designed to lift IC Wafers out of Chemical Solution for processing.

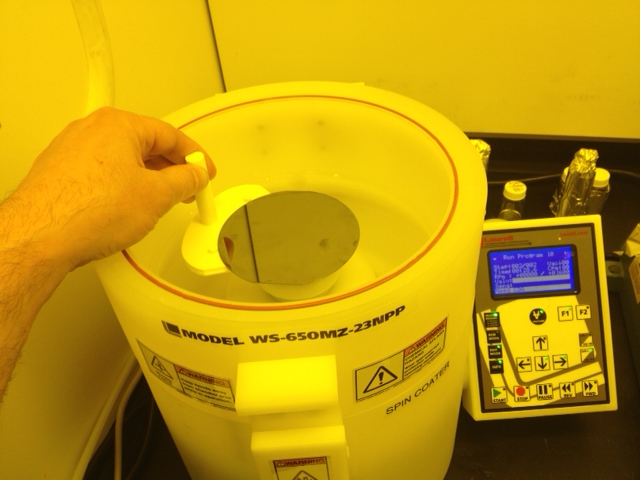

Removing a Silicon Wafer from the Solution using the 3D Printed Tool. Saved WPI 100's of dollars per tool.
Removing a Silicon Wafer from the Solution using the 3D Printed Tool. Saved WPI 100's of dollars per tool.

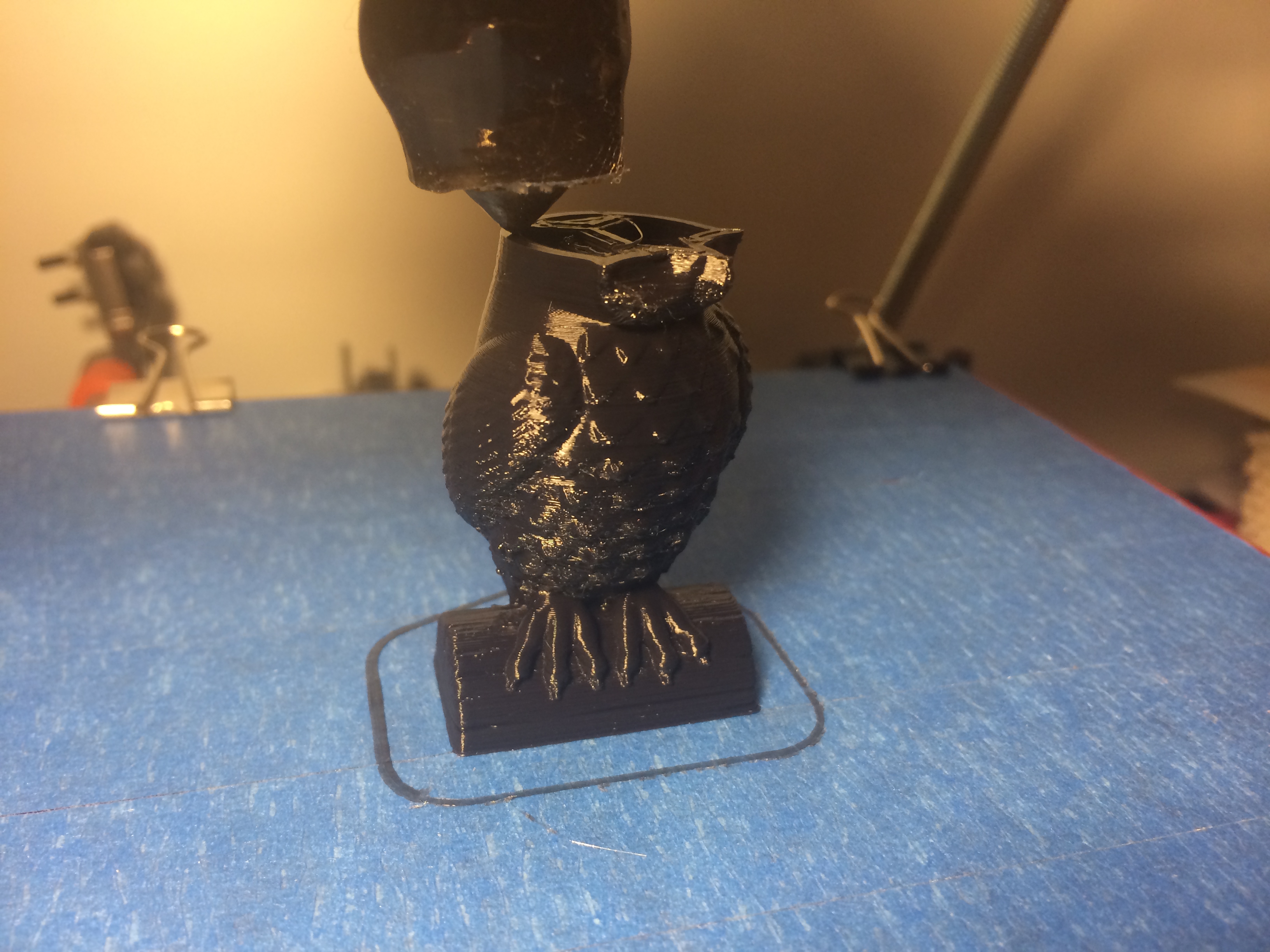

Stress Testing 3D Printer - Pushing Resolution to limits using Left-facing Owl from Thingiverse.
Stress Testing 3D Printer - Pushing Resolution to limits using Left-facing Owl from Thingiverse.

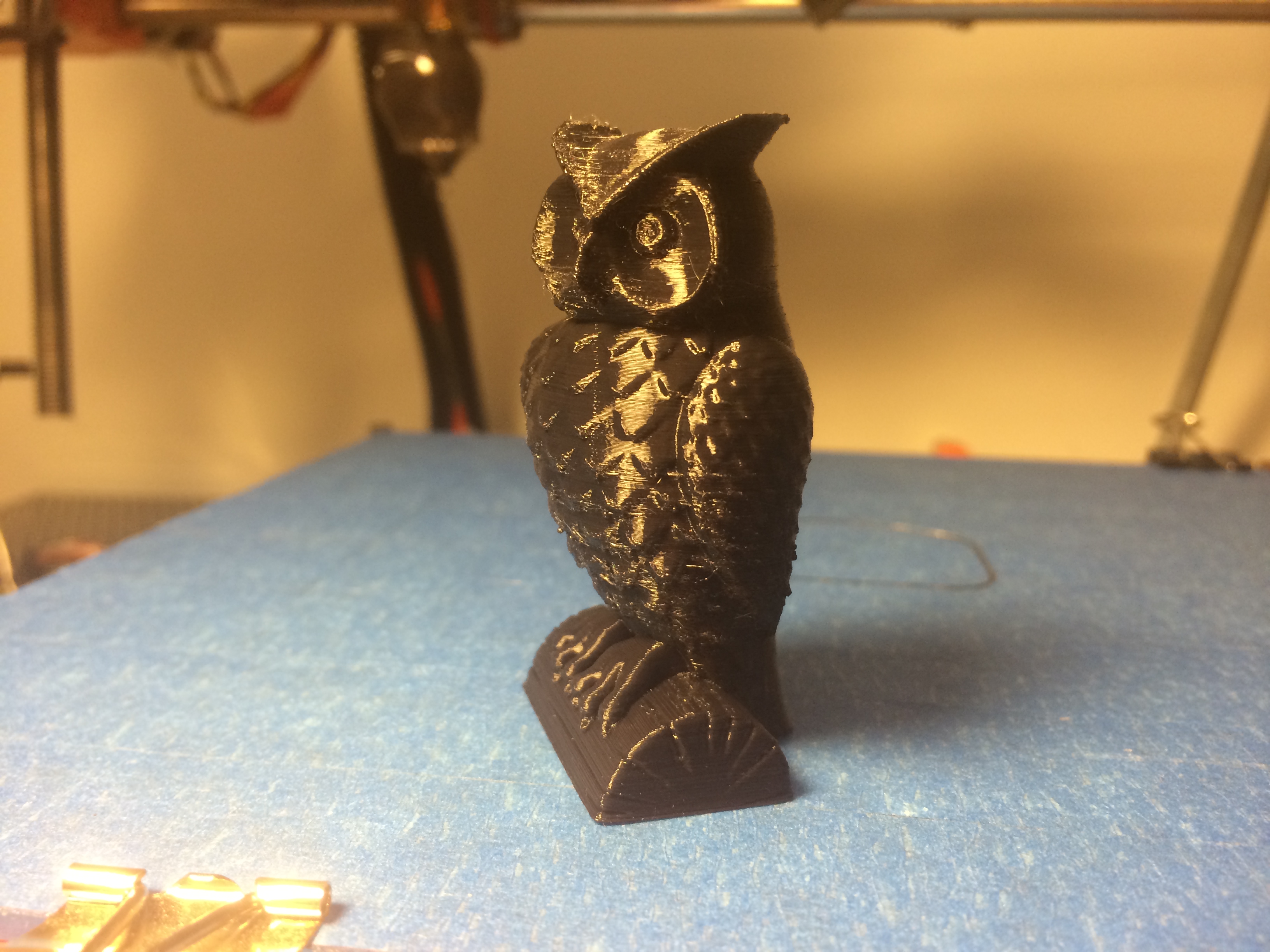

Left Facing Owl completed with great results.
Left Facing Owl completed with great results.

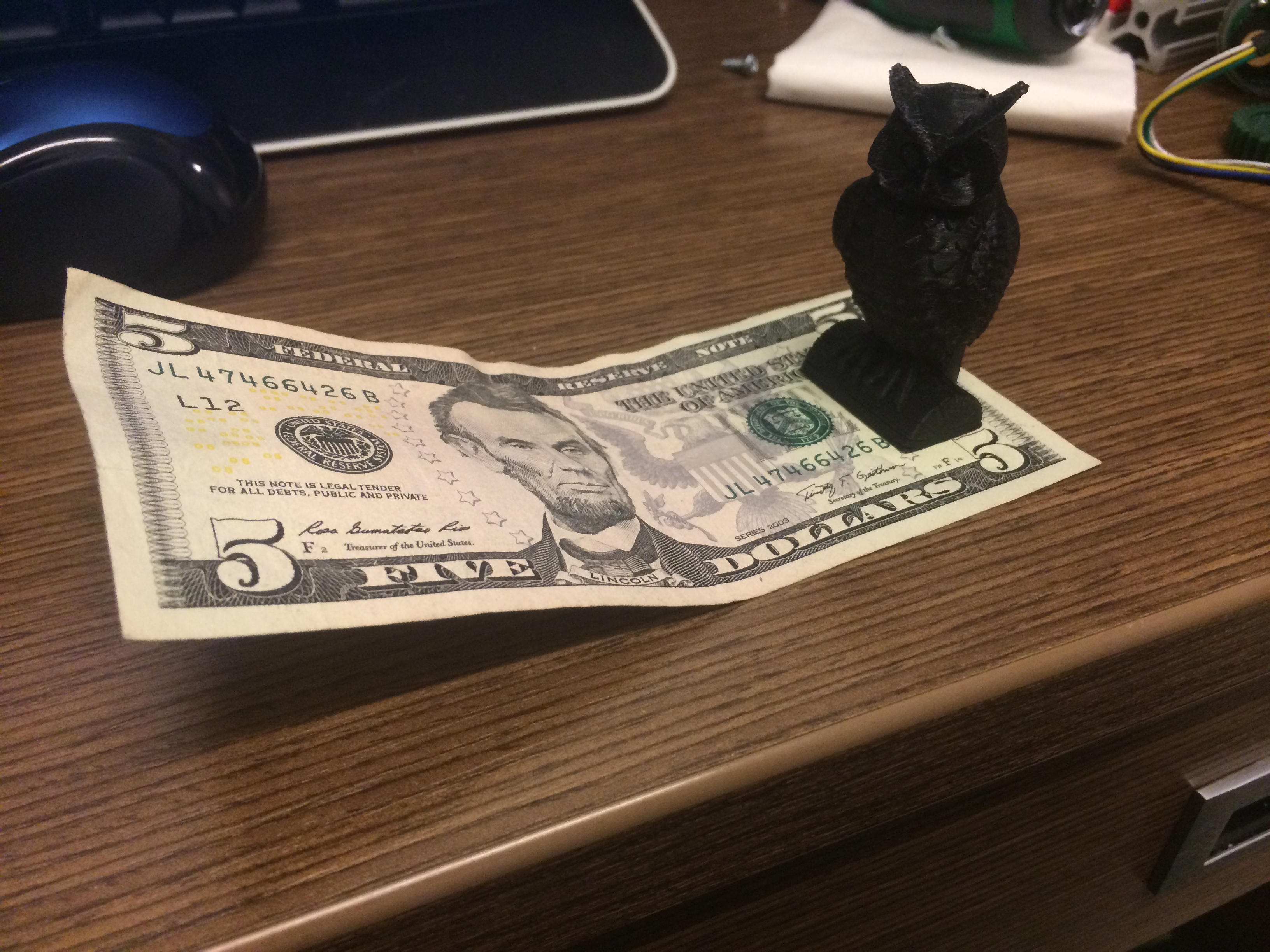

Owl on a $5 Bill for Size Comparison.
Owl on a $5 Bill for Size Comparison.

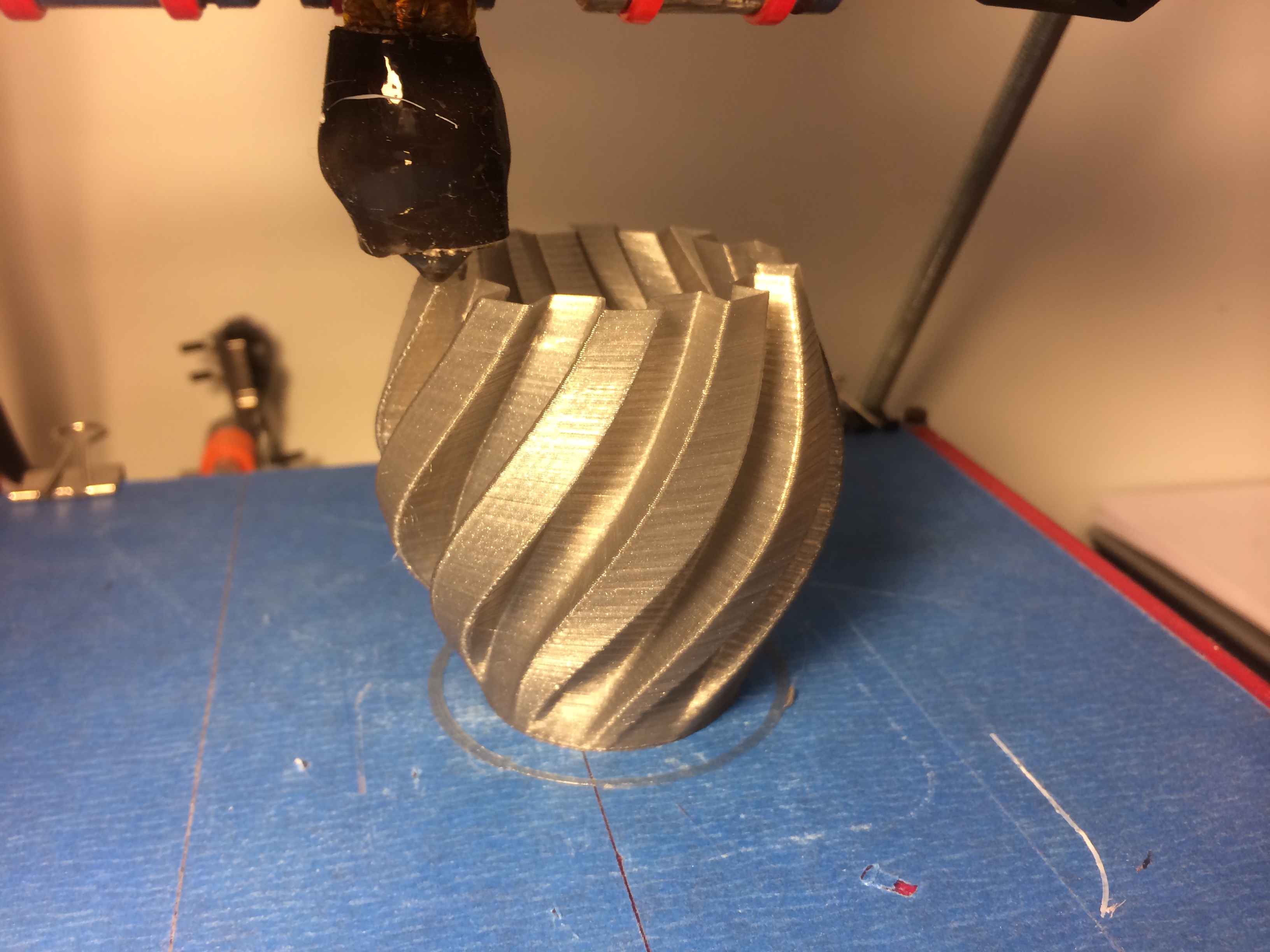

3D Printing a Spiral Vase using Continuously Incrementing Layers.
3D Printing a Spiral Vase using Continuously Incrementing Layers.
